Schiedel - universal chimney system Wulkan CI-Eko

Average grade: 0 / 0 reviews
A three-layer chimney system designed to work with heating devices for solid, liquid (fuel oil) and solid fuels (including wood, fine coal, pellets). For use inside and outside the building.

diameter

wariant

Save amount -
zł2,045.74 zł2,045.74
Tax included

Najniższa cena z ostatnich 30 dni: zł2,045.74 brutto. (zł1,663.20)

On product inquiry
cennikowa cena jednostkowa netto
zł2,700.00
za szt
cennikowa cena jednostkowa brutto
zł3,321.00
za szt
promocyjna cena jednostkowa netto
zł1,663.20
za szt
promocyjna cena jednostkowa brutto
zł2,045.74
za szt
całkowita cena cennikowa netto
zł2,700.00
za 1 szt
całkowita cena cennikowa brutto
zł3,321.00
za 1 szt
całkowita cena cennikowa netto
zł1,663.20
za 1 szt
całkowita cena cennikowa brutto
zł2,045.74
za 1 szt

Products description

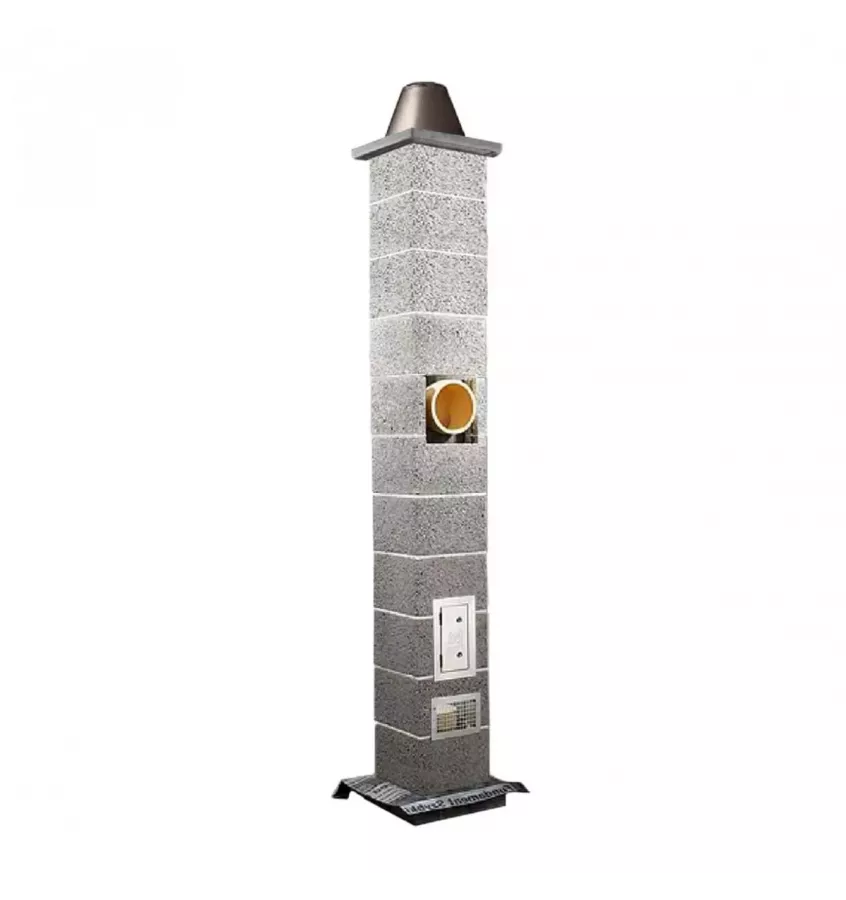

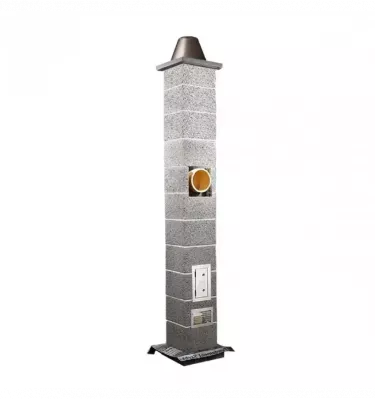

Three-layer chimney system with stabilization ceramic channel in the form of chimney wool in plates, which is intended for cooperation with heating devices for solid, liquid (heating oil) and solid fuels (including wood, fine coal, pellets) . Thanks to special cuts, it is possible to shape the insulation around the internal ceramic channel.

Characteristic

  • diameter 160 mm, 180 mm or 200 mm
  • external dimensions 360 x 360 mm
  • internal channels made of chamotte ceramics pressed under pressure, fired at 1200 C with a compressive strength of 25 MPa
  • hollow bricks made of aggregate concrete in the vibropress technology with a density of 1150 kg / m (Pv36)
  • working temperature from 80 C to 400 C
  • resistance to soot fire (thermal shock 1000 C in 30 min)
  • work in negative pressure (N1)
  • acid resistance
  • resistance to work in humid conditions
  • distance from flammable elements 50 mm
  • for indoor and outdoor use
  • easy and quick assembly

Possibility of chimney operation with low-temperature boilers (flue gas temperature <200 C) and solid fuel boilers, where the flue gas temperature is much higher - with the use of a condensate drainage element and ceramic fittings resistant to humid conditions.
