Schiedel - universal chimney system Wulkan CI-Eko with ventilation

Average grade: 0 / 0 reviews
A three-layer chimney system with ventilation, with the stabilization of ceramic channels in the form of chimney wool in plates, which is intended for cooperation with heating devices for solid, liquid (fuel oil) and solid fuels (including wood, fine coal, pellets). There is a single ventilation duct in the hollow brick of the casing, which allows the exhaust air to be removed from the room. For indoor and outdoor use.

diameter

wariant

Save amount -
zł2,098.86 zł2,098.86
Tax included

Najniższa cena z ostatnich 30 dni: zł2,098.86 brutto. (zł1,706.39)

On product inquiry
cennikowa cena jednostkowa netto
zł2,683.00
za szt
cennikowa cena jednostkowa brutto
zł3,300.09
za szt
promocyjna cena jednostkowa netto
zł1,706.39
za szt
promocyjna cena jednostkowa brutto
zł2,098.86
za szt
całkowita cena cennikowa netto
zł2,683.00
za 1 szt
całkowita cena cennikowa brutto
zł3,300.09
za 1 szt
całkowita cena cennikowa netto
zł1,706.39
za 1 szt
całkowita cena cennikowa brutto
zł2,098.86
za 1 szt

Products description

Three-layer chimney system with ventilation, with stabilization a ceramic channel in the form of chimney wool in plates, which is intended for cooperation with heating devices using solid, liquid (fuel oil) and solid fuels (e.g. wood, fine coal, coal) , pellets). Thanks to special cuts, it is possible to shape the insulation around the internal ceramic channel. There is a single ventilation duct in the hollow brick of the casing, which allows the exhaust air to be removed from the room.

Characteristic

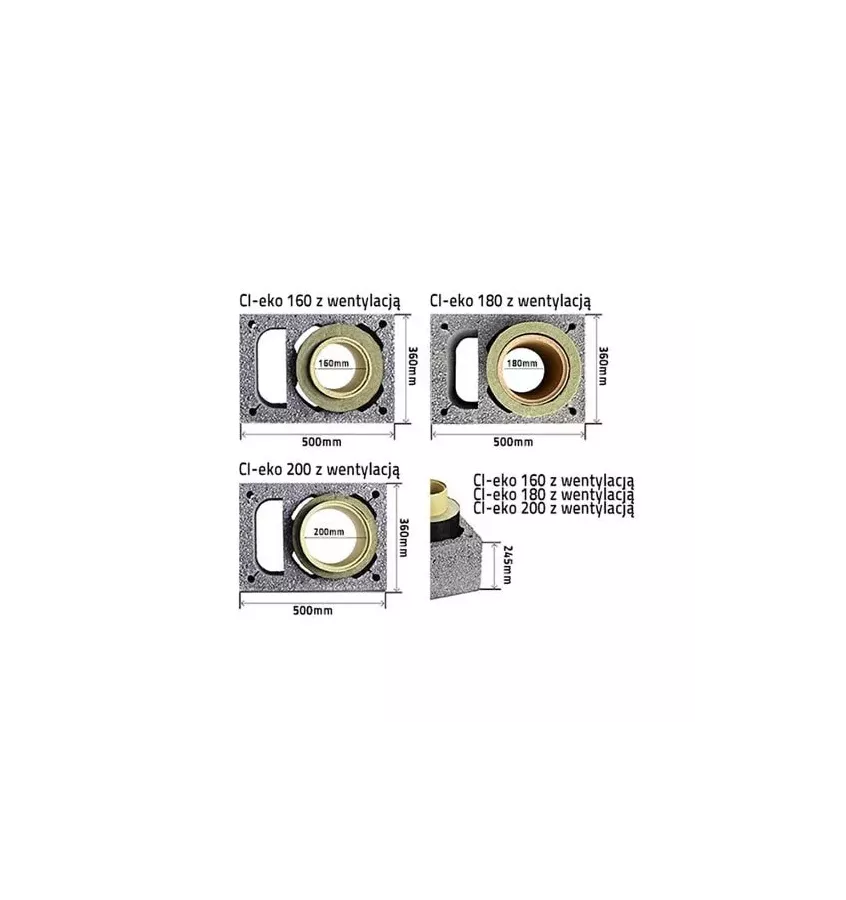

  • 160 mm, 180 mm or 200 mm diameter
  • external dimensions 360 x 500 mm
  • internal channels made of chamotte ceramics pressed under pressure, fired at 1200 C with a compressive strength of 25 MPa
  • hollow casing made of aggregate concrete in vibropress technology with a density of 1150 kg / m (Pv50-eco), with an integrated ventilation duct with internal dimensions of 100 x 260 mm
  • working temperature from 80 C to 400 C
  • resistance to soot fire (thermal shock 1000 C in 30 min)
  • work in negative pressure (N1)
  • acid resistance
  • resistance to work in humid conditions
  • distance from flammable elements 50 mm
  • for indoor and outdoor use
  • easy and quick assembly

Possibility of chimney operation with low-temperature boilers (flue gas temperature <200 C) and solid fuel boilers, where the flue gas temperature is much higher - with the use of a condensate drainage element and ceramic fittings resistant to humid conditions.
