Jawar - chimney system for solid fuels and compact condensing boilers with ventilation

Average grade: 0 / 0 reviews

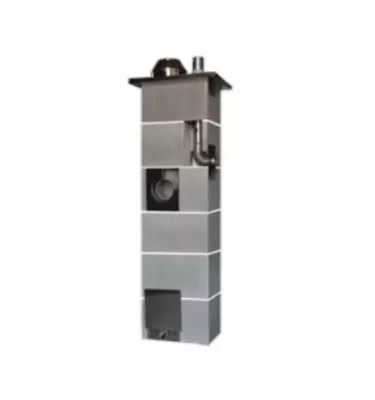

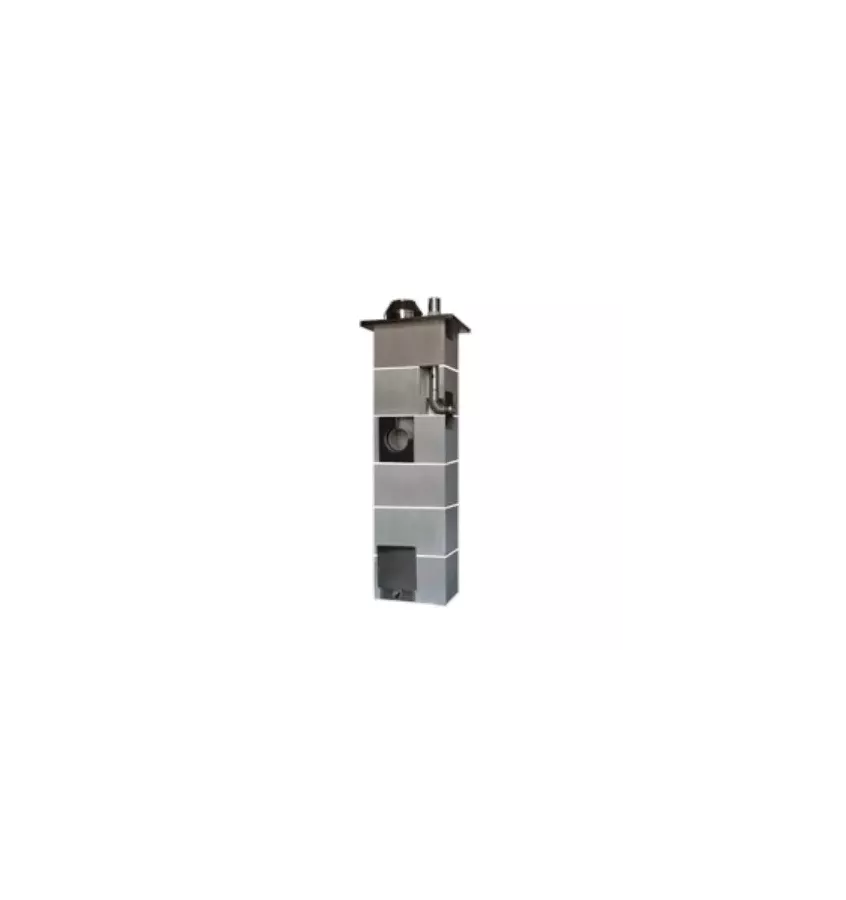

Jawar Kompakt with ventilation is a two-draft, ceramic and steel chimney system for solid fuels and condensing boilers.

diameter

wariant

Save amount -
zł2,749.07 zł2,749.07
Tax included

Najniższa cena z ostatnich 30 dni: zł2,749.07 brutto. (zł2,235.02)

On product inquiry
cennikowa cena jednostkowa netto
zł3,146.00
za szt
cennikowa cena jednostkowa brutto
zł3,869.58
za szt
promocyjna cena jednostkowa netto
zł2,235.02
za szt
promocyjna cena jednostkowa brutto
zł2,749.07
za szt
całkowita cena cennikowa netto
zł3,146.00
za 1 szt
całkowita cena cennikowa brutto
zł3,869.58
za 1 szt
całkowita cena cennikowa netto
zł2,235.02
za 1 szt
całkowita cena cennikowa brutto
zł2,749.07
za 1 szt

Products description

Jawar Kompakt is a two-draft ceramic-steel chimney system with a duct for discharging flue gases from traditional equipment and a conduit for condensing boilers. The system includes a ventilation duct for removing used air from the room (boiler room). The ceramic part - the smoke duct - enables flue gases from all types of equipment to be removed in fuels. The steel part - the flue - is used to remove fumes from gas and oil furnaces, both condensing and Turbo.

Technical data

  • work in the temperature range from 60 C to 600 C - smoke duct; from 30 C to 200 C - flue gas duct
  • the possibility of working in hypertension up to 200 Pa
  • possibility of cooperation with low-temperature condensing boilers with closed combustion chamber
  • with ventilation system
  • mineral wool insulation
  • lightweight hollow concrete blocks
  • internal channel flow resistance 0.0015 m
  • diameters from fi 16 + W to fi 20 + W
  • isostatic ceramics
  • resistance to thermal shocks
  • Soot fire resistance (1000 C)
  • moisture and condensate resistance
  • low water absorption
  • low heat capacity
  • light weight and dimensions
  • wet and dry operation (dry and wet exhaust)
  • tightness class N1
  • welding technology in the flue - plasma
  • CE marked chimney system in accordance with EN 13063-1, EN 13063-2, EN 13063-330 years warranty

Building

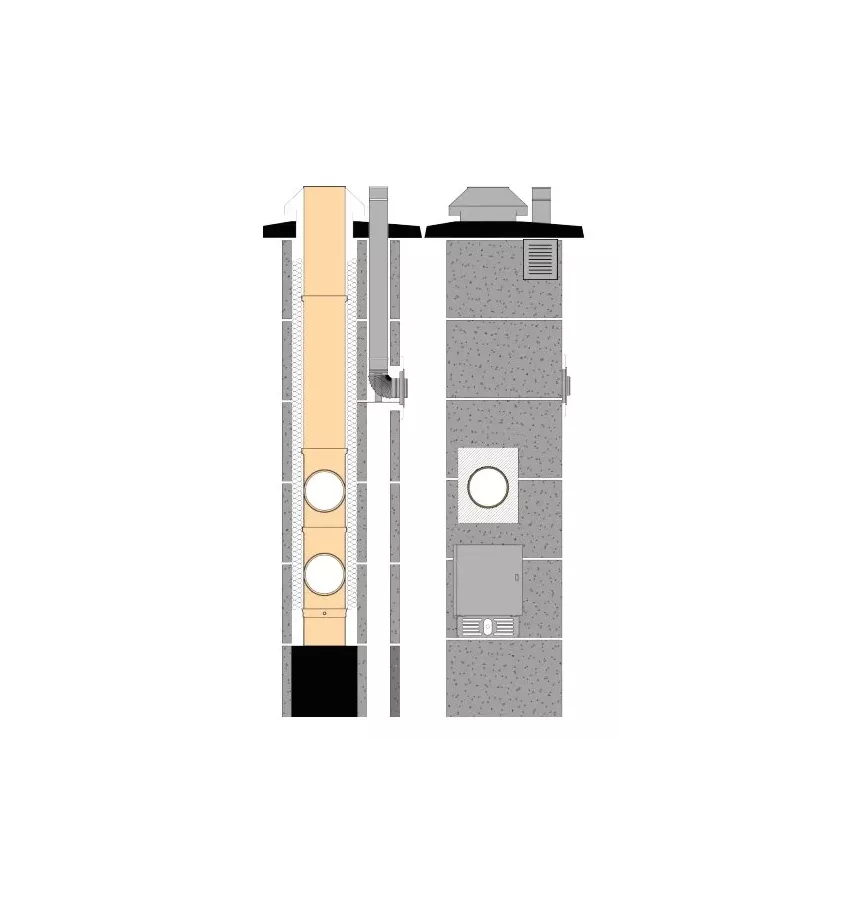

Schemat KOMPAKT z wentylacją

The Jawar Kompakt system is based on two systems: Jawar Universal Plus and acid-resistant steel inserts. The whole is enclosed with a uniform perlite concrete block with a ventilation duct. The system includes ceramic pipes and fittings produced in isostatic pressing technology. The condensate formed in the chimney is completely discharged into the boiler for further heat recovery, which improves the efficiency of the heating device.

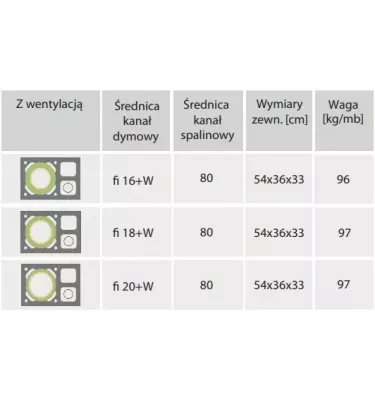

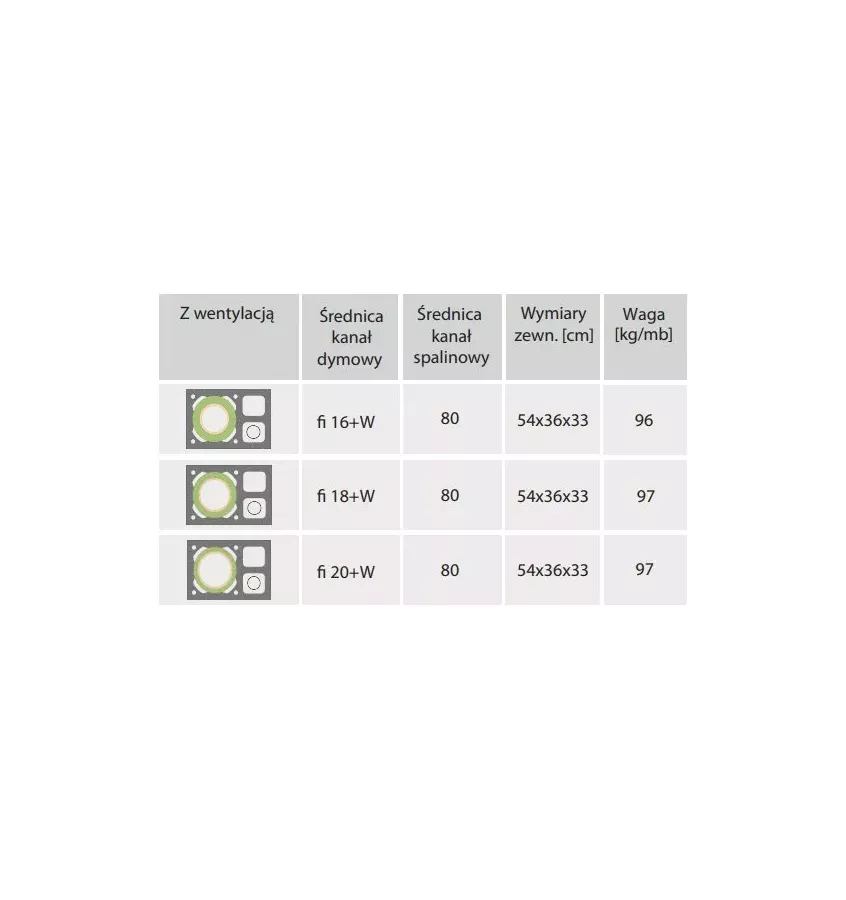

Wymiary KOMPAKT z wentylacją
