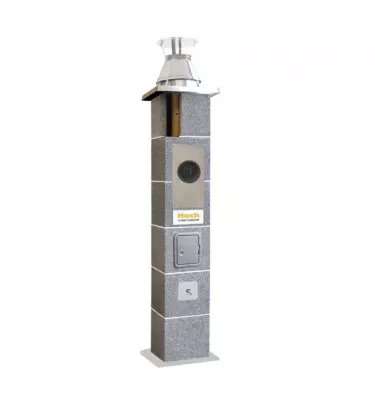

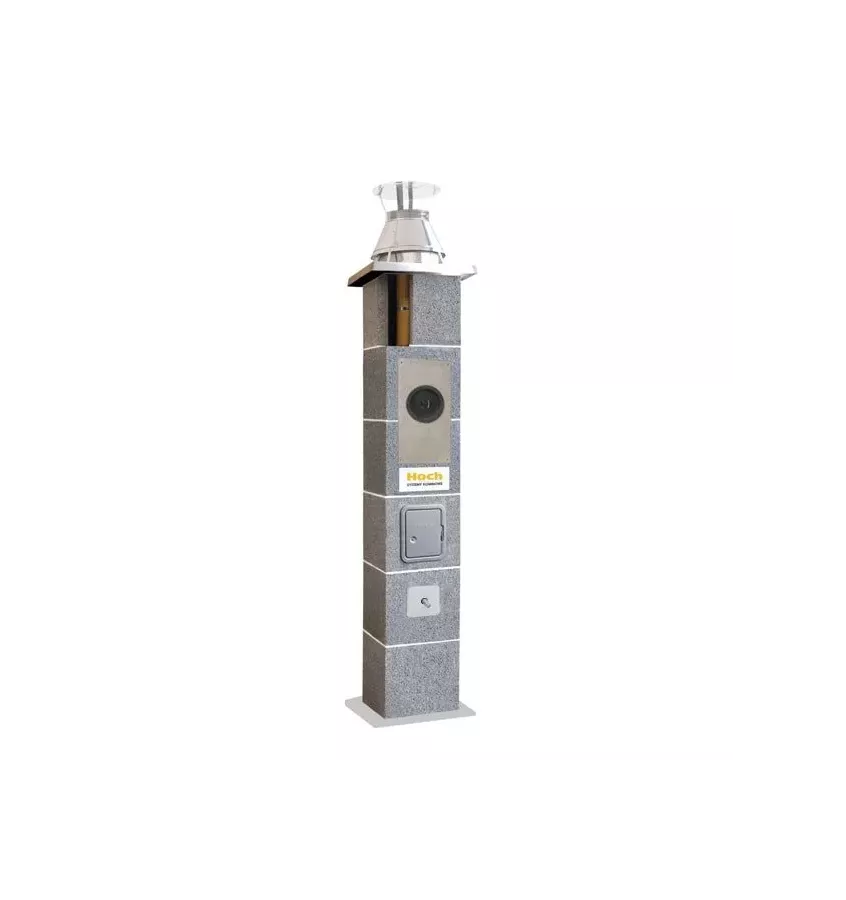

Hoch - Keramik S smoke chimney system

Name: Hoch - Keramik S smoke chimney system
Brand: Hoch
Price: 2105.75 PLN
Availability: InStock

Average grade: 0 / 0 reviews

The Hoch Keramik system is an air-flue chimney system that is designed to remove flue gas from modern furnaces with a closed combustion chamber.

diameter

wariant

Save amount -

zł2,105.75 zł2,105.75

Tax included

Najniższa cena z ostatnich 30 dni: zł2,105.75 brutto. (zł1,711.99)

On product inquiry

cennikowa cena jednostkowa netto

zł2,830.00

za szt

cennikowa cena jednostkowa brutto

zł3,480.90

za szt

promocyjna cena jednostkowa netto

za szt

promocyjna cena jednostkowa brutto

za szt

całkowita cena cennikowa netto

zł2,830.00

za 1 szt

całkowita cena cennikowa brutto

zł3,480.90

za 1 szt

całkowita cena cennikowa netto

za 1 szt

całkowita cena cennikowa brutto

za 1 szt

Products description

The Hoch Keramik system is an air-flue chimney system that is designed to remove flue gas from modern furnaces with a closed combustion chamber - both condensing and TURBO.

Technical data

smoke chimney
possibility of working at overpressure up to 200 Pa
exhaust gas temperature at the boiler outlet must not exceed 200 ° C
dimensions: 36 x 36 x 33 cm
available diameters from 120 to 300 fi
system compliant with EN 13063-2, EN 13063-3

The air supplying the combustion chamber is led through the chimney casing, with a stream opposite to the gas in the flue gas. As a result, the air supplied to the furnace from the chimney top is heated and energy losses are reduced, while the efficiency of the connected heating devices increases. The exhaust fumes are discharged through the ceramic pipe.

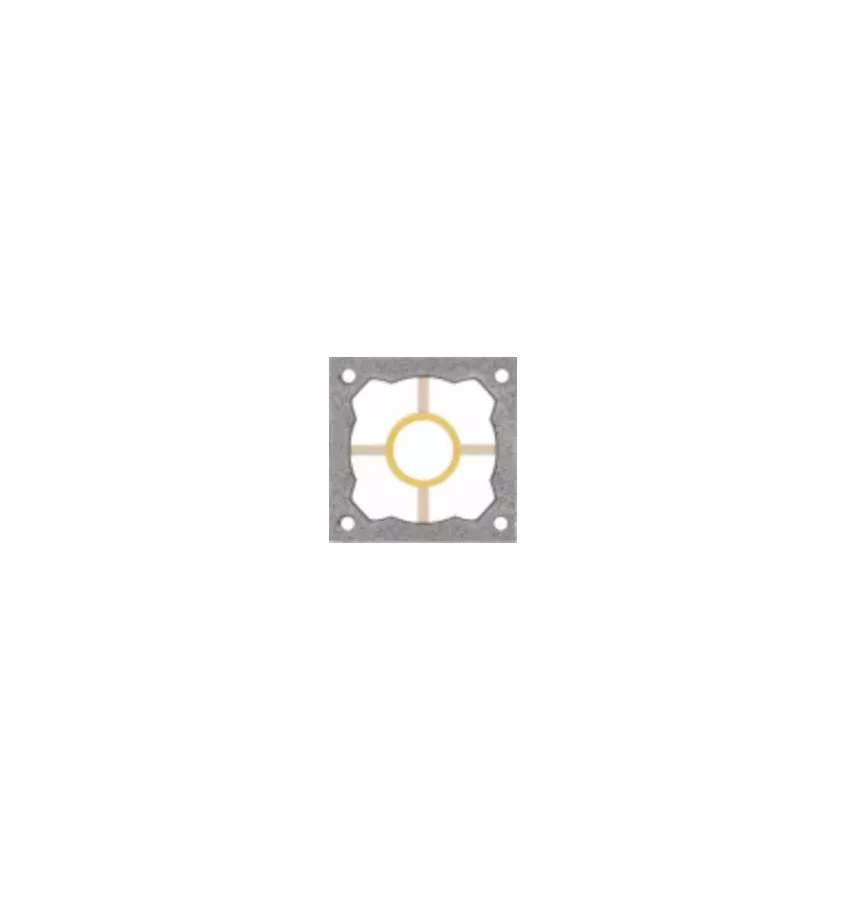

Schemat Keramik S
