Jawar - chimney system for all types of Universal Plus fuel with double ventilation

Average grade: 0 / 0 reviews
Jawar Universal Plus with double ventilation is a three-layer chimney for all fuels with isostatic ceramics

diameter

wariant

Save amount -
zł2,030.10 zł2,030.10
Tax included

Najniższa cena z ostatnich 30 dni: zł2,030.10 brutto. (zł1,650.49)

On product inquiry
cennikowa cena jednostkowa netto
zł2,400.00
za szt
cennikowa cena jednostkowa brutto
zł2,952.00
za szt
promocyjna cena jednostkowa netto
zł1,650.49
za szt
promocyjna cena jednostkowa brutto
zł2,030.10
za szt
całkowita cena cennikowa netto
zł2,400.00
za 1 szt
całkowita cena cennikowa brutto
zł2,952.00
za 1 szt
całkowita cena cennikowa netto
zł1,650.49
za 1 szt
całkowita cena cennikowa brutto
zł2,030.10
za 1 szt

Products description

Jawar Uniwersal Plus is a three-layer chimney with isostatic ceramics, designed for removing flue gases from boilers fired with various types of fuels: natural gas, heating oil, wood, coal, pellets, eco-pea coal and other solid fuels. It can work at high gas temperatures in the outlet, with low-temperature, condensing boilers (in the case of silicone bonding), as well as with traditional devices and with a closed combustion chamber.

Technical data

  • designed for removing flue gases in the temperature range from 60 C to 600 C
  • entire chimney insulation
  • lightweight hollow concrete blocks
  • internal channel flow resistance 0.0015 m
  • isostatic ceramics
  • resistance to thermal shocks
  • Soot fire resistance (1000 C)
  • corrosion and condensate resistance (W3)
  • low water absorption
  • low heat capacity
  • wet and dry operation (dry and wet exhaust)
  • high tightness of pipe connections thanks to socket connection (class N1)
  • chimney system with CE marking in accordance with EN 13063-1, EN 13063-2, EN 13063-3
  • 30 years warranty

Building

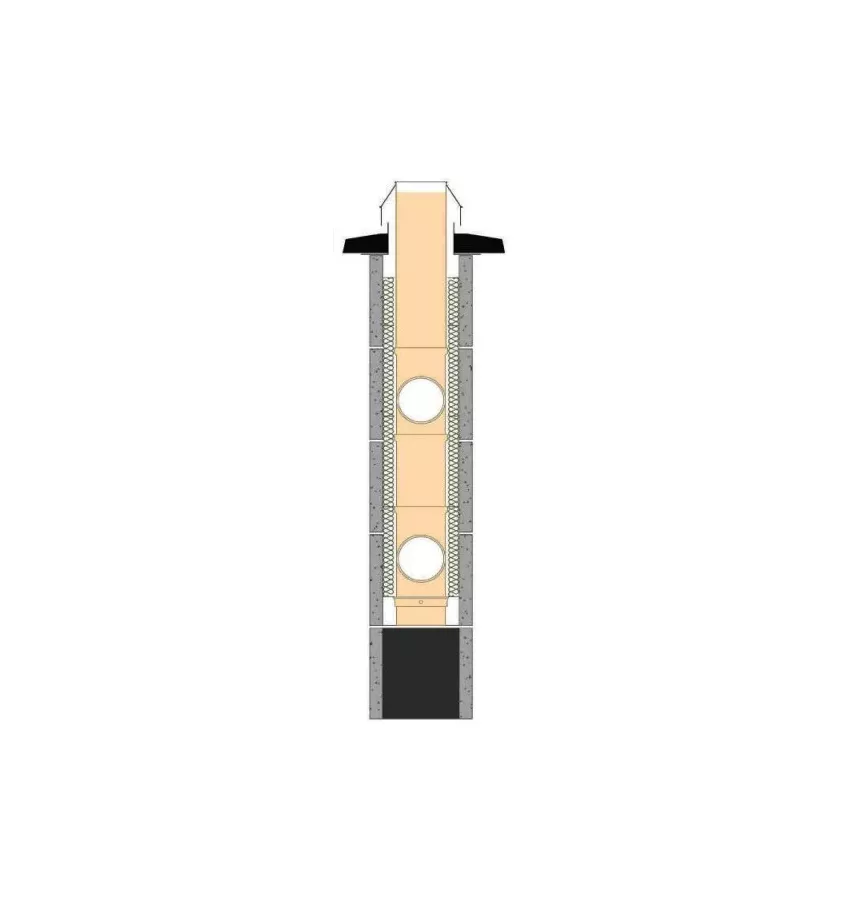

Schemat Uniwersal Plus

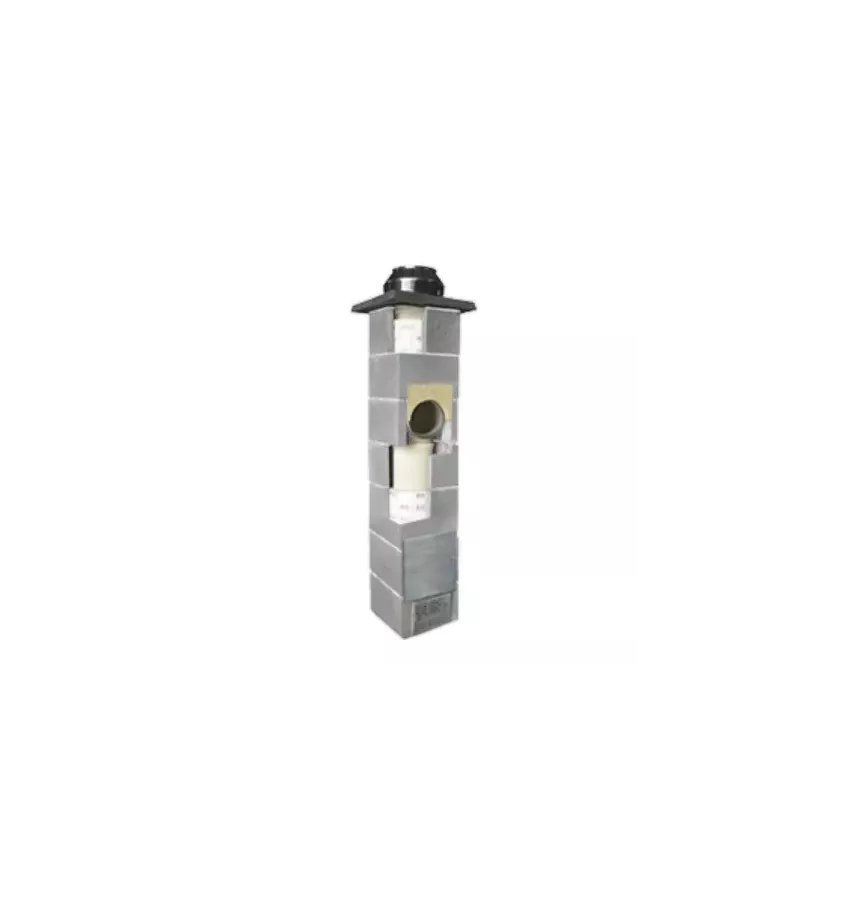

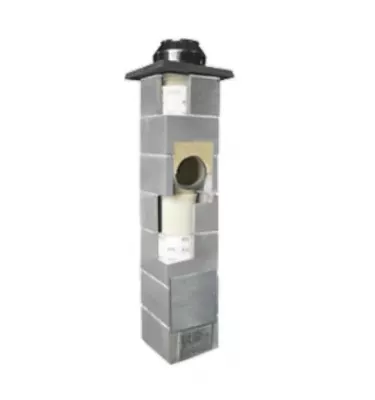

The Universal Plus chimney system consists of ceramic pipes and fittings, a lightweight perlite concrete block and mineral wool insulation. The round profiled ceramic pipe is made by isostatic pressing. Possibility of additional cover plate purchase.

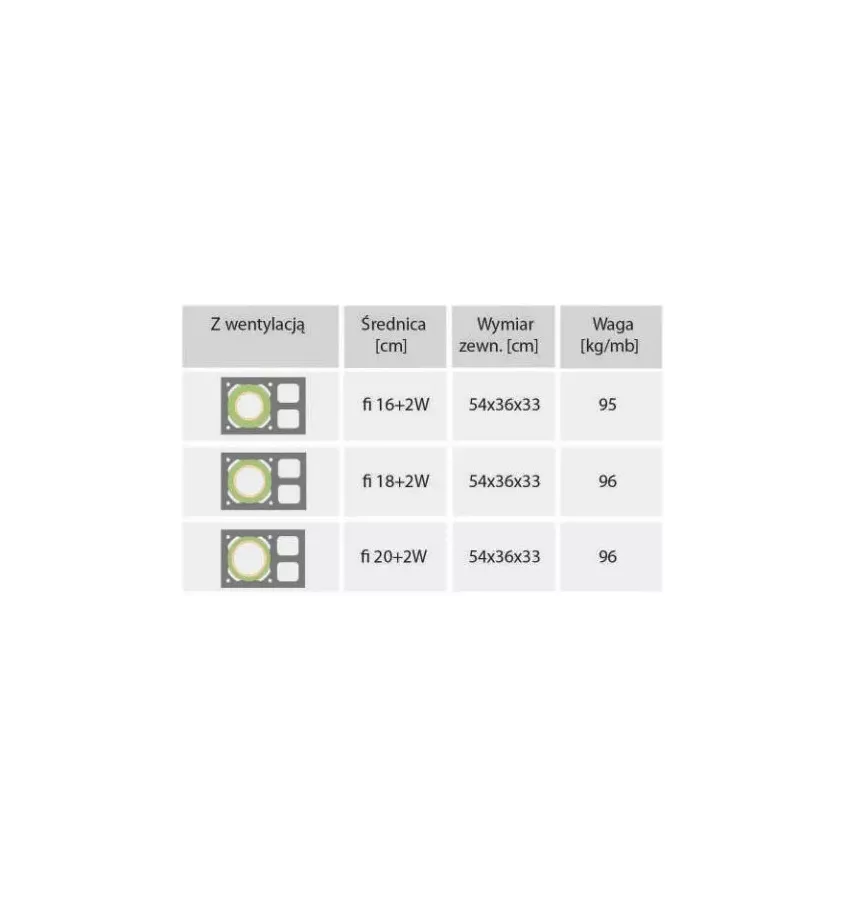

Parametry Uniwersal Plus z podw jną wentylacją
