Konbet - Vector panel ceiling system

Average grade: 0 / 0 reviews

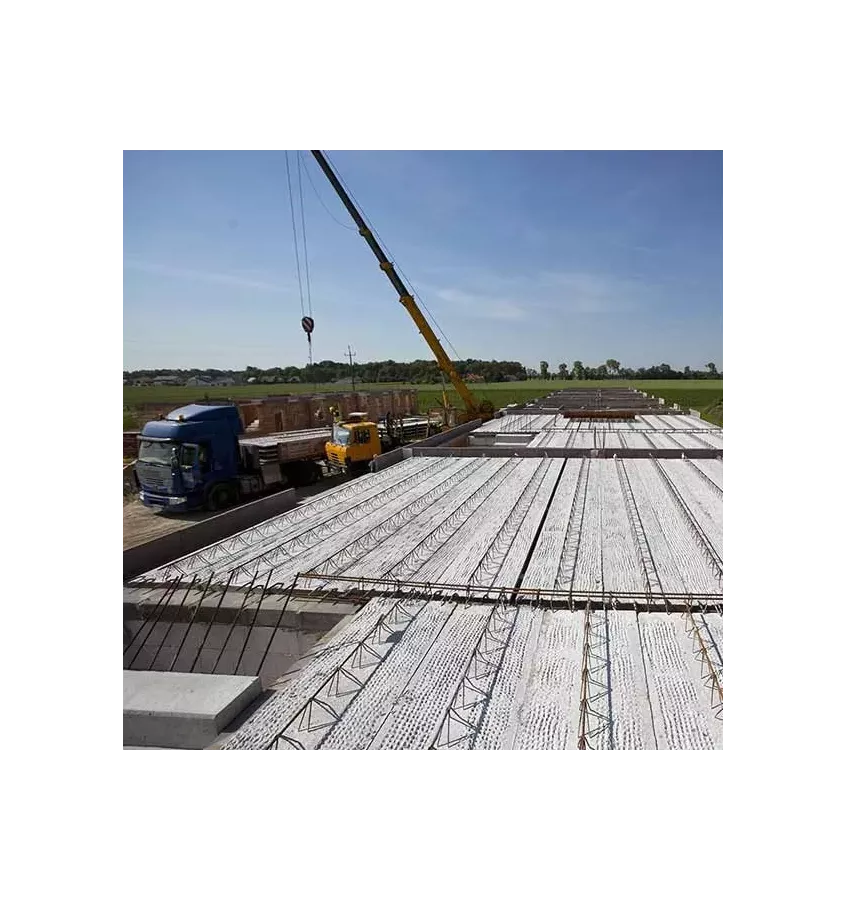

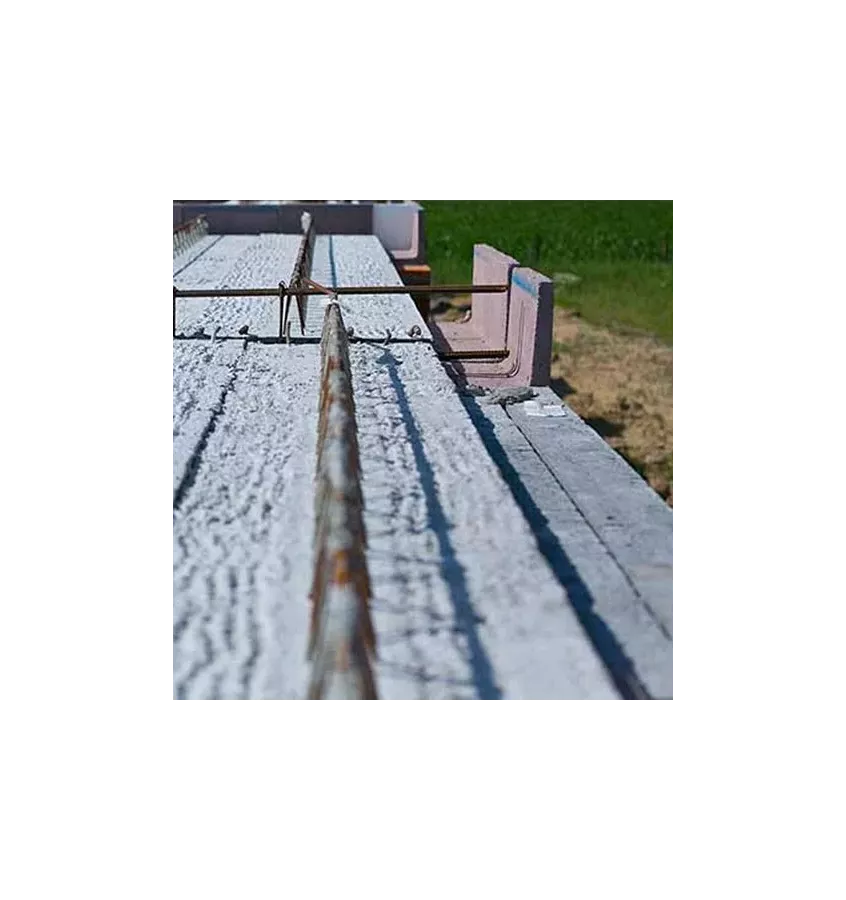

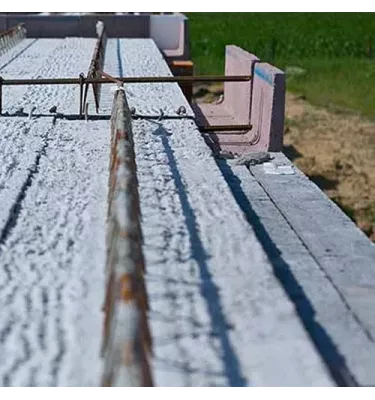

The combination of the best features of popular ceiling systems while eliminating their shortcomings. The base of the ceiling is a thin prefabricated reinforced concrete slab, 60 cm wide and 4 cm thick, with partially concreted spatial trusses and the main reinforcement, which is parallel to the truss direction. On its upper surface, there is a layer that strengthens the connections between individual elements and increases the adhesion of structural concrete.
On product inquiry
cennikowa cena jednostkowa netto
zł0.01
za zestaw
cennikowa cena jednostkowa brutto
zł0.01
za zestaw
promocyjna cena jednostkowa netto
zł0.01
za zestaw
promocyjna cena jednostkowa brutto
zł0.01
za zestaw
całkowita cena cennikowa netto
zł0.01
za 1 zestaw
całkowita cena cennikowa brutto
zł0.01
za 1 zestaw
całkowita cena cennikowa netto
zł0.01
za 1 zestaw
całkowita cena cennikowa brutto
zł0.01
za 1 zestaw

Products description

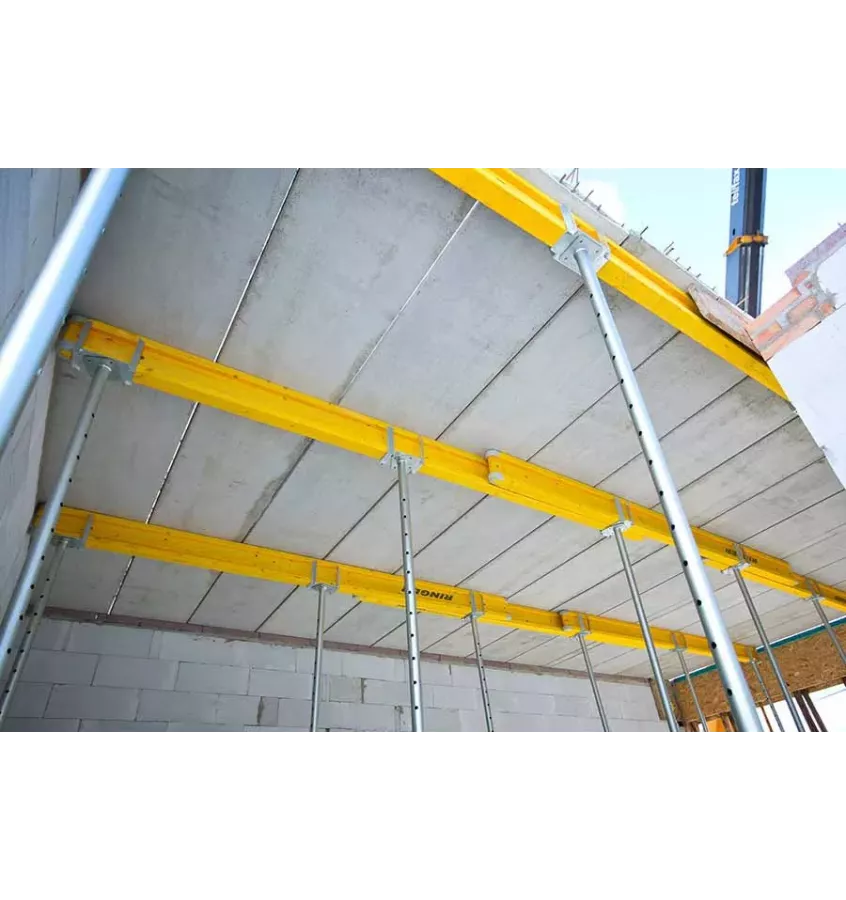

The combination of the best features of the popular ceiling systems while eliminating their drawback. The base of the ceiling is a thin prefabricated reinforced concrete slab, 60 cm wide and 4 cm thick, with partially concreted spatial trusses and the main reinforcement parallel to the truss direction . On its upper surface there is a layer that strengthens the connections between individual elements and increases the adhesion of structural concrete. This type of ceiling is used in small and large single-family houses, multi-storey apartment blocks, semi-detached houses and terraced houses.

Features

  • quick montage
  • low cost of the ceiling
  • the possibility of hiding the installation in the ceiling
  • great sound insulation
  • r different bottom surface
  • lack of abundant upper reinforcement

Application

SBN prestressed concrete lintels are characterized by high functionality and easy assembly. They are used as closing elements for window and door openings in the construction of walls, but also in the case of vaults, openings in door partition walls. SBN lintels eliminate the need to pour beams, speeding up the construction process.

Ring beams (shuttering blocks) are an element system in the formwork of a lowered rim. It includes elements that allow one-sided and two-sided support of the ceiling in the case of internal and external walls (L, C or U type). The use of fittings will eliminate additional construction works related to formwork, which facilitates and speeds up the work. Due to their different surface, they ensure even load distribution and improve the aesthetics of the rim.

Technical data

  • ceiling span up to 7.8 m
  • construction height 15, 18, 20, 24 cm
  • panel width 60 cm
  • panel height 14 cm
  • fire resistance REI 60
  • acoustics 58.4 dB for 24 cm

Valuation based on the submitted project.
