Ecophon - Gedina E, ceiling tiles, 20 mm thick
Ecophon - Gedina E, ceiling tiles, 20 mm thick

Ecophon - Gedina E, ceiling tiles, 20 mm thick

Average grade: 0 / 0 reviews

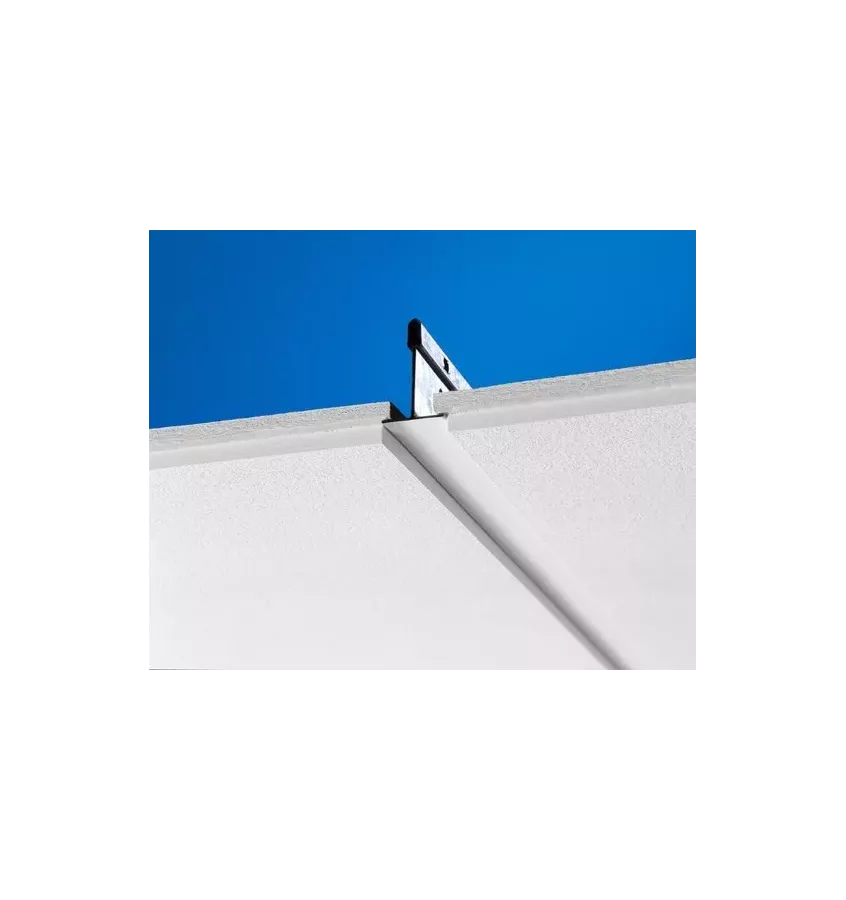

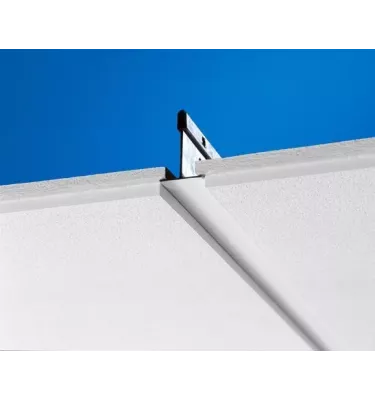

Unassembled, easy to disassemble a standard suspended ceiling that meets high functional requirements. Properly formed edges of Gedina E panels provide a shadow effect, which causes the supporting structure to be partially masked. The visible surface of Gedina boards is lowered by 7 mm relative to the construction. Individual Ecophon Gedina E boards emphasize this impression. The system consists of Ecophon Gedina E boards and Ecophon Connect supporting structure with a total approximate weight of 2.5 kg / m2. The boards are made of high density glass wool. The visible surface has an Akutex T coating, the back surface is protected with a glass veil. The edges are reinforced and painted. The supporting structure is made of galvanized powder-coated steel.
On product inquiry
cennikowa cena jednostkowa netto
zł0.01
za szt
cennikowa cena jednostkowa brutto
zł0.01
za szt
promocyjna cena jednostkowa netto
zł0.01
za szt
promocyjna cena jednostkowa brutto
zł0.01
za szt
całkowita cena cennikowa netto
zł0.01
za 1 szt
całkowita cena cennikowa brutto
zł0.01
za 1 szt
całkowita cena cennikowa netto
zł0.01
za 1 szt
całkowita cena cennikowa brutto
zł0.01
za 1 szt

Products description

Price per m2 on request.

Ceiling tiles.

Application:
Unassembled, easy to disassemble a standard suspended ceiling that meets high functional requirements. Properly formed edges of Gedina E panels ensure the creation of a shadow effect that causes the load-bearing structure to be partially masked. The visible surface of Gedina boards is lowered by 7 mm relative to the construction. Individual Ecophon Gedina E boards emphasize this impression. The system consists of Ecophon Gedina E boards and Ecophon Connect supporting structure with a total approximate weight of 2.5 kg / m2. The boards are made of high density glass wool. The visible surface has an Akutex T coating, the back surface is protected with a glass veil. The edges are reinforced and painted. The supporting structure is made of galvanized powder-coated steel.

Technical data:
- dimensions: 600x600 mm, 1200x600 mm, 1200x1200 mm, thickness 15 mm,
- sound absorption class: A (for a total construction height of 110 mm and 200 mm), B (for a total construction height of 80 mm), C (for a total construction height of 60 mm),
- insulation: Dn, c, w = 20 dB,
- 500 white plates (the nearest color according to NCS: S 0500-N) have 84% light reflection (of which over 99% is diffused light),
- they withstand constant relative humidity of up to 95% at 30 ° C without sagging, warping or delaminating,
- recyclable, environmentally friendly,
- they are non-flammable according to EN ISO 1182 testing and classification,
- maximum payload: 50 N,
- available colors: on request.
