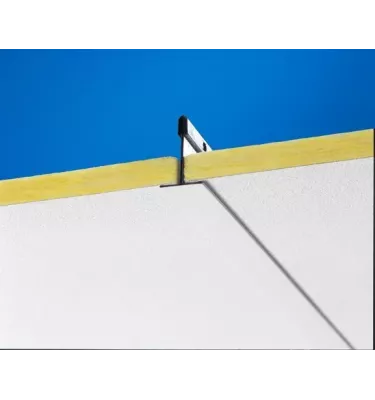

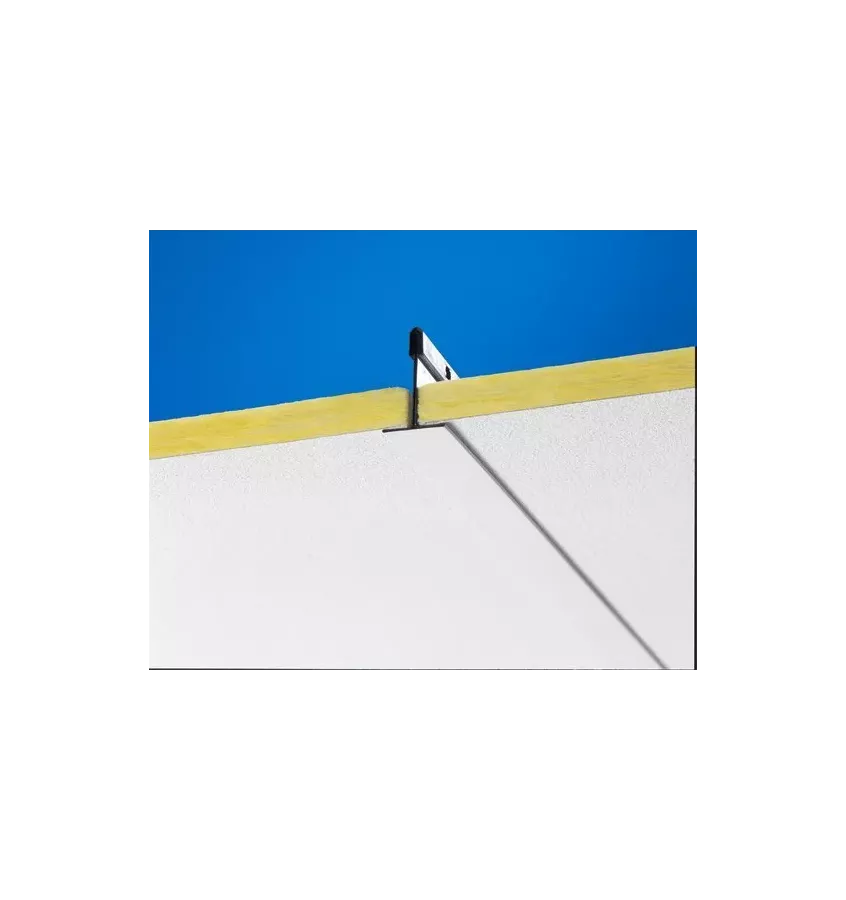

Ecophon - Gedina A, ceiling tiles, 20 mm thick
Ecophon - Gedina A, ceiling tiles, 20 mm thick

Ecophon - Gedina A, ceiling tiles, 20 mm thick

Average grade: 0 / 0 reviews
Unassembled, easy to disassemble a standard suspended ceiling that meets high functional requirements. Ecophon Gedina A boards are mounted on a visible supporting structure. Each plate can be removed. The system consists of Ecophon Gedina A boards and Ecophon Connect supporting structure with a total approximate weight of 2.5 kg / m2. The boards are made of high density glass wool. The visible surface has an Akutex® T coating, the back surface is covered with glass veil. Gedina A boards are also available with primed edges. The supporting structure is made of galvanized painted steel.
On product inquiry
cennikowa cena jednostkowa netto
zł0.01
za szt
cennikowa cena jednostkowa brutto
zł0.01
za szt
promocyjna cena jednostkowa netto
zł0.01
za szt
promocyjna cena jednostkowa brutto
zł0.01
za szt
całkowita cena cennikowa netto
zł0.01
za 1 szt
całkowita cena cennikowa brutto
zł0.01
za 1 szt
całkowita cena cennikowa netto
zł0.01
za 1 szt
całkowita cena cennikowa brutto
zł0.01
za 1 szt

Products description

Price per m2 on request.

Ceiling tiles.

Application:
Unassembled, easy to disassemble a standard suspended ceiling that meets high functional requirements. Ecophon Gedina A boards are mounted on a visible supporting structure. Each plate can be removed. The system consists of Ecophon Gedina A boards and Ecophon Connect supporting structure with a total approximate weight of 2.5 kg / m2. The boards are made of high density glass wool. The visible surface is coated with Akutex T, the back surface is covered with glass veil. Gedina A boards are also available with primed edges. The supporting structure is made of galvanized painted steel.

Technical data:
- dimensions: 600x600 mm, 1200x600 mm, 1200x1200 mm, thickness 15 mm,
- sound absorption class: A (for a total construction height of 90 mm and 200 mm), B (for a total construction height of 80 mm), C (for a total construction height of 50 mm),
- insulation: Dn, c, w = 18 dB,
- 500 white plates (the nearest color according to NCS: S 0500-N) have 84% light reflection (of which over 99% is diffused light),
- they withstand constant relative humidity of up to 95% at 30 ° C without sagging, warping or delaminating,
- recyclable, environmentally friendly,
- they are non-flammable according to EN ISO 1182 testing and classification,
- maximum payload: 50 N,
- available colors: on request.
