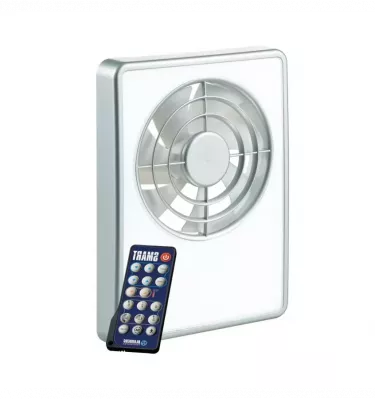

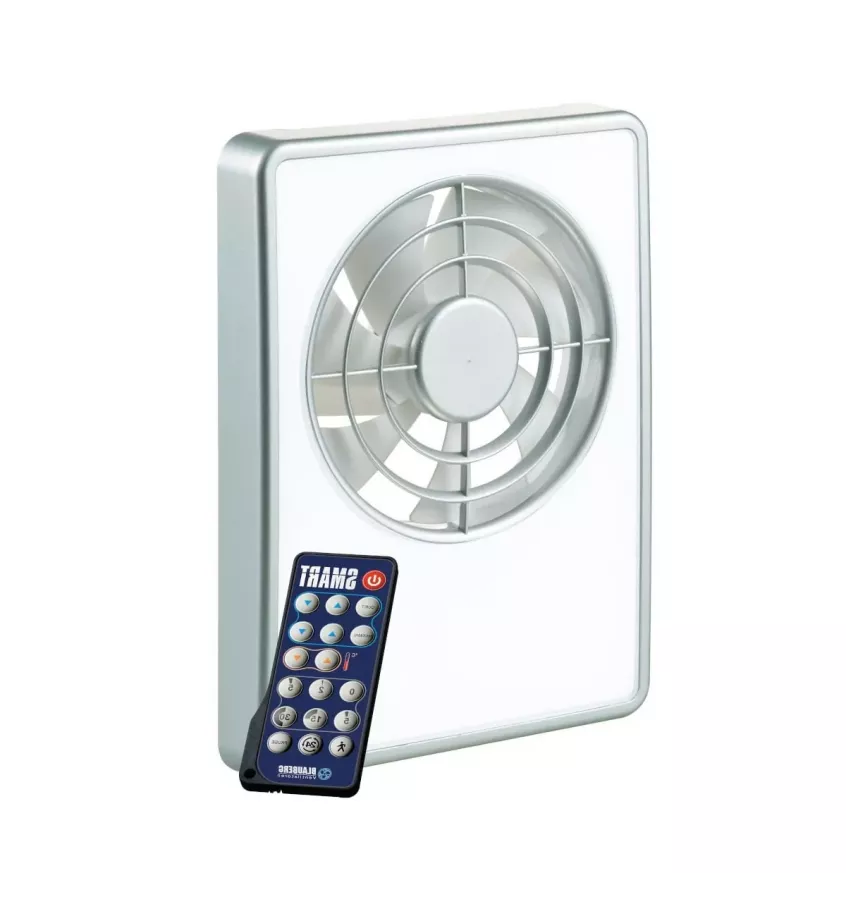

Blauberg - intelligent exhaust fan with an operation mode programmer, remote control and Smart IR motion sensor

Smart IR is a smart fan with an operation mode programmer and remote control. It has an exhaust function in living quarters.

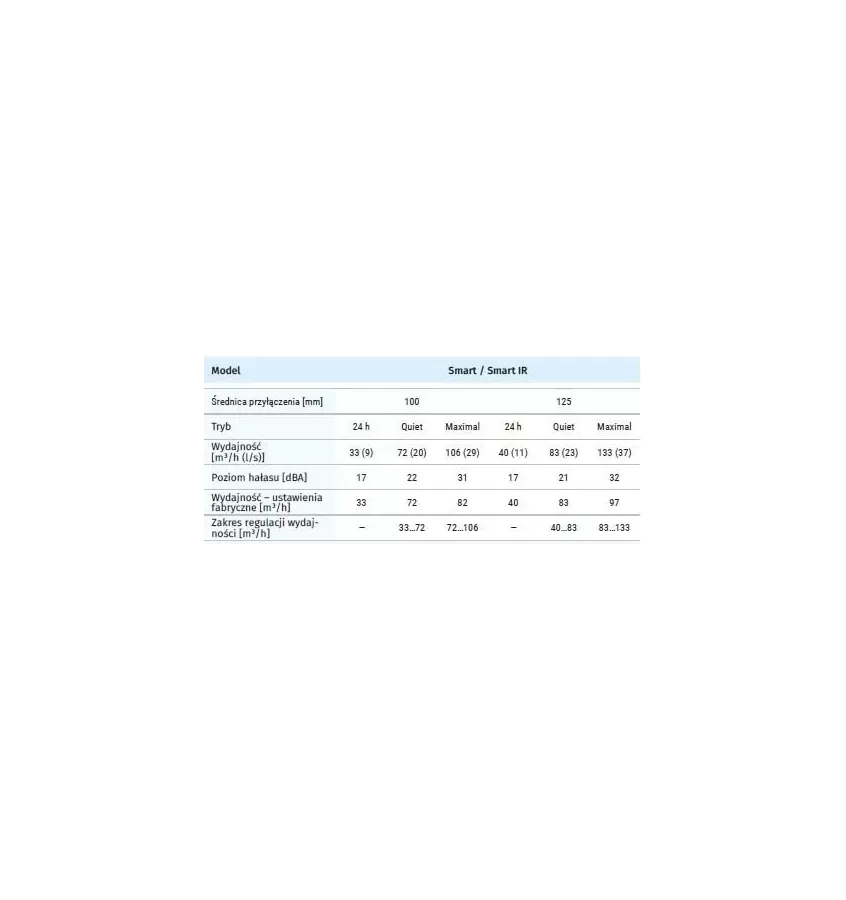

Technical data

• yield to 133 m ³ / h
• power consumption up to 3.8 W, SFP up to 0.1 W / l / s
• noise level up to 17 dBA
• DC motor
• lifetime up to 50,000 hours of continuous operation
• Switch-mode power supply with a power range from 100 to 240 W / 50-60 Hz
• the rotor is mounted on an anti-vibration pad

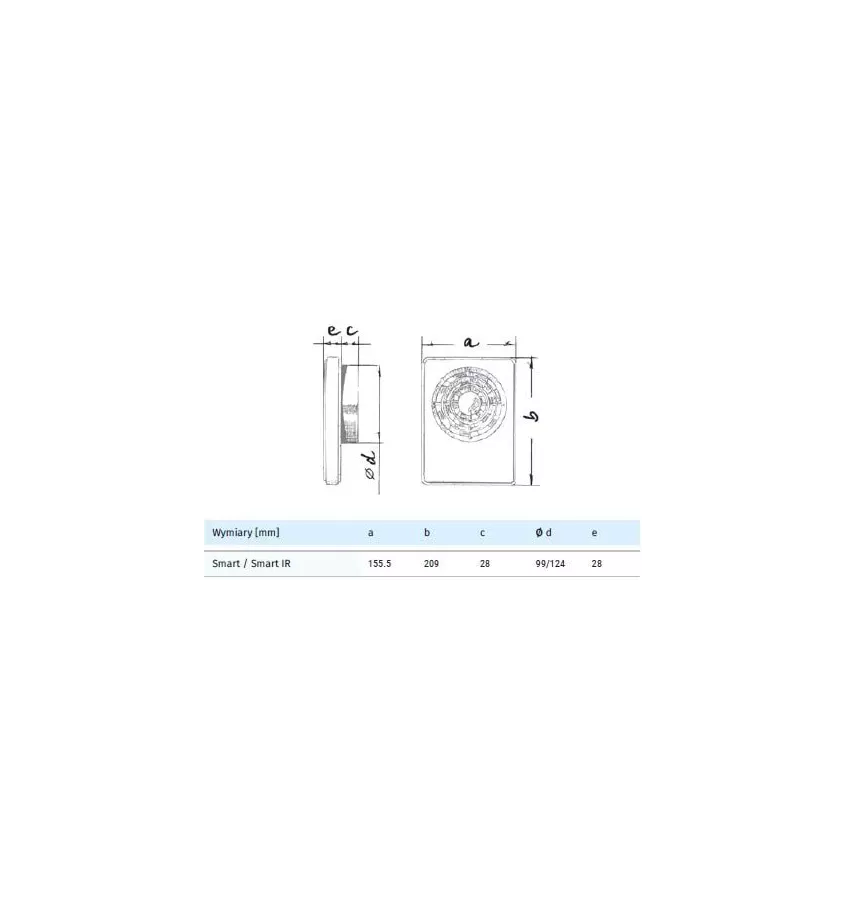

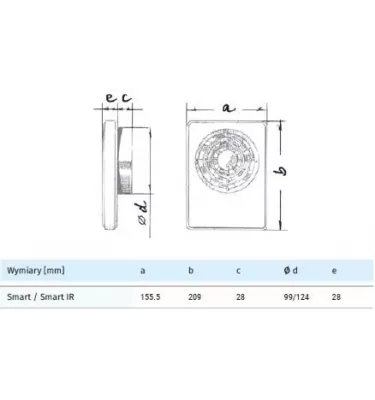

• ultra-slim housing with a thickness of 28 mm
• suitable for vertical or horizontal mounting

The fan has been developed taking into account the latest technologies of intelligent ventilation.

Intelligent humidity sensor. The fan is equipped with an intelligent humidity sensor, operating in the following operating modes: SLEEP - the fan is not working, but is ready for a sensor signal or an external signal; QUIET - optimum moisture, kt re provide sufficient air flow rate (up to 83 m ³ / h) in combination with low noise; MAXIMAL - efficient moisture removal at maximum capacity (up to 133 m ³ / h).

Timer. The fan is equipped with three different types of timer: HUMIDITY TIMER - adjusting the time of the fan to remove moisture until its level stabilizes, with the possibility of setting 30, 45, 60 minutes; TURN-OFF DELAY TIMER - after activation of the motion sensor or external signal, the fan continues to work for 5, 15 or 30 minutes, then returns to the previous operating mode; TURN-ON DELAY TIMER - the fan will switch to a higher speed in the range from 0.2 to 5 minutes after an increase in the humidity level or activation by a motion sensor.

24 hours. The fan runs at low speed to ensure minimal air exchange in the room. When the humidity changes, the fan switches to MAXIMAL (in case of increase) or QUIET (in case of decrease). After activation of the IR sensor or external signal, the fan can be switched to QUIET mode.

Interval ventilation. Automatic room ventilation function. At 15 hours the fan is activated for 2 hours and ventilate a room with a yield 83/72 m ³ / h (125/100 mm diameter).

Smooth speed regulation. Variable speed matching operation with 10 speeds: Quiet mode: from 40/33 m ³ / h to 83/72 m ³ / h (125/100 mm diameter); MAXIMAL mode: from 88/72 m ³ / h to 133/106 m ³ / h (125/100 diameter).

IR sensor. Automatic switch of the fan to QUIET mode after activation of the IR sensor. The sensor covers an area from 1 to 4 m with a range angle of - 100.
