Index: 31562-64048

Vents - mixed flow duct fan TT

Average grade: 0 / 0 reviews

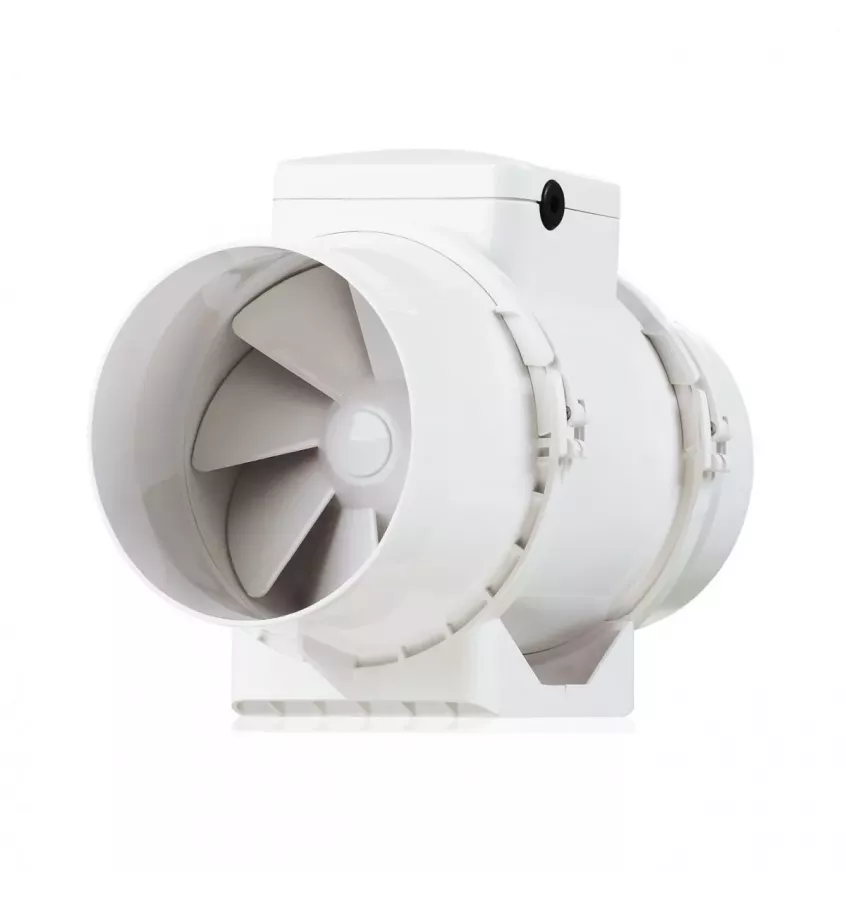

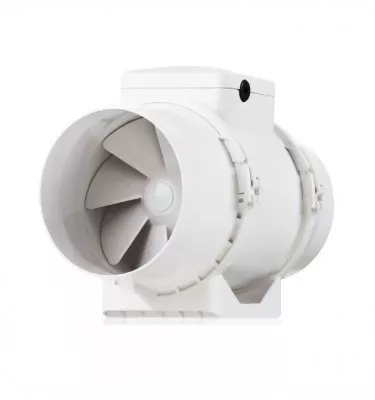

The TT series mixed flow duct fan is a fan with a capacity of up to 520 m3 / h.

model

Save amount -
zł206.52 zł206.52
Tax included

Najniższa cena z ostatnich 30 dni: zł206.52 brutto. (zł167.90)

On product inquiry
cennikowa cena jednostkowa netto
zł264.00
za szt
cennikowa cena jednostkowa brutto
zł324.72
za szt
promocyjna cena jednostkowa netto
zł167.90
za szt
promocyjna cena jednostkowa brutto
zł206.52
za szt
całkowita cena cennikowa netto
zł264.00
za 1 szt
całkowita cena cennikowa brutto
zł324.72
za 1 szt
całkowita cena cennikowa netto
zł167.90
za 1 szt
całkowita cena cennikowa brutto
zł206.52
za 1 szt

Products description

The TT series mixed flow duct fan is a fan with a capacity of up to 520 m 3 / h. The fan is adapted to transport air with a temperature up to +60 C. Dedicated to the channel in ventilation with diameters: 100, 125, 150, 160 mm. Degree of protection IP X4.

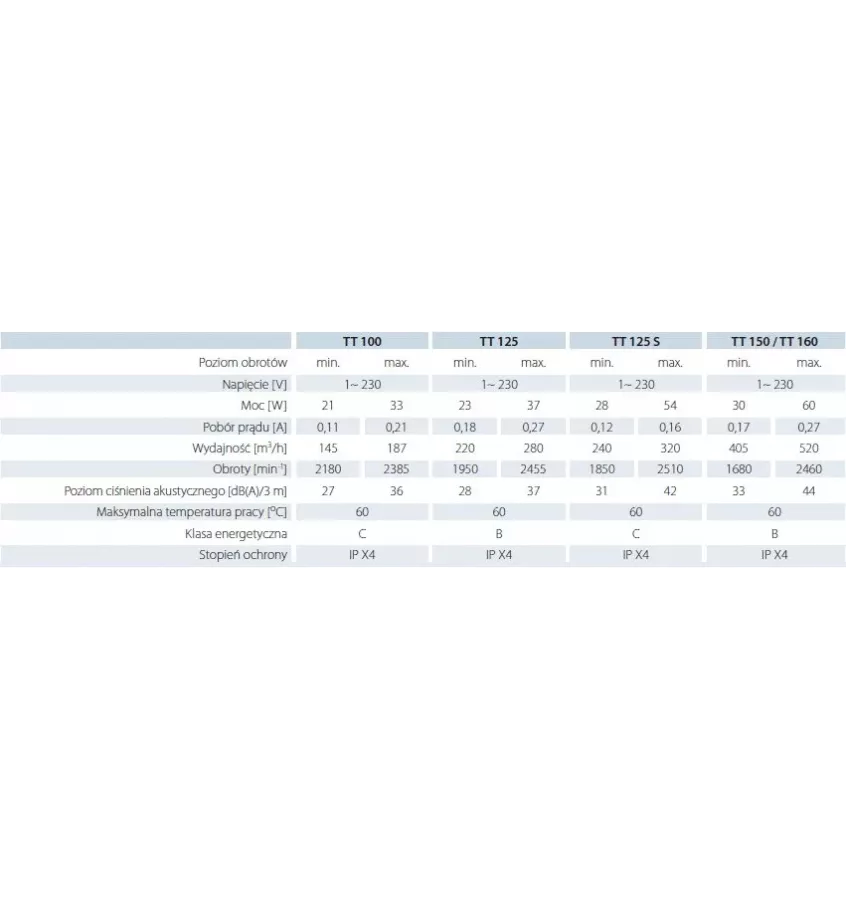

Dane techniczne wentylator o przepływie mieszanym TT Vents

Application

The TT fan is used in supply and exhaust ventilation systems that require relatively low compression, a strong air stream and a low noise level. For installation at any angle relative to the fan axis - directly to the ground, wall or ceiling. It is a good solution for ventilation of buildings in individual, collective housing and public utilities. In one system it is possible to install several fans in parallel or in series to increase the capacity or increase the pressure.

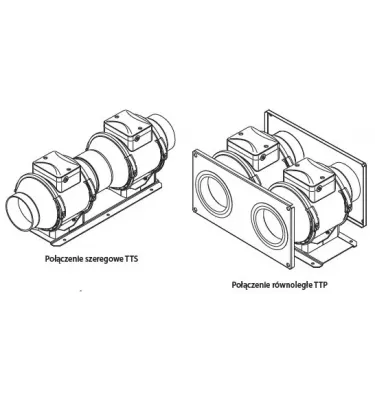

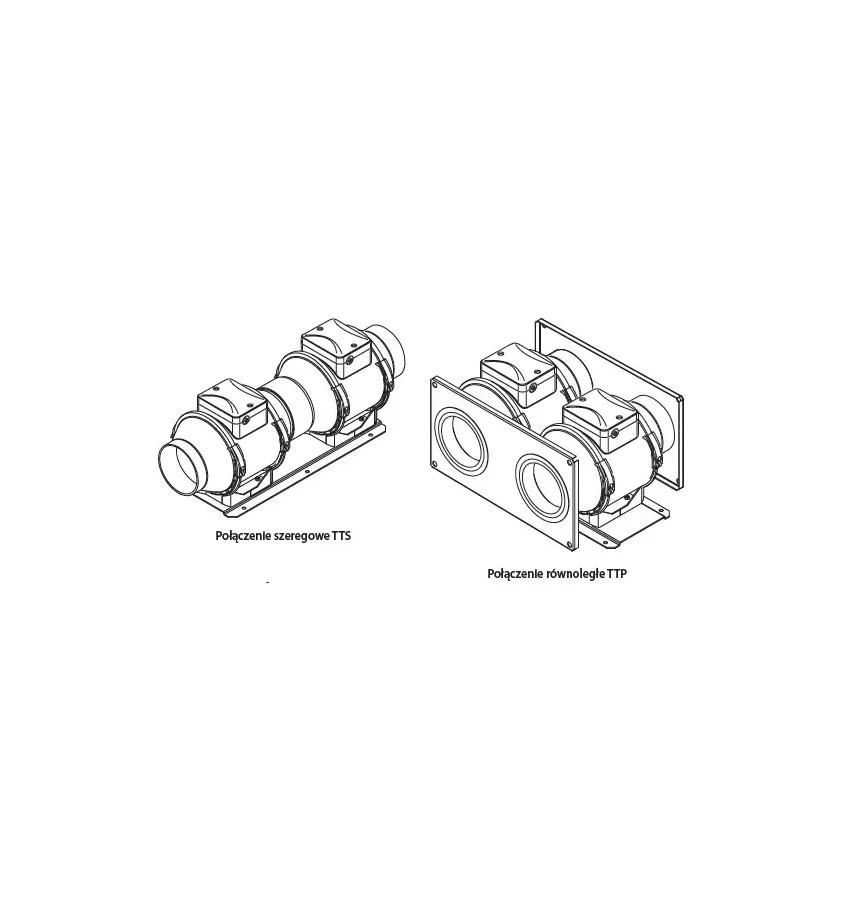

Połączenie szeregowe TTS i r wnoległe TTP

Building

TT fans have compact dimensions and the ability to disassemble the rotor with the motor without having to interfere with the ventilation system. The fan and impeller housing is made of high quality ABS plastic, which has high durability and mechanical properties. The motor block with the rotor and terminal box is attached to the housing with special clamps with latches. The single-phase ball-bearing motor has two speeds. All models can be equipped with an adjustable timer (timer) that allows the fan to switch off after the set time has elapsed.

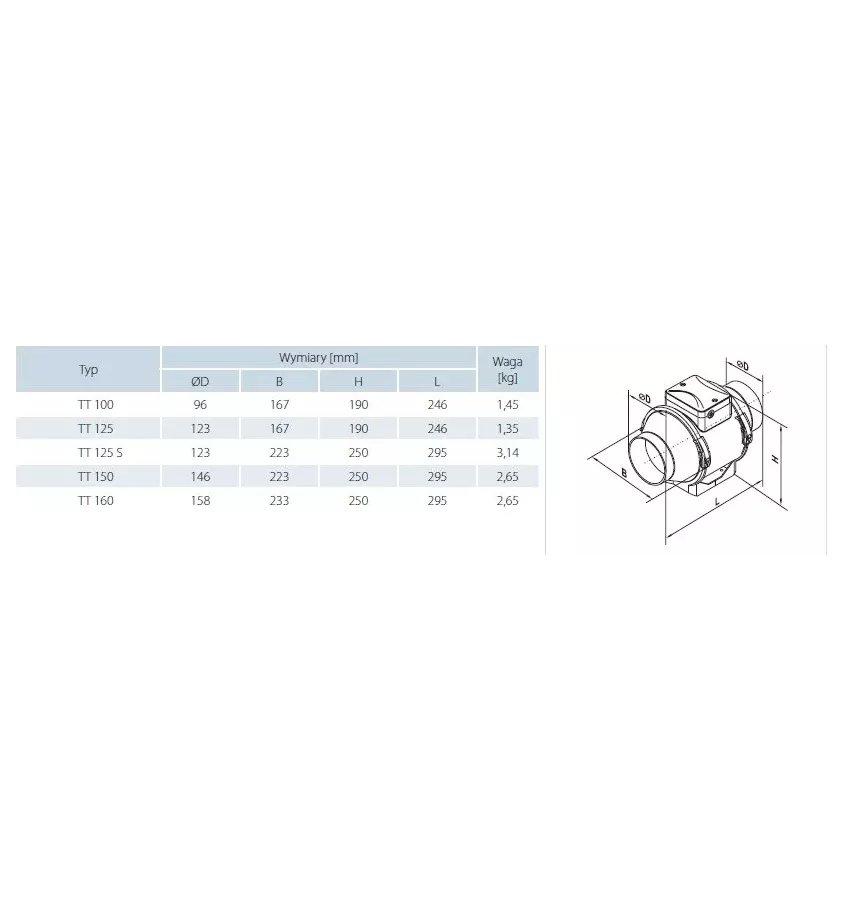

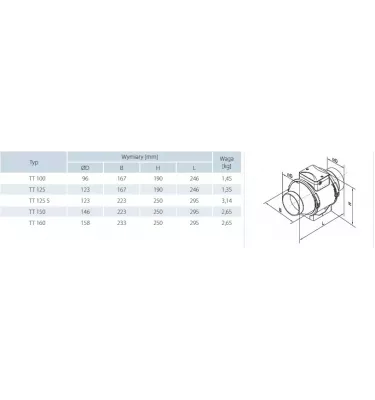

Wymiary [mm] wentylatora o przepływie mieszanym TT Vents

We also offer models with time delay (T).

Download

Vents TT - Karta produktu

Download file
