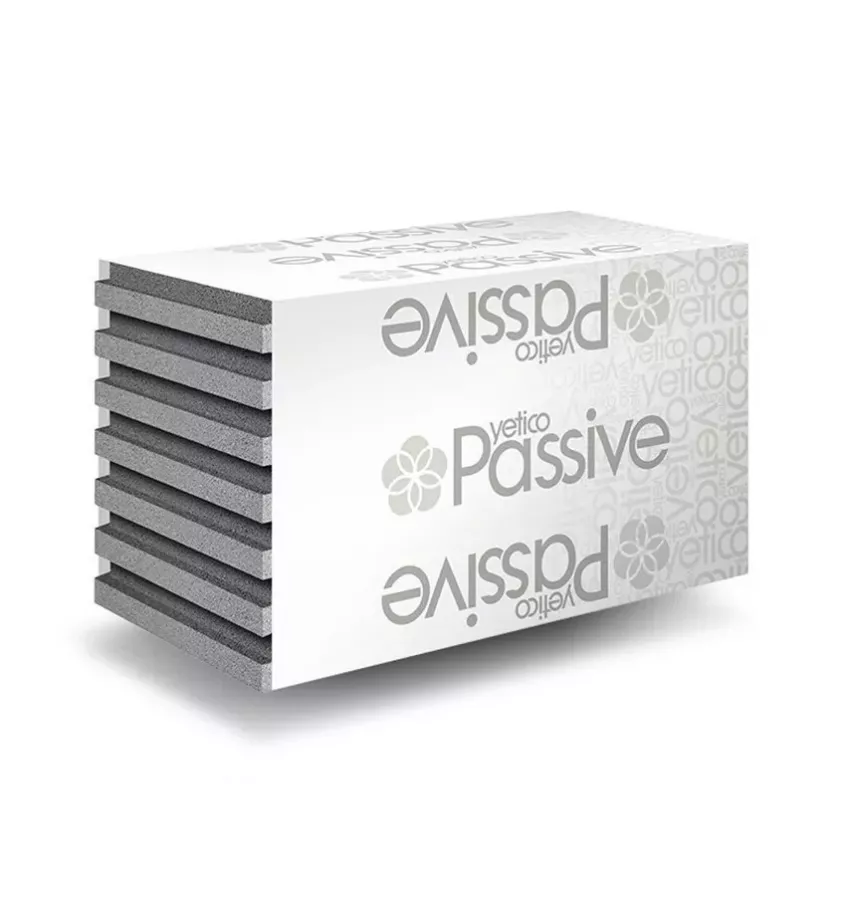

Yetico - Beta Passive 0.032 foam polystyrene board
Yetico - Beta Passive 0.032 foam polystyrene board
Index: 20836-5880

Yetico - Beta Passive 0.032 foam polystyrene board

Average grade: 0 / 0 reviews
These are gray-colored panels, produced on the basis of raw material with the addition of graphite, which improves the insulation properties of the panels.

wariant

Save amount -
zł198.03 zł198.03
Tax included

Najniższa cena z ostatnich 30 dni: zł198.03 brutto. (zł161.00)

On product inquiry
cennikowa cena jednostkowa netto
zł238.00
za m3
cennikowa cena jednostkowa brutto
zł292.74
za m3
promocyjna cena jednostkowa netto
zł161.00
za m3
promocyjna cena jednostkowa brutto
zł198.03
za m3
całkowita cena cennikowa netto
zł238.00
za 1 m3
całkowita cena cennikowa brutto
zł292.74
za 1 m3
całkowita cena cennikowa netto
zł161.00
za 1 m3
całkowita cena cennikowa brutto
zł198.03
za 1 m3

Products description

These are gray-colored panels, produced on the basis of raw material with the addition of graphite, which improves the insulation properties of the panels.

Application

  • Thermal insulation of walls and ceiling from below in Seamless Thermal Systems [BSO], i.e. in insulation made by
    light-wet method,
  • wall insulation with cladding and ventilated air gap,
  • coronary heat insulation made as formwork lost to plaster and
  • lintel and door jamb insulation,
  • insulation of ceilings in Selbetowych made as lost formwork,
  • plinth insulation in Seamless Thermal Insulation Systems [BSO].

attention

Three varieties of ALFA PASSIVE boards:

  • overlapped panels, produced in automatic technology - panel thickness: 50,60,80,100,120 [mm]
  • overlapped panels, cut with block w - panel thickness: from 50 [mm] to 150 [mm], with 10 [mm] gradation
  • boards with straight edges, cut from a block in - board thickness: from 10 [mm] to 200 [mm], with a step every 10 [mm] -
    possibility of producing other thicknesses on individual request

The thickness of the panels should be given in the comments to the order.

ALFA PASSIVE foam boards cannot be used in direct contact with substances that have a destructive effect on polystyrene, e.g. organic solvents such as acetone, benzene, turpentine, gasoline.

Due to frequent price movements, for reasons beyond our control, please confirm the price when purchasing.

Specification

fire classification - reaction to fire
E
thermal conductivity λ
0,032 W/mK
thickness (dimensional tolerance class)
± 1 mm
length (dimensional tolerance class)
± 2 mm
width (dimensional tolerance class)
± 2 mm
squareness (dimensional tolerance class)
± 2/1000 mm/mm
flatness (dimensional tolerance class)
± 5 mm
flexural strength
≥ 75 kPa
tensile strength
≥ 80 kPa
dimensional stability under constant normal laboratory conditions DS(N)2
± 0,2 %
dimensional stability under constant normal laboratory conditions DS(70,-)1
≤ 1 %
MPN
20836

Download

Yetico Beta Passive Karta techniczna

Download file

Yetico Beta Passive Deklaracja Zgodności

Download file
