Tatarek - fireplace controller with heat accumulation system RT-08 OS Grafik Black Design

Combustion optimizer with a dark function display, designed to operate a system in heat accumulation, traditional fireplace inserts equipped with a direct air supply to the combustion chamber and Zdunskie stoves. Its task is to integrate the work of the air damper, which supplies air to the hearth and the exhaust temperature sensor in such a way as to obtain the most optimal combustion and transfer the largest amount of heat to the element in the accumulation or room. The main function of the controller is smooth ignition, obtaining the highest temperature in the maximum period of time and maintaining the heat phase without leading to premature cooling of the furnace. The controller can limit the maximum burning temperature.

Equipment

• one sensor for measuring the exhaust gas temperature

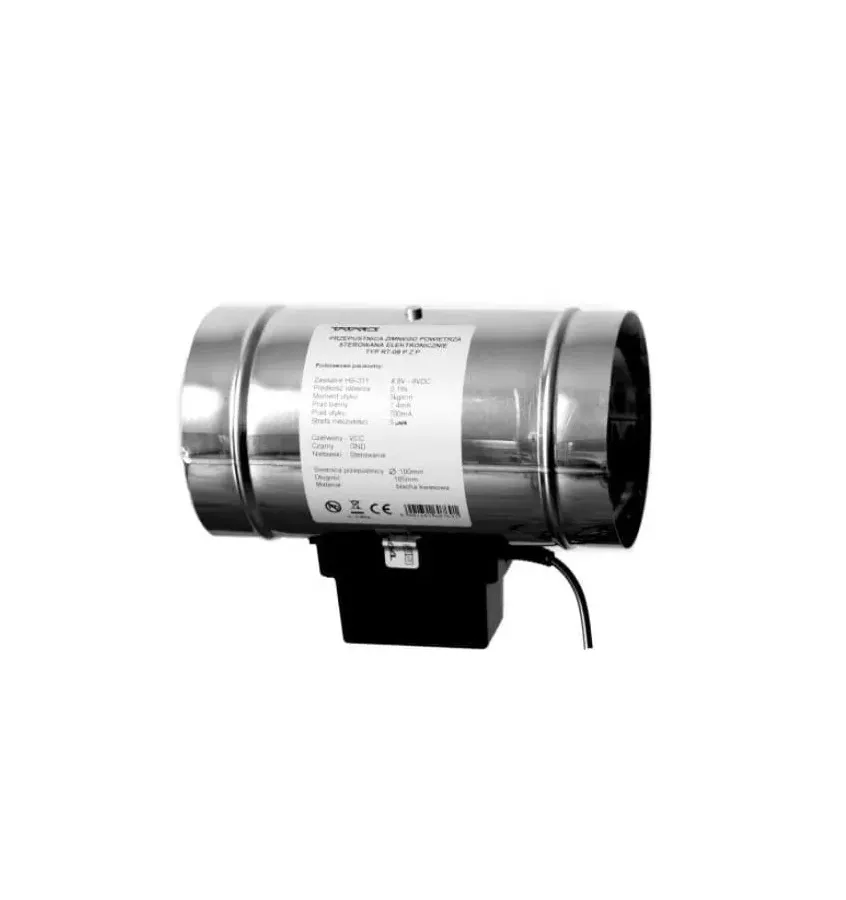

• air supply damper (tight)
• mounting box for concealed installation
• Black Design version

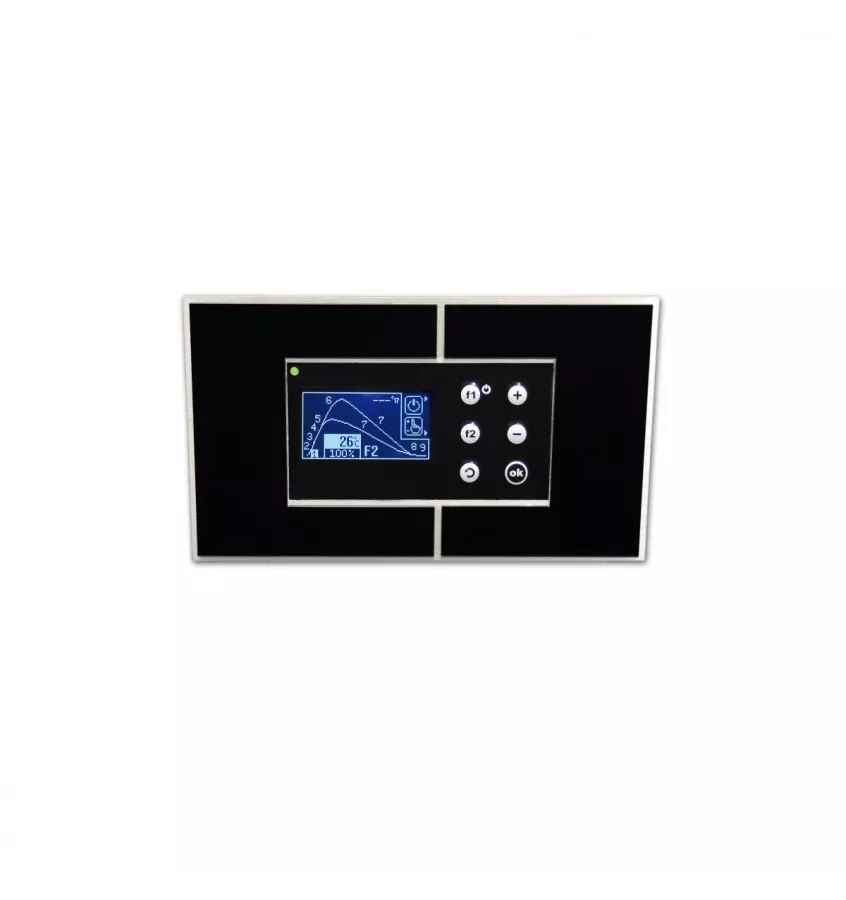

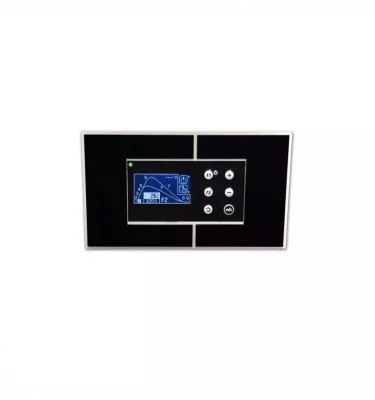

• dark function display

For an additional fee you can buy a second exhaust temperature sensor, ceramic cover of the temperature sensor, carbon monoxide sensor, furnace door opening sensor, chimney flap servo.

Basic controller functions

• smooth control of the throttle regulating combustion air supply based on the exhaust gas temperature
• preventing the furnace from cooling down after work
• preventing overheating of the furnace
• informing about the need to add fuel
• optimization and extension of the fireplace burning process
• co-operation with carbon monoxide sensor
• Co-operation with the furnace door sensor
• emergency damper opening in case of power failure
• memory in case of power outage
• cooperation with an external device (e.g. ventilation, draft generator)
• co-operation with chimney flap servo (e.g. Moritz flap)

Technical data

• 230 V / 50 Hz power supply
• no load power consumption 5 W
• auxiliary power supply 4.8 V / 60 mAh battery
• number of voltage-free control outputs 1
• number of outputs controlling the throttle drive 1 * 5 V / 500 mA / DC
• number of outputs controlling the damper drive 1 * 250 W / 230 V / 50 Hz
• accuracy of temperature measurement 5 C
• temperature resolution 1 C
• quantity sensor in 2 * Thermocouple type K (1200 C)
• quantity sensor in water temperature 2 * KTY (0 ... + 100 C)
