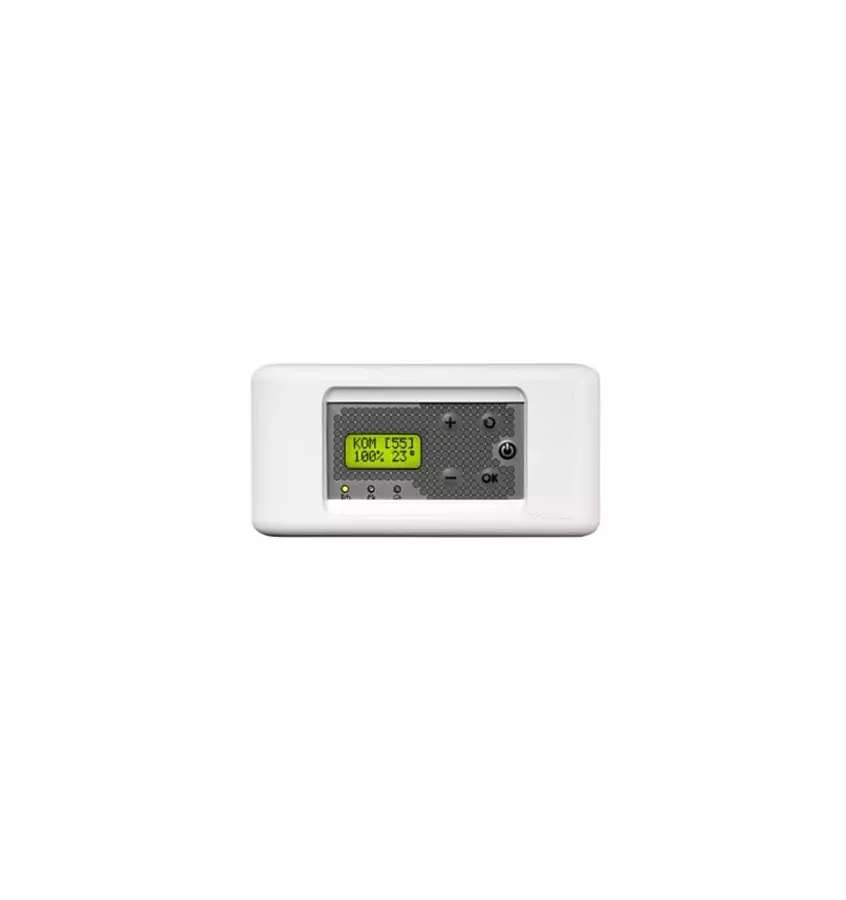

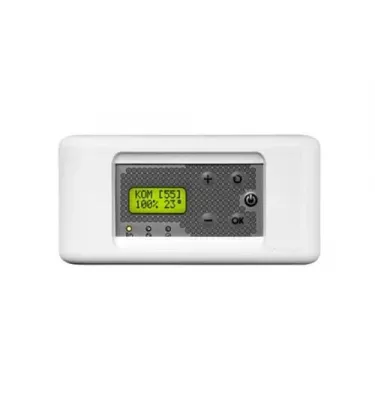

Tatarek - controller for operating heating systems RT-08P Lux fireplace

Average grade: 0 / 0 reviews
The control set is intended for operating heating systems fed from a fireplace with a water jacket, with regulation of the air supply to the combustion chamber via a cold air damper. Has an LCD display. It provides automatic operation of two central heating circulating pumps and a pump charging the DHW system. A voltage free contact allows you to switch on or off another device (e.g. gas oven).

wymiary

wariant

Save amount -
zł995.56 zł995.56
Tax included

Najniższa cena z ostatnich 30 dni: zł995.56 brutto. (zł809.40)

On product inquiry
cennikowa cena jednostkowa netto
zł1,227.00
za szt
cennikowa cena jednostkowa brutto
zł1,509.21
za szt
promocyjna cena jednostkowa netto
zł809.40
za szt
promocyjna cena jednostkowa brutto
zł995.56
za szt
całkowita cena cennikowa netto
zł1,227.00
za 1 szt
całkowita cena cennikowa brutto
zł1,509.21
za 1 szt
całkowita cena cennikowa netto
zł809.40
za 1 szt
całkowita cena cennikowa brutto
zł995.56
za 1 szt

Products description

The control set is designed to operate a heating system powered by a fireplace with a water jacket, with regulation of the air supply to the combustion chamber via a cold air damper. Has an LCD display. It provides automatic operation of two central heating circulation pumps and a pump for charging the hot utility water system. A voltage free contact allows you to switch on or off another device (e.g. gas oven).

Equipment

  • three water temperature sensors
  • air supply damper
  • mounting box for concealed installation
  • LCD display

Basic controller functions

  • DHW pump control
  • different operating modes for the DHW pump
  • integrated zone thermostat function
  • smooth control of the throttle regulating combustion air supply
  • optimization of the combustion process in the fireplace
  • controlling the operation of two circulation pumps
  • the function of blocking another source of heat when the fireplace provides heat to the installation
  • memory in case of power failure - restoration of previously made settings

Technical data

  • damper type unsealed
  • 230 V 50 Hz power supply
  • one voltage-free control output
  • maximum connection power 3 x 250 W / 230 V / 50 Hz
  • number of sensor in 3
  • working temperature 0-40 C
  • accuracy of temperature measurement 2 C
  • temperature measurement resolution 0.5 C
  • dimensions: 148 x 80 x 55
  • power consumption 5 W
  • maximum connected power 750 W
  • KTY81 temperature sensor (0 ... + 100 C)
  • LVD in accordance with PN-EN 60730-2-1: 2002
