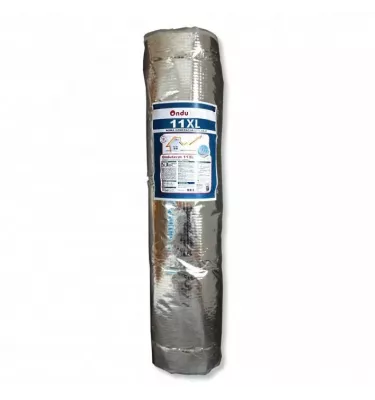

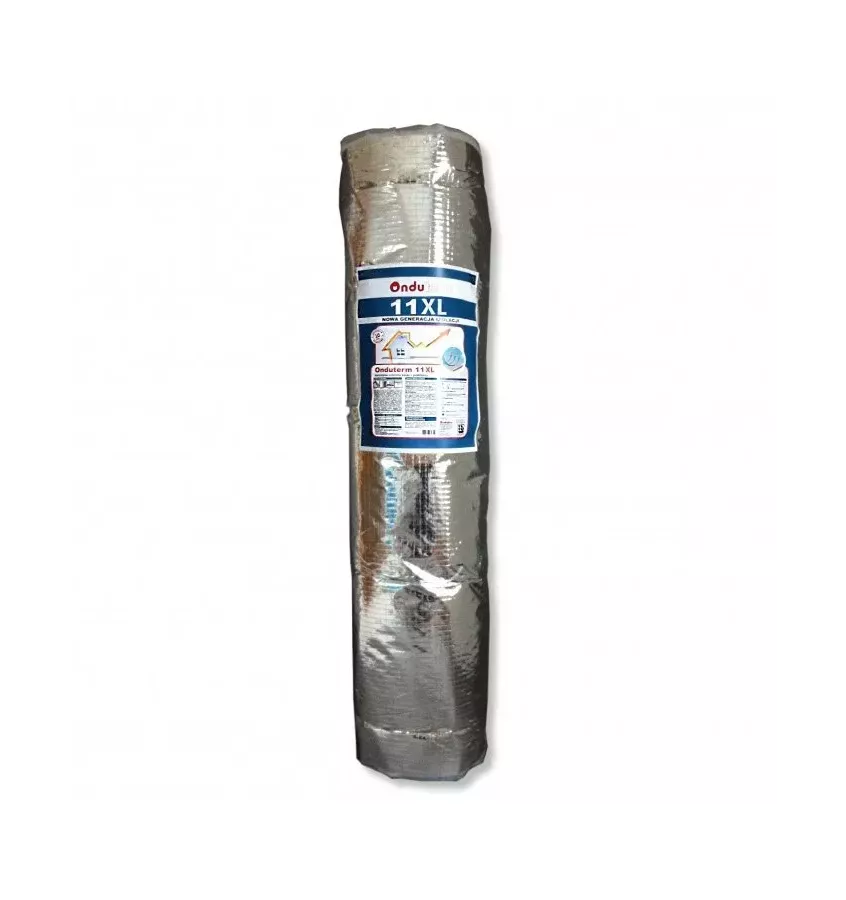

Onduline - Onduterm 11 XL insulation membrane

Average grade: 0 / 0 reviews
Onduterm membrane can be used for insulation of: roof, wall, floor, ceiling. The main principle of Onduterm thermal insulation films is the reflection of emitted thermal energy in the form of radiation from the screen, which is reflective thermal insulation.
Save amount -
zł754.61 zł754.61
Tax included

Najniższa cena z ostatnich 30 dni: zł754.61 brutto. (zł613.50)

On product inquiry
cennikowa cena jednostkowa netto
zł52.75
za m2
cennikowa cena jednostkowa brutto
zł64.88
za m2
promocyjna cena jednostkowa netto
zł40.90
za m2
promocyjna cena jednostkowa brutto
zł50.31
za m2
całkowita cena cennikowa netto
zł791.25
za 15 m2
całkowita cena cennikowa brutto
zł973.24
za 15 m2
całkowita cena cennikowa netto
zł613.50
za 15 m2
całkowita cena cennikowa brutto
zł754.61
za 15 m2

Products description

Onduterm membrane can be used for insulation of: roof, wall, floor, ceiling. The main principle of operation of Onduterm thermal insulation films is the reflection of emitted thermal energy in the form of radiation from the screen, which is reflective thermal insulation. Onduterm consists of 2 outer layers: metallized and reinforced polyester films, and filling depending on the version - from several layers of polyester mat, metallised foil (12 microns each) and additional layers of polyethylene foam (applies to Onduterm 11SP and Onduterm 15SP varieties). It works on the principle of a mirror reflecting heat energy, its effectiveness is affected by the number of individual layers of the material and their thickness. Onduterm reflects up to 92% of heat radiation from its surface and is able to absorb only 1% of heat energy. Infrared radiation accounts for 90% of the total heat energy carrier in buildings in summer, and about 75% of total energy transfer in winter. The use of Onduterm thermal insulation allows you to achieve 30% savings when heating or cooling.

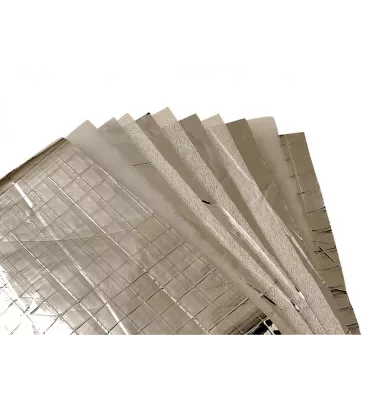

Mat construction

11th century

  • 2 layers of reinforced, metalized polyester film
  • 5 layers of polyester mat
  • 4 layers of metallized foil

Advantages

  • insulation of roof in attics, walls and floors
  • easily adapts to the surface
  • prevents from overheating in the summer
  • material light and easy to transport
  • protects against winter heat loss
  • excellent sound insulation
  • replaces vapor barrier film
  • simple, quick and cheap assembly

Application

  • roofs
  • ceilings
  • floors
  • wall

Technical data

  • Roll dimensions: 9.81 mx 1.53 m, 10.0 mx 1.5 m
  • Roll surface: 15 m2
  • Roll weight: 11.6 kg
  • Weight m2: 0.773 kg
  • Mat thickness: 45 mm
  • Thermal conductivity coefficient [W / mK]: 0.024
  • Thermal resistance [m2 / W]: 1.85

Specification

weight
11,6 kg
size
45 mm
thermal conductivity λ
0,024 W/mK
Dimensions [m]
9,81 x 1,53 m
area
15 m²
thermal resistance [m²/W]
1,85 m²/W
MPN
22448
