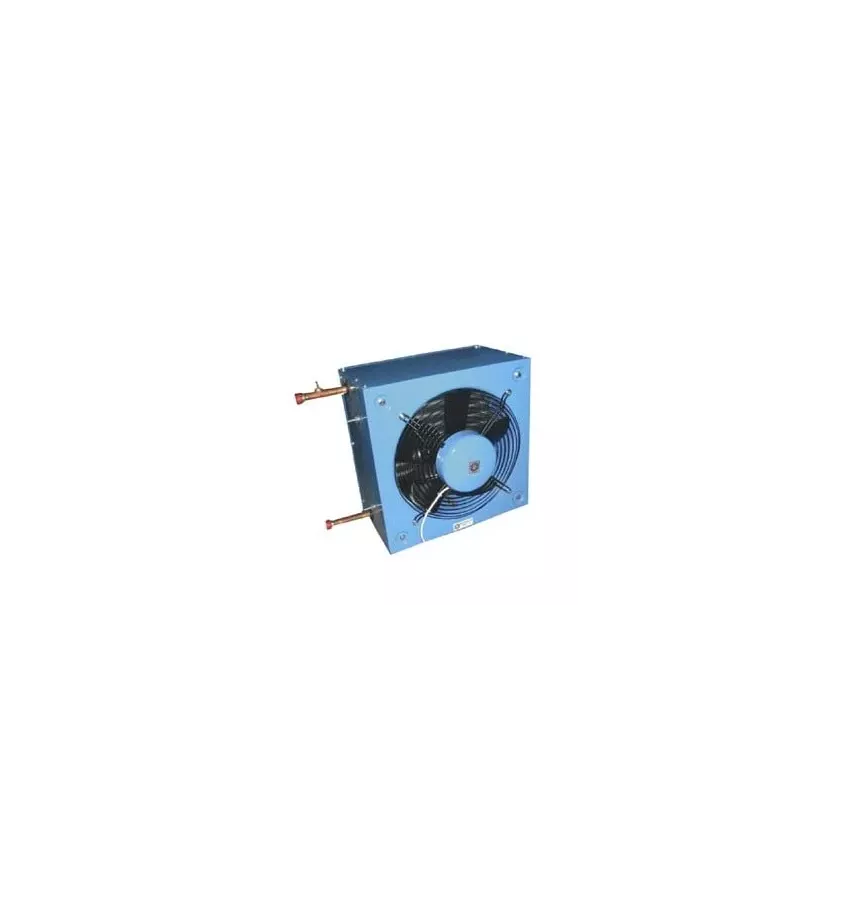

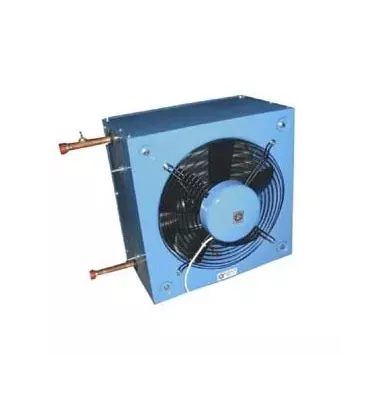

Convector - UGW heating and ventilation device

Name: Convector - UGW heating and ventilation device
Brand: Konwektor
Price: 4356.66 PLN
Availability: InStock

Average grade: 0 / 0 reviews

UGH is a heating and ventilation device with an WWS axial fan.

wariant

Save amount -

zł4,356.66 zł4,356.66

Tax included

Najniższa cena z ostatnich 30 dni: zł4,356.66 brutto. (zł3,542.00)

On product inquiry

cennikowa cena jednostkowa netto

zł3,690.00

za szt

cennikowa cena jednostkowa brutto

zł4,538.70

za szt

promocyjna cena jednostkowa netto

za szt

promocyjna cena jednostkowa brutto

za szt

całkowita cena cennikowa netto

zł3,690.00

za 1 szt

całkowita cena cennikowa brutto

zł4,538.70

za 1 szt

całkowita cena cennikowa netto

za 1 szt

całkowita cena cennikowa brutto

za 1 szt

Products description

UGW heating and ventilation device with WWS axial fan can be supplied with water at temperatures 130/70 or lower and working pressure up to 0.6 MPa. The device fans used are equipped with 230 V single-phase motors; 50 Hz.

Application

The heating and ventilation device is adapted to work in circulating air in a vertical position attached to the wall or horizontal as a ceiling with a special hanger in. They are used in heating and ventilation of rooms such as industrial halls, warehouses, workshops, commercial pavilions etc. Due to for the use of a copper-aluminum heat exchanger it should not be used in rooms with a high degree of dust and the presence of greasy vapors.

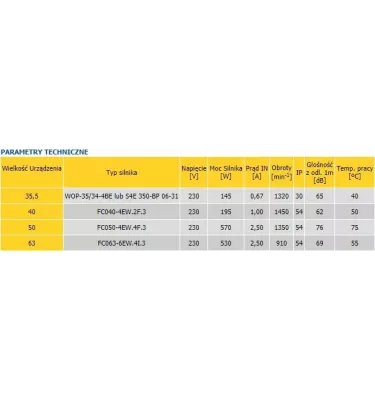

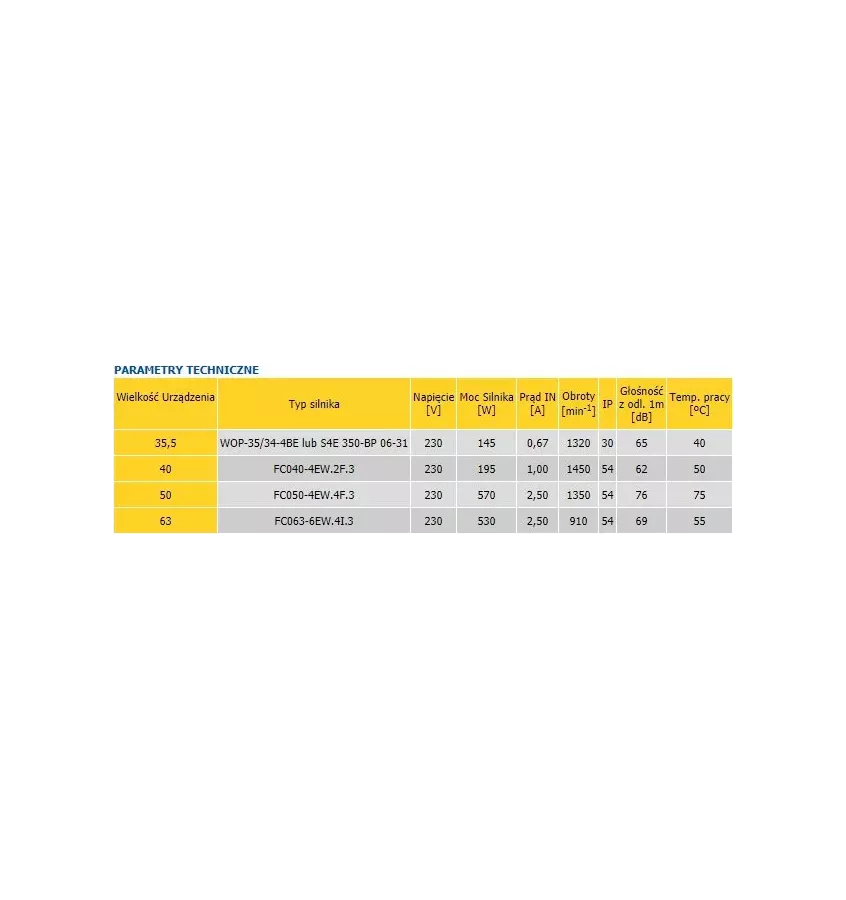

Parametry techniczne UGW Konwektor

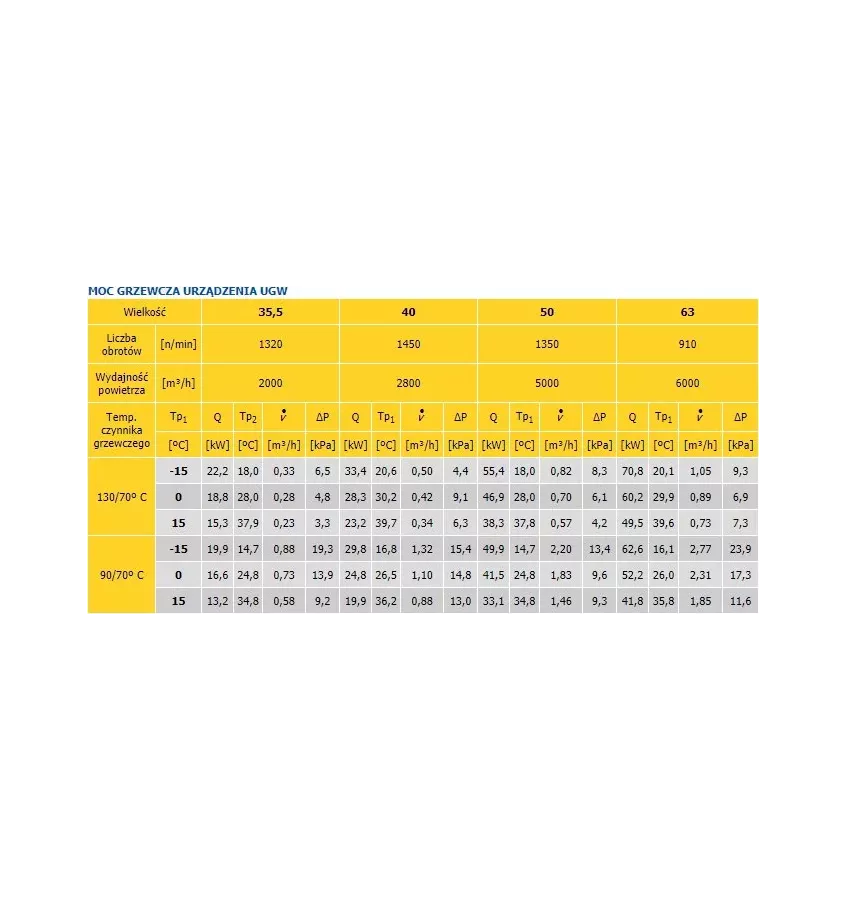

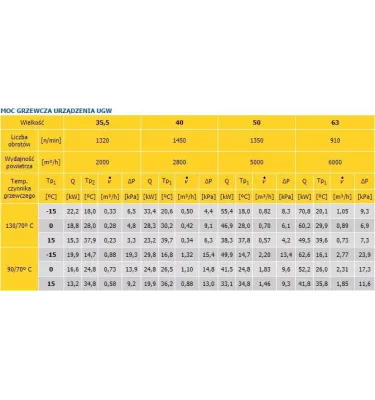

Moc grzewcza UGW Konwektor

T _p1 - inlet air temperature
T _p2 - outlet air temperature
Q - heating power
v • - heating medium demand
∆P - pressure loss of the heating medium on the heat exchanger

Building

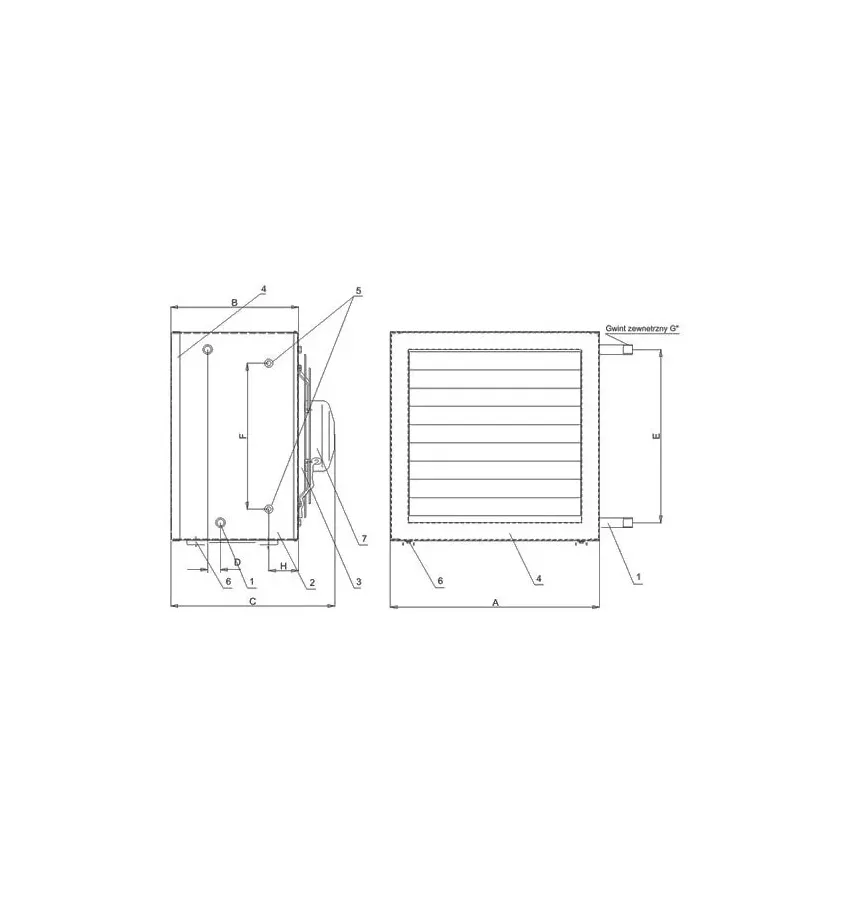

Budowa urządzenia grzewczo-wentylacyjnego UGW Konwektor

1 - Cu-Al water heater
2 - external housing
3 - axial fan WWS
4 - front panel with air flow guides (wall or ceiling)
5 - holes for fixing the hinges
6 - legs
7 - junction box

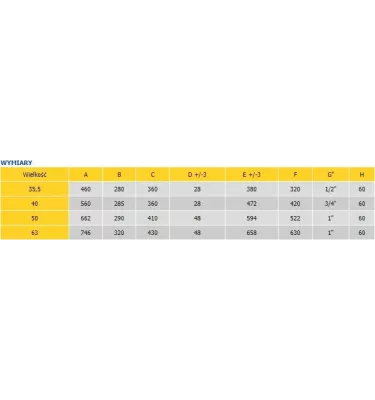

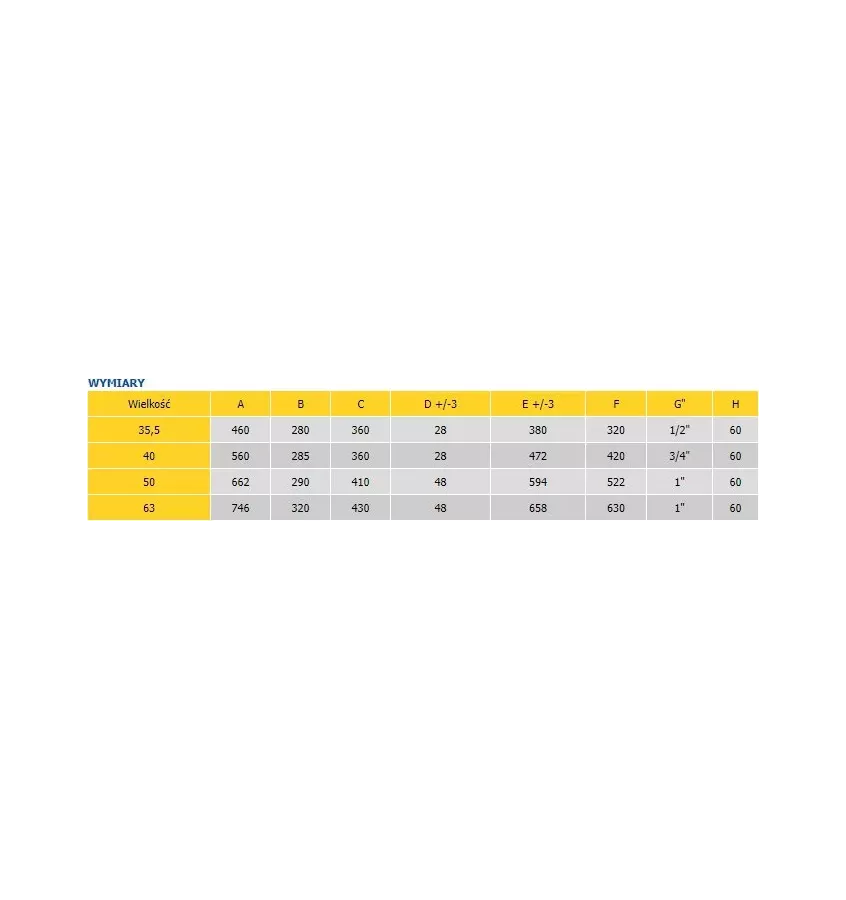

Tabela z wymiarami UGW Konwektor
