Prodmax - double-walled insulated heat resistant chimney system - plate condenser

Name: Prodmax - double-walled insulated heat resistant chimney system - plate condenser
Brand: Prodmax
Price: 294.09 PLN
Availability: InStock

Average grade: 0 / 0 reviews

Heat-resistant condenser with plate is used to drain condensate, at the same time it is a support for the chimney.

diameter

Save amount -

zł294.09 zł294.09

Tax included

Najniższa cena z ostatnich 30 dni: zł294.09 brutto. (zł239.10)

On product inquiry

cennikowa cena jednostkowa netto

zł286.00

za szt

cennikowa cena jednostkowa brutto

zł351.78

za szt

promocyjna cena jednostkowa netto

za szt

promocyjna cena jednostkowa brutto

za szt

całkowita cena cennikowa netto

zł286.00

za 1 szt

całkowita cena cennikowa brutto

zł351.78

za 1 szt

całkowita cena cennikowa netto

za 1 szt

całkowita cena cennikowa brutto

za 1 szt

Products description

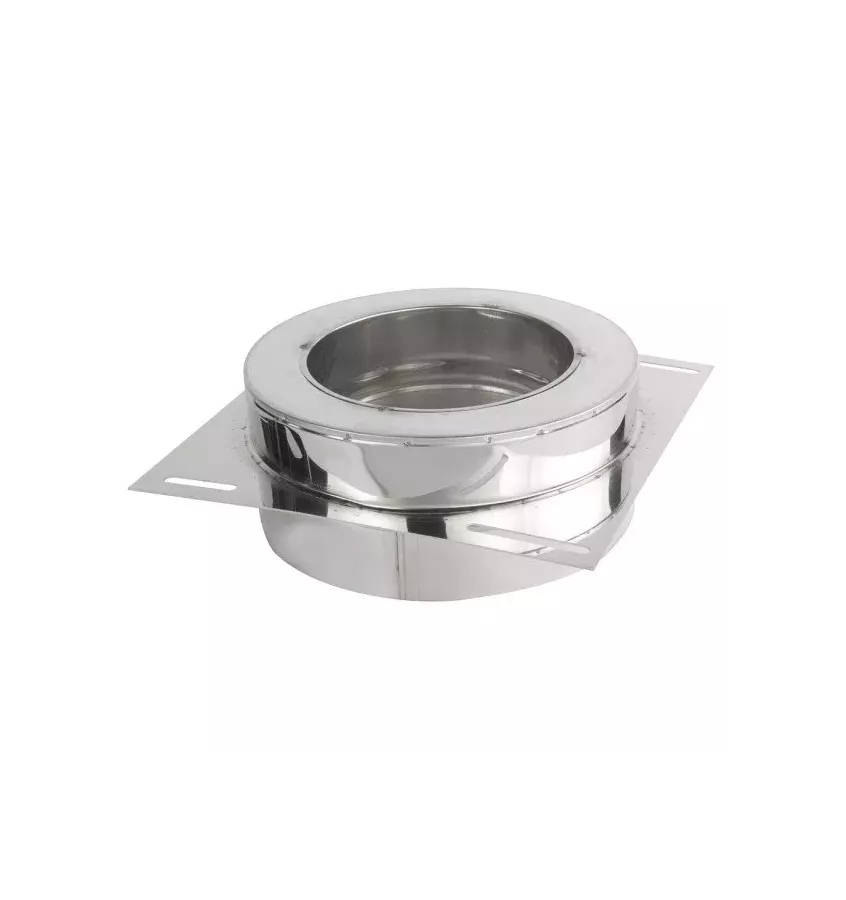

Heat-resistant condenser with plate is used to drain condensate, at the same time it is a support for the chimney.

Insulated heat-resistant chimneys are used for the construction of free-standing chimneys to remove flue gases from wood-fired heating devices. The chimney made in this technology is a stand-alone structure, not requiring the use of conventional ceramic material.

The inner chimney jacket in double-walled is made of acid-resistant chromium-nickel sheets of grade 1.4828 according to DIN 17441 with a thickness of 1.0 [mm], the outer jacket is made of acid-resistant steel 1.4301, thickness 0.5 - 0.6 [mm], the thermal insulation is 70 [mm].

In addition to standard elements such as a trowel, pipe or cleanout, there are also those that are only used together with insulated chimneys. Those are:

Chimney bracket - used to support the structure of the entire chimney
Condenser with a plate - the first element mounted on a bracket (plate with a condensate bowl.
Adjustable clamp - clamp clamping the chimney to the wall with the possibility of adjustment.
Mouthpiece - top of the chimney. Prevents rainfall from getting in to the insulation layer between the coats.

Roof passage (manufactured at the right angle specified by the customer) - used when it is necessary to route the chimney through the roof and secure the openings so that precipitation does not seep inside.
