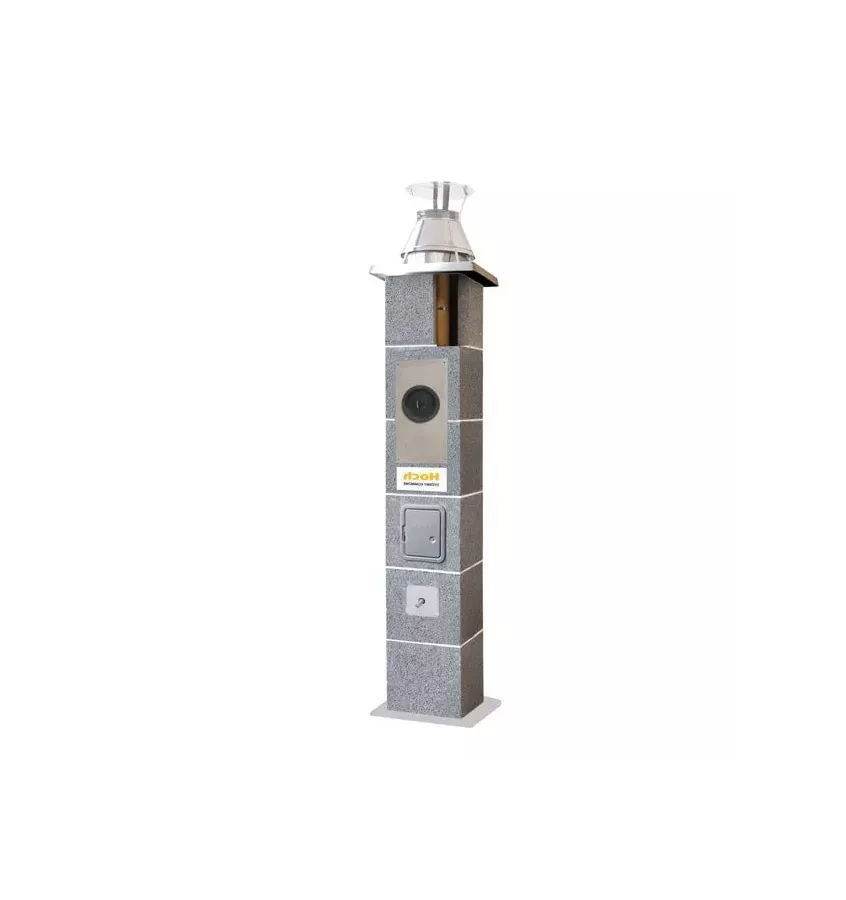

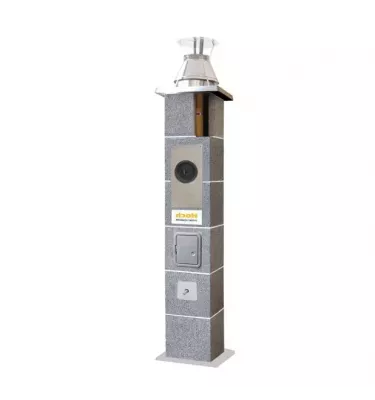

Hoch - Keramik S2W chimney smoke and ventilation system

Average grade: 0 / 0 reviews
The Hoch Keramik system is an air-flue chimney system that is designed to remove flue gas from modern furnaces with a closed combustion chamber.

diameter

wariant

Save amount -
zł2,351.88 zł2,351.88
Tax included

Najniższa cena z ostatnich 30 dni: zł2,351.88 brutto. (zł1,912.10)

On product inquiry
cennikowa cena jednostkowa netto
zł3,161.00
za szt
cennikowa cena jednostkowa brutto
zł3,888.03
za szt
promocyjna cena jednostkowa netto
zł1,912.10
za szt
promocyjna cena jednostkowa brutto
zł2,351.88
za szt
całkowita cena cennikowa netto
zł3,161.00
za 1 szt
całkowita cena cennikowa brutto
zł3,888.03
za 1 szt
całkowita cena cennikowa netto
zł1,912.10
za 1 szt
całkowita cena cennikowa brutto
zł2,351.88
za 1 szt

Products description

The Hoch Keramik system is an air-flue chimney system that is designed to remove flue gas from modern furnaces with a closed combustion chamber - both condensing and TURBO.

Technical data

  • smoke and ventilation chimney
  • possibility of working at overpressure up to 200 Pa
  • exhaust gas temperature at the boiler outlet must not exceed 200 ° C
  • dimensions 36 x 56 x 33 cm
  • available diameters from 120 to 300 fi
  • system compliant with EN 13063-2, EN 13063-3

The air supplying the combustion chamber is led through the chimney casing, with a stream opposite to the gas in the flue gas. As a result, the air supplied to the furnace from the chimney top is heated and energy losses are reduced, while the efficiency of the connected heating devices increases. The exhaust fumes are discharged through the ceramic pipe.

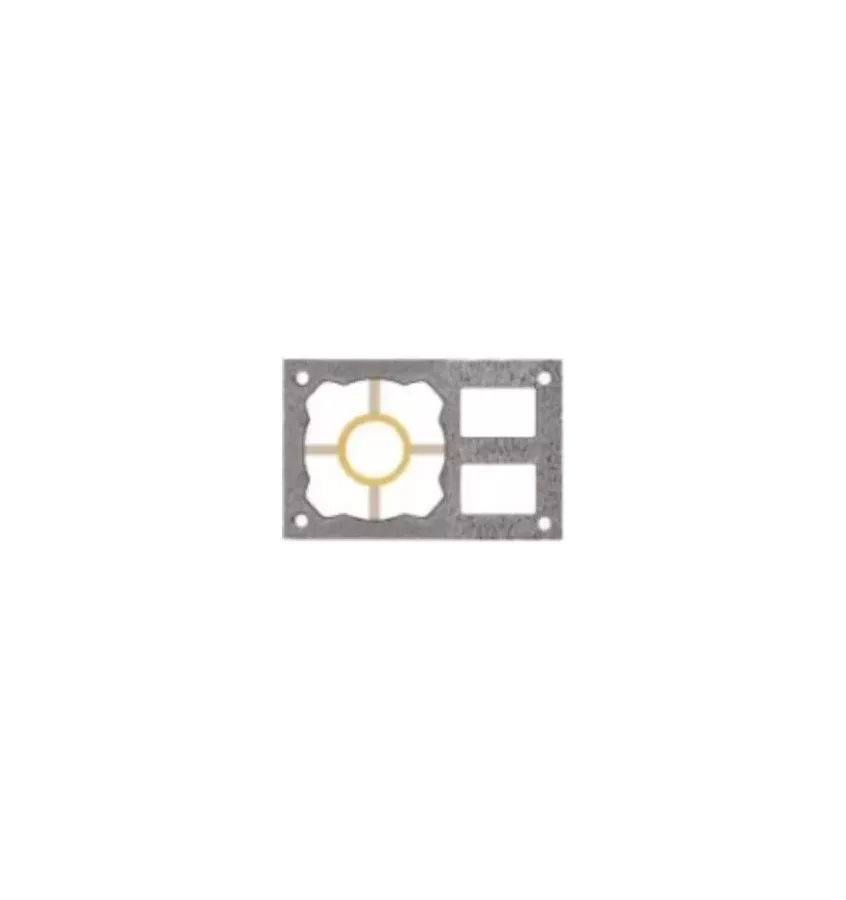

Schemat Keramik S2W

Keramik attitude package:

  • hollow
  • revision condenser with condenser
  • combustion engine
  • tubing
  • connection gasket
  • revision plug
  • pipe clamps
  • condensate hose
  • faceplate
  • peaked cone
  • centering plate with lost formwork
  • the door
  • condenser cover
  • installation instructions
