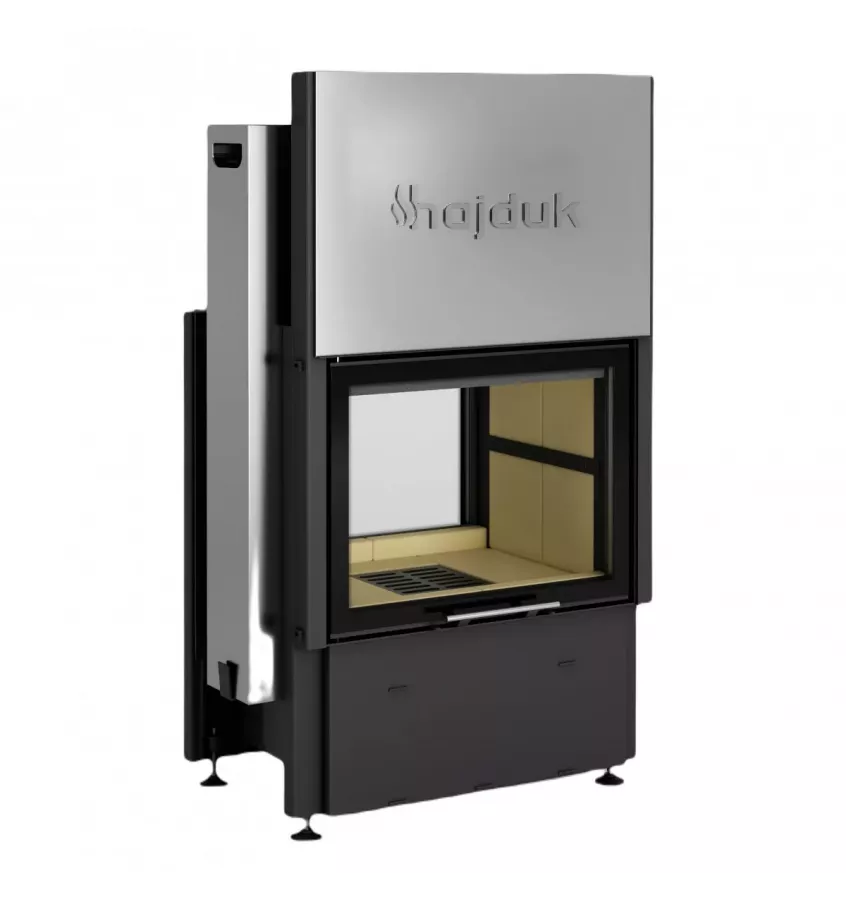

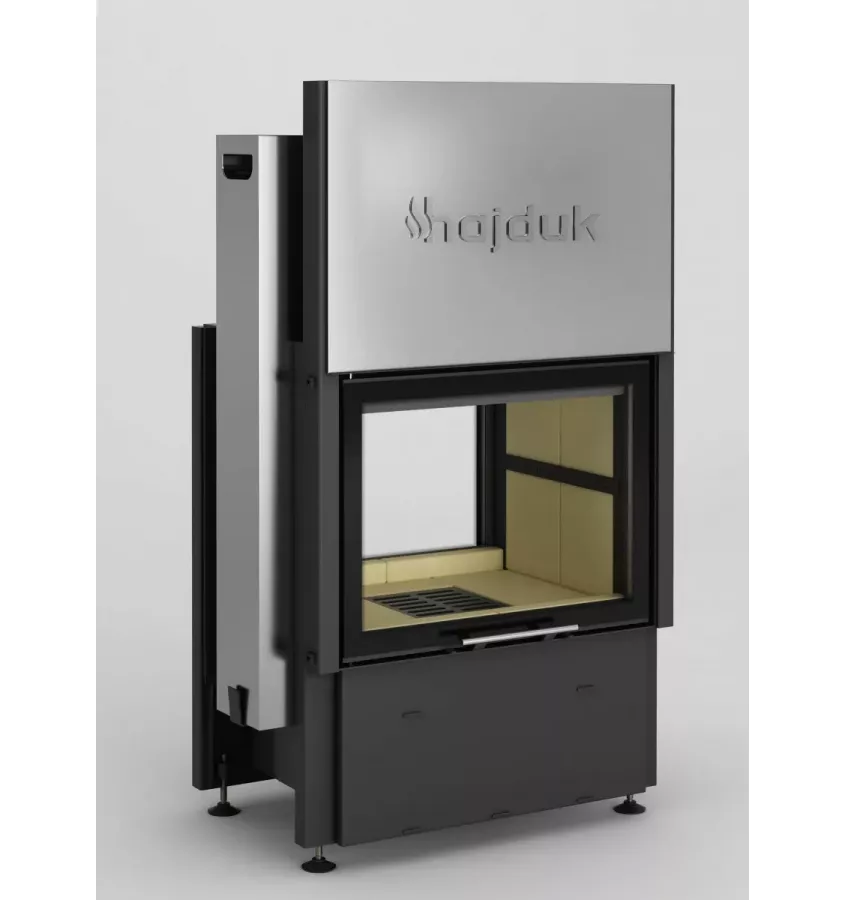

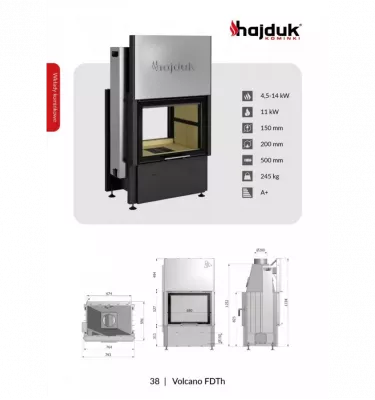

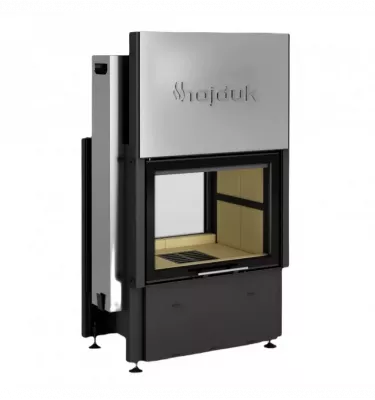

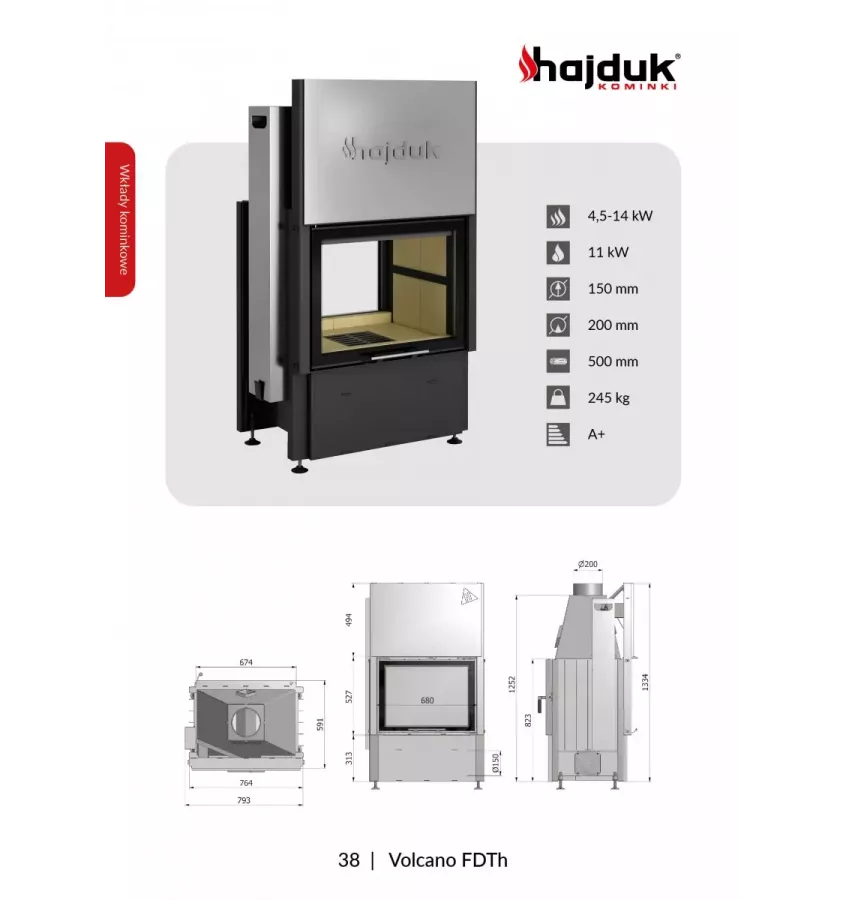

Hajduk - Volcano FDTh convection fireplace insert

Convection fireplace insert Hajduk Volcano FDTh .

• A modern double-wall steel and chamotte construction, a proven solution for many years - a fireplace for many years
• The flue of the insert is permanently and reliably welded to the body, without the use of sealing material and screws, welding robots are used, welding is carried out in a noble gas shield - the welds are of good quality and tight - safety in everyday use
• Structural elements are cut using 2 D and 3D laser cutters and then processed by bending machines and numerically controlled bending machines, including those bent in a bending cell by a robot, mechanical elements made on a modern CNC machining center - precision made by Hajduk - a Polish European producer Premium class
• Hajduk fireplace inserts are painted on a technological painting line: shot blasting, robot painting and drying - the latest technologies for the highest quality products in
• Heat-resistant ceramic glass with temperature resistance up to 800 C, depending on the insert model, it is possible to use a double glazing or pyrolytic glass
• Flame tube passing through the exceptionally high fire flue for the recovery of additional hot air from the flue gas - increased heat recovery and savings on a daily basis
• Air supply and distribution system from the outside Jet Stream Superior with two combustion speed regulators, supply of primary air through the ash pan and secondary air to the rear part of the furnace. Primary air facilitates firing up the first and subsequent wood loads, secondary air ensures economic and ecological combustion - very precise control of the combustion process
• Clear View self-cleaning system - helps keep the glass clean
• CLING door opening mechanism - light and precise operation of the mechanism ensures high operating comfort
• Inserts with the CLING mechanism are equipped with an inspection opening accessible from the inside of the furnace, which facilitates service activities without the need to destroy the often very expensive fireplace casing - no additional costs in case of failure
• A system of two deflectors, the first vermiculite to increase the temperatures in the furnace, the second steel to extend the flue gas path, high instantaneous and average efficiency, depending on the model, up to 90% - saving firewood and environmental protection
• The furnace is lined with chamotte blocks, 50 mm thick on the walls and 65 mm on the bottom (they are not lined with concrete) - temperature stabilization in the room - high thermal comfort
• High total weight of the fireplace insert - high heat accumulation - durability for many years
• The bottom of the furnace is suitably lowered in relation to the door - it provides space for loading wood and ash - comfort for the user
• A spacious, removable ash pan in the form of a bucket - convenient to use
• The structure of the door frame is optimized in terms of stiffness, they also have a limiter of excessive door deflection, a seal placed in the door leaf - long-term trouble-free service, proper adhesion and tightness of the door when operating at very high temperatures
• Brushed steel railing in inserts with doors that open upwards - elegance and modern style
• Ergonomic door handle with adjustable clamping force - possibility of independent regulation of the clamping force - facilitated service operations
• Heatsinks on the sides and back of the insert - stiffening the structure and increasing the heat exchange surface - durability and efficiency at an increased level
• Feet and screws for setting the insert and leveling the unevenness of the floor, box with a spigot for connecting the combustion air from the outside of the building - comfort of installation
• Possibility to choose the most appropriate decorative accessories - individual choice for the interior
• Hajduk fireplace inserts are suitable for houses with recuperation - the efficiency of modern construction
• Certificates of compliance with the European Standard EN 13229, the tightening of BImSchV, second threshold required from 2015 for Germany, Article 15A for Austria, prg from 2015 and LRV for Switzerland, authorizing the sale of the product in Hajduk throughout Europe
