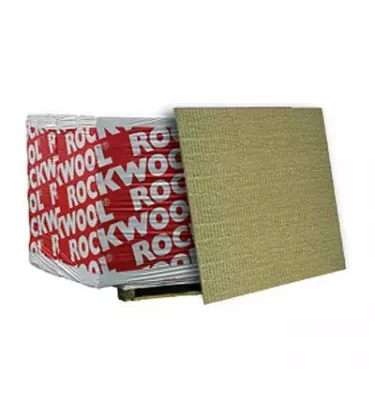

Rockwool - Conlit 150 A / F
Rockwool - Conlit 150 A / F
Index: 27468-18975

Rockwool - Conlit 150 A / F

Average grade: 0 / 0 reviews
The system for performing protection of steel constructions in fire resistance class up to R 240 and monolithic ceilings, walls, beams and reinforced concrete columns in resistance classes up to REI 240.

grubość

Save amount -
zł11,684.25 zł11,684.25
Tax included

Najniższa cena z ostatnich 30 dni: zł11,684.25 brutto. (zł9,499.39)

On product inquiry
cennikowa cena jednostkowa netto
zł87.66
za m2
cennikowa cena jednostkowa brutto
zł107.82
za m2
promocyjna cena jednostkowa netto
zł70.68
za m2
promocyjna cena jednostkowa brutto
zł86.94
za m2
całkowita cena cennikowa netto
zł11,781.50
za 134.4 m2
całkowita cena cennikowa brutto
zł14,491.25
za 134.4 m2
całkowita cena cennikowa netto
zł9,499.39
za 134.4 m2
całkowita cena cennikowa brutto
zł11,684.25
za 134.4 m2

Products description

The system for performing protection of steel structures in fire resistance class up to R 240 and monolithic ceilings, walls, beams and column in reinforced concrete in resistance classes up to REI 240.

Steel structures: Elements of steel structures (beams and columns) located inside the building and having a U / A mass index not exceeding 231 m-1 can be fire protected using the CONLIT 150 system with: CONLIT 150 P boards or CONLIT 150 A / F boards with one-sided aluminum foil cladding. Traditionally, rock mineral wool panels are joined using CONLIT GLUE glue and additional reinforcement with steel mounting nails. The solution enables four-, three- and double-sided protection in steel (beams and column in) with open profiles, exposed to fire in standard.

Monolithic reinforced concrete ceilings, walls and poles Fire protection systems CONLIT 150 should be tight enclosures of the abovementioned elements. Rock mineral wool slabs should be attached to beams, column, walls and ceiling with a steel connector in Hilti IDMS or other steel connector for fixing insulation approved for use in construction.

dimensions

Length [mm] Width [mm] Thickness [mm] Number of m2 on the pallet [m2] Number of panels on a pallet [pcs]
2000 1200 twenty 134.4 56
2000 1200 25 108 45
2000 1200 thirty 88.8 37
2000 1200 35 76.8 32
2000 1200 40 67.2 28
2000 1200 50 52.8 22

Specification

fire classification - reaction to fire
A1
MPN
27468

Download

System CONLIT 150 - Aprobata Techniczna - konstrukcje stalowe

Download file

System CONLIT 150 - Aprobata Techniczna - stropy żelbetowe

Download file

System CONLIT 150 - Certyfikat Zgodności - konstrukcje stalowe

Download file

System CONLIT 150 - Certyfikat Zgodności - stropy żelbetowe

Download file

System CONLIT 150 - Deklaracja Zgodności - konstrukcje stalowe

Download file

System CONLIT 150 - Deklaracja Zgodności - stropy żelbetowe

Download file
