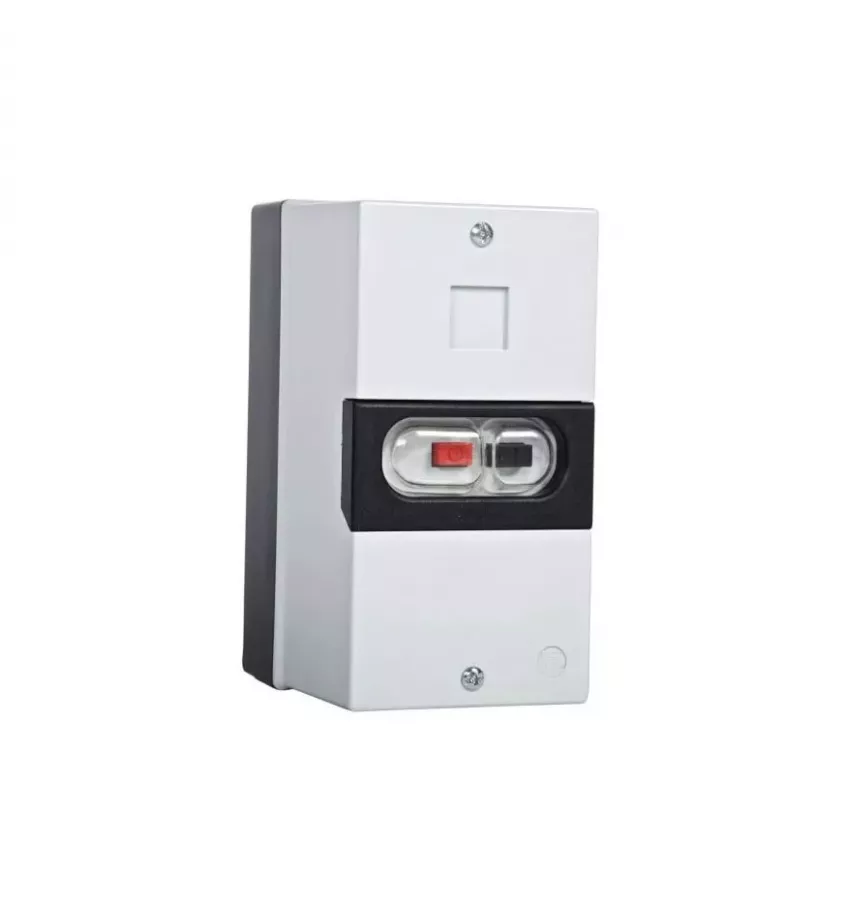

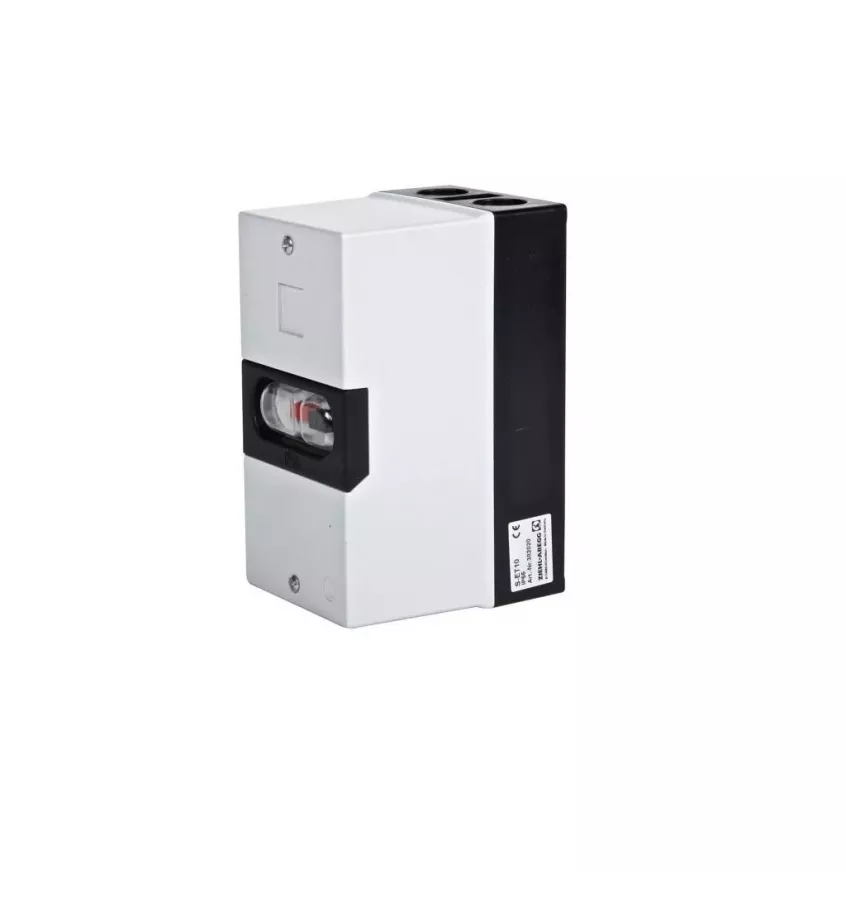

Harmann - automation - switch with thermal protection SET

Name: Harmann - automation - switch with thermal protection SET
Brand: Harmann
Price: 230.63 PLN
Availability: InStock

Average grade: 0 / 0 reviews

Thermal protection relay for single-phase 1 ~ 230 V fan motors, with thermocontact terminals (marked TK, TW, TB, TP, PTO) outside the motor housing (box or fan connection cable).

typ

Save amount -

zł230.63 zł230.63

Tax included

Najniższa cena z ostatnich 30 dni: zł230.63 brutto. (zł187.50)

On product inquiry

cennikowa cena jednostkowa netto

zł251.00

za szt

cennikowa cena jednostkowa brutto

zł308.73

za szt

promocyjna cena jednostkowa netto

za szt

promocyjna cena jednostkowa brutto

za szt

całkowita cena cennikowa netto

zł251.00

za 1 szt

całkowita cena cennikowa brutto

zł308.73

za 1 szt

całkowita cena cennikowa netto

za 1 szt

całkowita cena cennikowa brutto

za 1 szt

Products description

Thermal protection relay for single-phase 1 ~ 230 V motor with a fan in, having a thermocontact tip end (marked TK, TW, TB, TP, PTO) outside the motor housing (box or fan connection cable).

Technical data

switch with thermal protection
fixed switch-off setting 10 A
rated supply voltage 1 ~ 230 V
motor rated current range 0.4-10.0 A
IP20 protection (DIN rail mounting, model SET10E)
degree of protection IP54 (surface mounting, model SET10)
maximum working temperature 40 C (55 C for SET10E model)

To connect two thermocontact wires, make a bridge according to the diagram. After sufficient cooling of the motor windings, it is possible to switch it on again - if it happens too quickly, it will switch off after a maximum of 60 s. The power supply does not change the switching state.

Optional equipment is an auxiliary contact ZB (1NO- + 1NC) and blocking against unauthorized startup.
