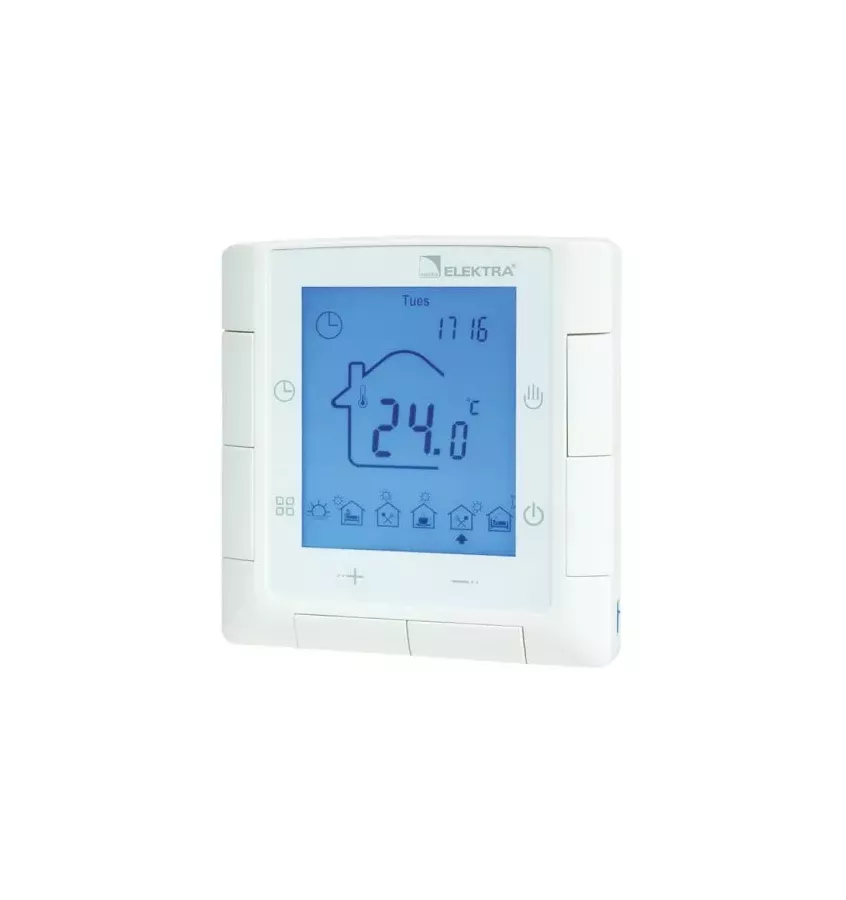

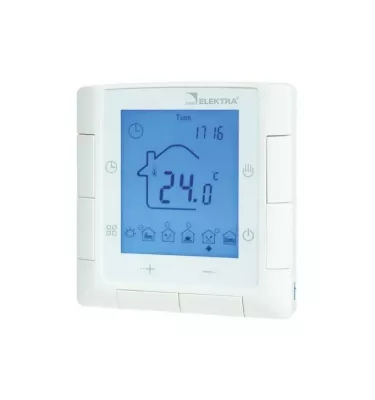

Elektra - temperature controller with ELR 20 programmer
Elektra - temperature controller with ELR 20 programmer

Elektra - temperature controller with ELR 20 programmer

Average grade: 0 / 0 reviews
Electronic 6-event controller with LCD display, adapted to control heating systems, in particular underfloor heating. Possibility to configure the temperature measurement in three variants, through the air sensor, floor sensor, as well as air and floor (limiting) sensor. The large LCD display ensures good communication with the user.
Save amount -
zł278.03 zł278.03
Tax included

Najniższa cena z ostatnich 30 dni: zł278.03 brutto. (zł226.04)

On product inquiry
cennikowa cena jednostkowa netto
zł299.00
za szt
cennikowa cena jednostkowa brutto
zł367.77
za szt
promocyjna cena jednostkowa netto
zł226.04
za szt
promocyjna cena jednostkowa brutto
zł278.03
za szt
całkowita cena cennikowa netto
zł299.00
za 1 szt
całkowita cena cennikowa brutto
zł367.77
za 1 szt
całkowita cena cennikowa netto
zł226.04
za 1 szt
całkowita cena cennikowa brutto
zł278.03
za 1 szt

Products description

Electronic 6-event controller with LCD display, adapted to control heating systems, especially underfloor heating. Possibility to configure the temperature measurement in three variants, through the air sensor, floor sensor, as well as air and floor (limiting) sensor. The large LCD display ensures good communication with the user.

The controller with a programmer combines the advantages of an electronic controller with a digital control system. Possibility of programming the temperature level in a daily and weekly cycle. The liquid-crystal display enables the reading of important data for the user, such as operating status and temperature, heating cost, operating time, etc. The controller with a programmer is equipped with many functions improving the comfort of using the heating system. Selected models have automatic tuning in which the controller learns itself when it needs to turn the heating on or off to reach the desired temperature at a certain time of the day.

Technical data

  • supply voltage 230 V ~ 50/60 Hz
  • maximum load 16 A, 230 V ~ 50/60 Hz
  • low power consumption in standby mode <1W
  • flush mounting
  • connection to one terminal of a maximum of 2 conductors in 1.5 mm or 1 conductor of 2.5 mm
  • clock functions 6 programmable events for each day
  • comfort temperature adjustment range from +5 C to +90 C for each event
  • economic temperature adjustment range from +5 C to +90 C for each event
  • regulation range of the floor sensor limiting from +16 C to +60 C
  • frost protection temperature adjustment range from +5 C to +10 C
  • manual operation mode temperature adjustment range from +5 C to +90 C
  • working time until further notice
  • hysteresis adjustable from 0.5 C to 10 C
  • degree of protection IP20
  • dimensions (height x width x depth) 90 x 86 x 45 mm
  • 46 x 55 mm display (LCD)
  • product b in accordance with PN-EN 60730-1 and PN-EN 60730-2-9
  • product marked with CE

The package includes a controller with a built-in air sensor and a floor temperature sensor.
