Darco - chimney draft generators - GCK chimney draft generator

Name: Darco - chimney draft generators - GCK chimney draft generator
Brand: Darco
Price: 1692.73 PLN
Availability: InStock

Average grade: 0 / 0 reviews

The draft generator is a chimney cowl mounted on top of a ventilation, combustion or smoke chimney (only wood-fired boilers). Its task is to increase and stabilize the chimney draft regardless of the height, cross-section of the chimney, wind or other external factors.

diameter

wariant

Save amount -

zł1,692.73 zł1,692.73

Tax included

Najniższa cena z ostatnich 30 dni: zł1,692.73 brutto. (zł1,376.20)

On product inquiry

cennikowa cena jednostkowa netto

zł1,376.20

za szt

cennikowa cena jednostkowa brutto

zł1,692.73

za szt

promocyjna cena jednostkowa netto

za szt

promocyjna cena jednostkowa brutto

za szt

całkowita cena cennikowa netto

zł1,376.20

za 1 szt

całkowita cena cennikowa brutto

zł1,692.73

za 1 szt

całkowita cena cennikowa netto

za 1 szt

całkowita cena cennikowa brutto

za 1 szt

Products description

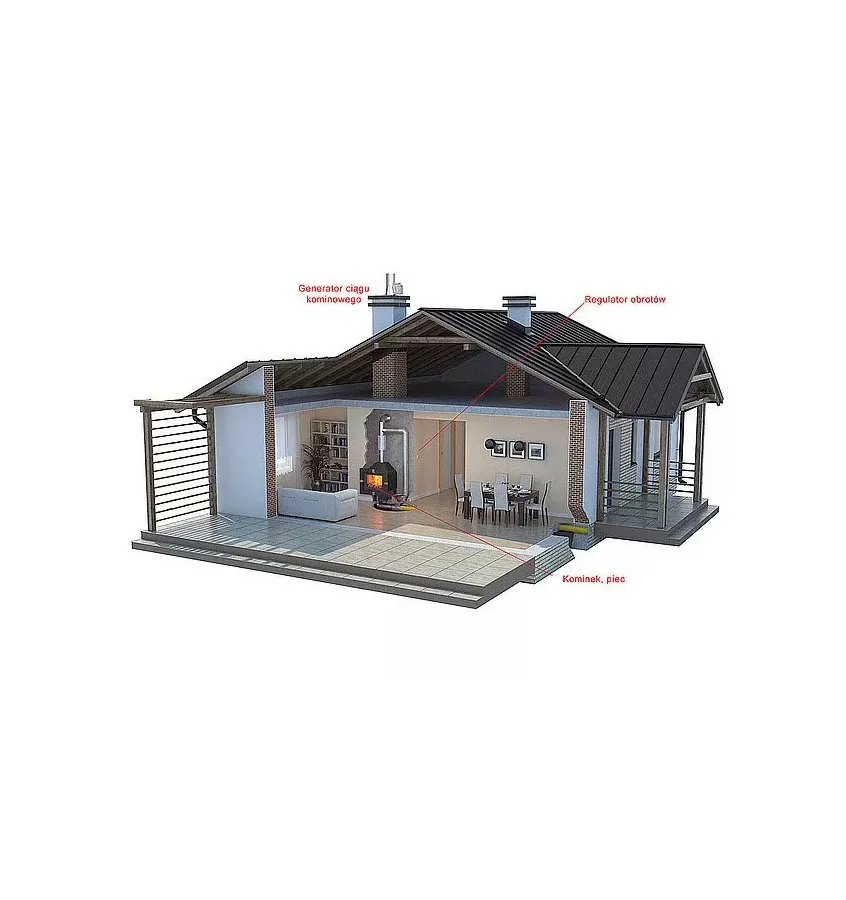

The draft generator is a chimney cowl mounted on top of a ventilation, combustion or smoke chimney (only wood-fired boilers). Its task is to increase and stabilize the chimney draft regardless of the height, cross-section of the chimney, wind or other external factors. The draft generator creates a vacuum in the chimney flue by using a physical phenomenon - injection. It consists in creating a negative pressure in the main chimney duct by creating an air stream in the secondary duct. The air flow is generated by a fan located outside the chimney flue. This method of operation does not block the chimney and also provides the device with high temperature resistance. The attachment is mounted on chimney outlets, especially in single-family housing.

Application

for draft support in flue and smoke chimneys (only wood-fired boilers)
when there are air swirls at the chimney outlet caused by its unfavorable location
with unfavorable terrain configuration, strong and frequent winds
when the flue pipe is short or its diameter is small

Additional equipment

DA-GCK peak (openable)
The main function of the roof is protection against rain and snow. However, thanks to the unique design, it not only blocks the exhaust from the generator, but significantly supports draft in blowing wind. The roof has an openable lid that allows easy access to the chimney without removing the base or using tools.
