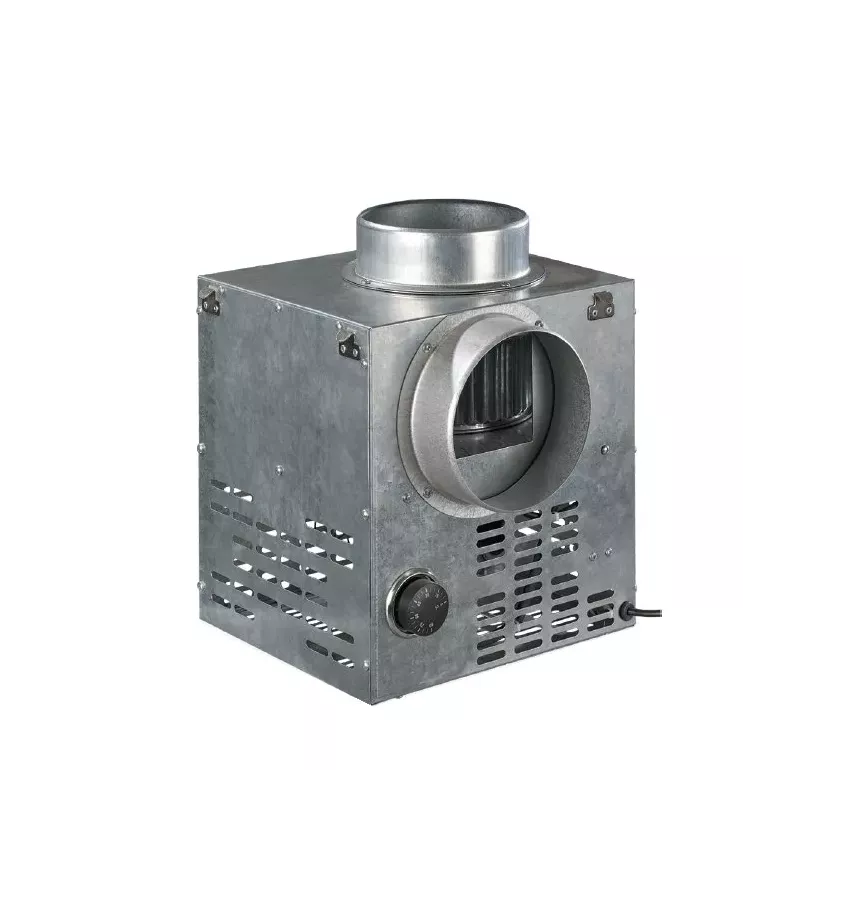

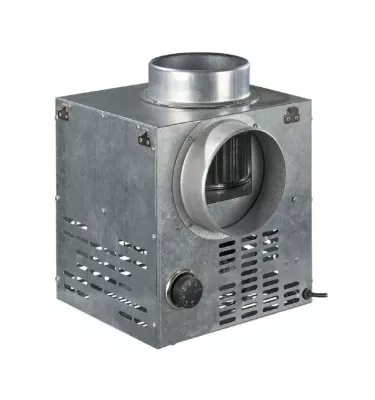

Větrací otvory - krbový ventilátor KAM

KAM is a centrifugal fireplace fan that distributes the warm air generated during burning in the fireplace. Such a system is used to heat the house in which you live periodically, as well as an additional source of heating, which allows you to reduce the costs associated with heating the house in the winter. Adapted for installation at any angle relative to the fan axis.

Building

The fan uses a single-phase motor. Insulation class - F. The motor has a built-in protection with automatic restart to prevent overheating. The electric motor is switched off from the transported (hot) air stream and equipped with a rotor with bent blades to the front. Ball bearings were used. The fan casing is made of galvanized steel with thermal and sound insulation made of non-combustible mineral wool. The housing in the part of the electric rotor is equipped with perforation, ensuring air circulation and cooling of the fan motor. The fan is equipped with a thermostat, with which you can set the temperature at which the fan will turn on and off.

Speed control

Speed regulation can be done smoothly (thyristor regulator) as well as stepwise (transformer regulator). Fans can be connected by a pair of units to one controller, provided that the available power and working current will not exceed the nominal parameter in the controller.
