Větrací otvory - ventilátor se smíšeným průtokem TT PRO

Name: Větrací otvory - ventilátor se smíšeným průtokem TT PRO
Brand: Vents
Price: 337.14 PLN
Availability: InStock

Average grade: 0 / 0 reviews

Mixed flow duct fan with reduced power consumption and increased static pressure. Capacity up to 2050 m3 / h. Used in supply-exhaust ventilation systems that require a relatively high pressure, strong air stream and low noise level. It is an excellent solution for ventilation installations of individual buildings, collective residence and public utility buildings. It is adapted to transport air at a temperature of up to + 60 ° C.

model

Save amount -

337,14 zł 337,14 zł

S DPH

Najniższa cena z ostatnich 30 dni: 337,14 zł brutto. (274,10 zł)

On product inquiry

cennikowa cena jednostkowa netto

431,00 zł

za szt

cennikowa cena jednostkowa brutto

530,13 zł

za szt

promocyjna cena jednostkowa netto

za szt

promocyjna cena jednostkowa brutto

za szt

całkowita cena cennikowa netto

431,00 zł

za 1 szt

całkowita cena cennikowa brutto

530,13 zł

za 1 szt

całkowita cena cennikowa netto

za 1 szt

całkowita cena cennikowa brutto

za 1 szt

Products description

Mixed flow duct fan with reduced power consumption and increased static pressure. Yield 2050 m ³ / h. Used in supply-exhaust ventilation systems that require a relatively high pressure, strong air stream and low noise level. It is an excellent solution for building ventilation systems in individual, collective and public buildings. It is adapted to transport air at a temperature of up to + 60 ° C.

Technical data

compact dimensions and the possibility of disassembling the rotor with the motor without the need to interfere with the ventilation system
the casing of the fan and the impeller is made of high-quality ABS plastic, which has a very high durability and mechanical properties
single-phase motor on ball bearings with two rotational speeds
regulation by means of a thyristor regulator or a switch in the fan speed
for horizontal or vertical mounting
installation in parallel or serial configuration
available versions with a time delay (T)
direct access to the engine
motor protection class IP X4

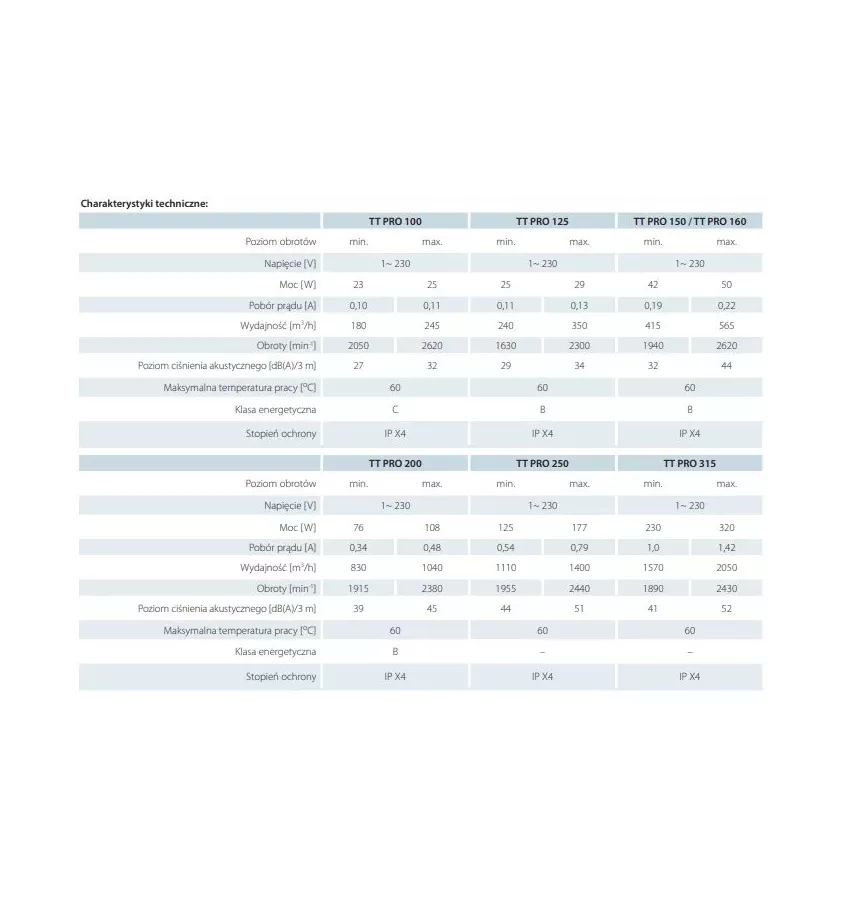

TT Pro Dane techniczne
