Walraven - montážní sada pro stoupačky BISMAT® 1000

Name: Walraven - montážní sada pro stoupačky BISMAT® 1000
Brand: Walraven
Price: 84.69 PLN
Availability: InStock

Average grade: 0 / 0 reviews

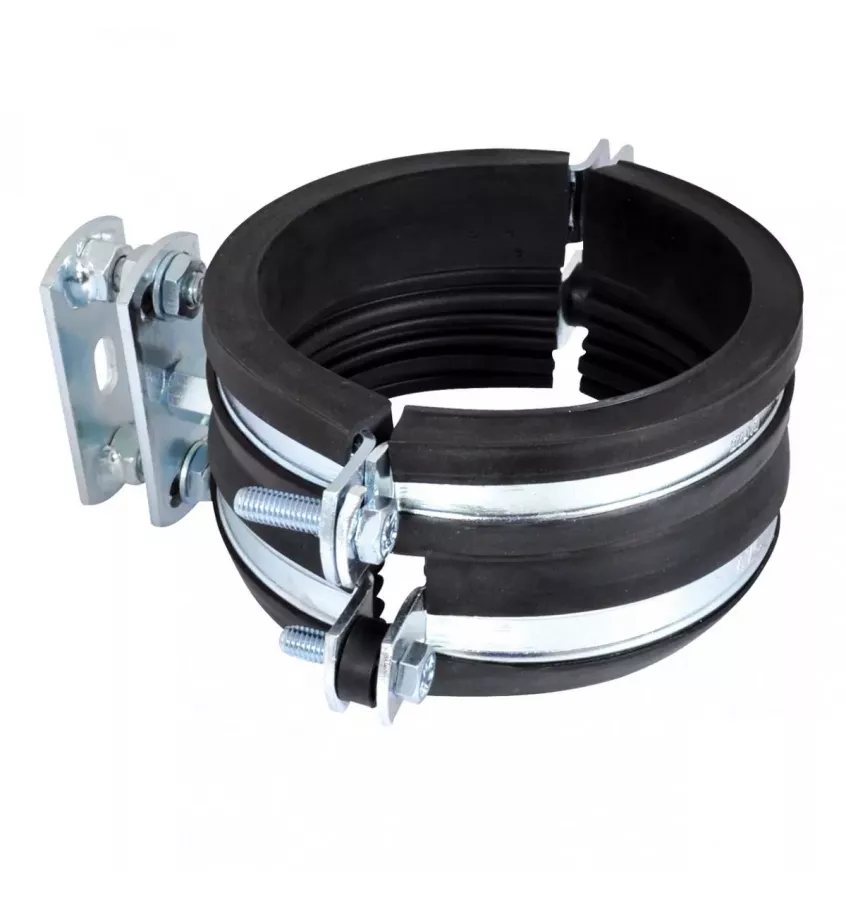

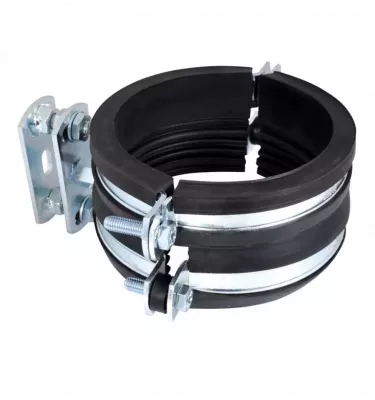

Adjustable wall plate with clamps: supporting BISMAT SL and fixing BISMAT® SX included. Unique design for mounting vertical plastic, steel and cast iron pipes. Installation every second floor, if the floor height does not exceed 3 m (from the diameter of pipes O 125 mm, on each floor of the building). Such a mounting avoids stresses through an unlimited range of adjustments. Possibility to set the distance between the pipes and the wall.

wariant

Save amount -

84,69 zł 84,69 zł

S DPH

Najniższa cena z ostatnich 30 dni: 84,69 zł brutto. (68,85 zł)

Minimální množství pro objednání tohoto produktu je 100.

On product inquiry

cennikowa cena jednostkowa netto

123,83 zł

za szt

cennikowa cena jednostkowa brutto

152,31 zł

za szt

promocyjna cena jednostkowa netto

za szt

promocyjna cena jednostkowa brutto

za szt

całkowita cena cennikowa netto

123,83 zł

za 1 szt

całkowita cena cennikowa brutto

152,31 zł

za 1 szt

całkowita cena cennikowa netto

za 1 szt

całkowita cena cennikowa brutto

za 1 szt

Products description

adjustable wall plate with clamps: supporting BISMATSL and BISMAT mountingSX included
a unique structure for the installation of vertical plastic, steel and cast iron pipes

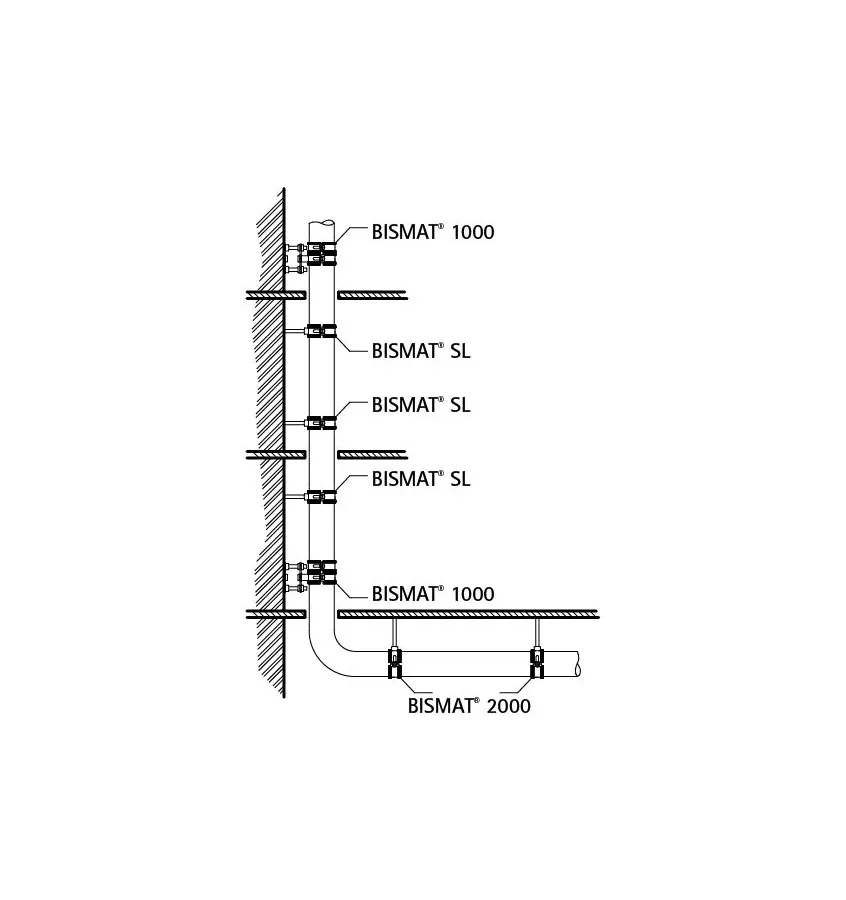

installation every second floor, if the height of the floor does not exceed 3 m (from the diameter of pipes 125 mm, on each floor of the building)
this type of mounting avoids stresses through an unlimited adjustment range
possibility to set the distance between the pipes and the wall
electro galvanized
sound insulating cladding, EPDM, black
the cladding is resistant to aging
sound insulation tested according to DIN 4109 (insulation above standard)

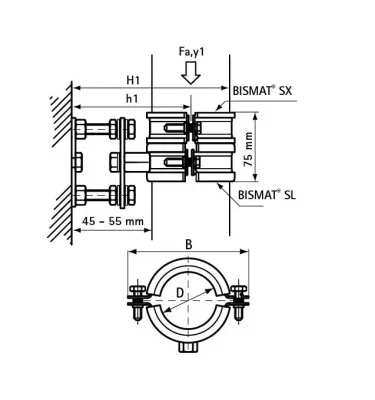

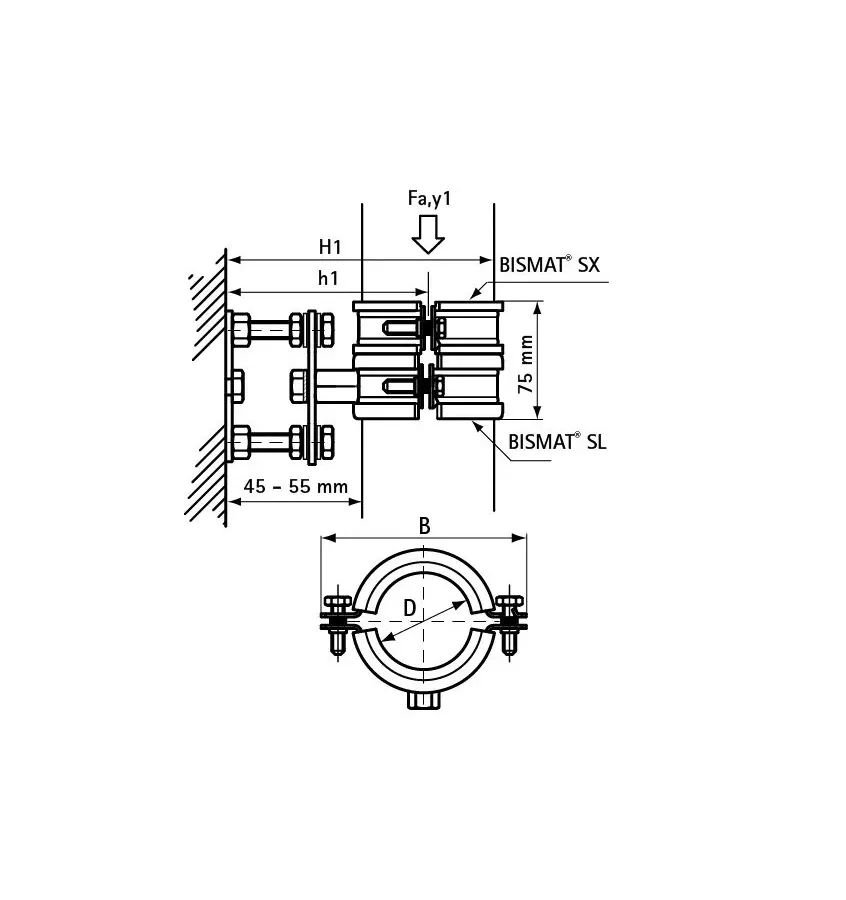

Dimensions and packaging

Item No.	D	DN	Type	B	H1	h1	Fa, y1	Pud.
	(mm)	(mm)		(mm)	(mm)	(mm)	(N)
336 3 070	75	70	KA	144	140 - 150	93 - 102	650	5
336 3 075	78	70	SML / GA	154	140 - 150	93 - 103	650	5
336 3 080	83	80	SML / GA	144	143 - 153	94 - 104	820	5
336 3 100	110	100	KA / SML / GA	176	175 - 185	110 - 120	820	5
336 3 125	125	125	KA	192	190 - 200	118 - 128	820	5
336 3 137	135	125	SML / GA	192	200 - 210	123 - 133	820	5
336 3 150	160	150	KA / SML / GA	233	235 - 245	137 - 147	820	5
336 3 200	210	200	SML / GA	284	280 - 290	162 - 172	820	5
