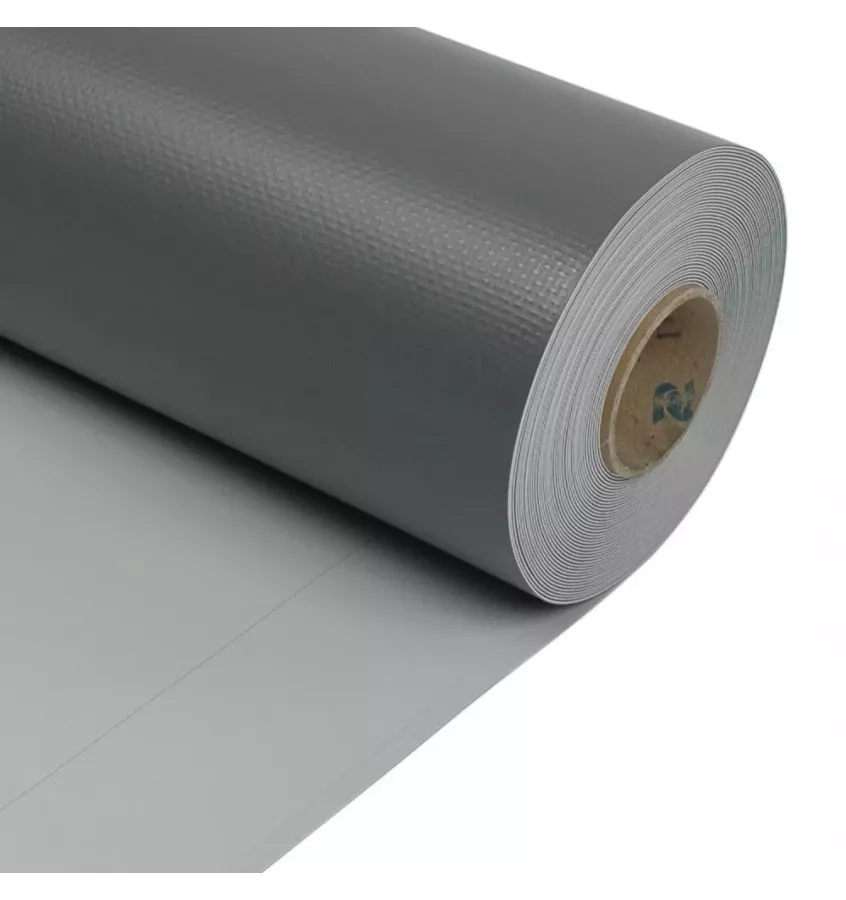

Sika - Sikaplan G -12 hydroizolační membrána

Polyester mesh reinforced, multi-layer synthetic roofing membrane based on high-quality polyvinyl chloride (PVC). Contains UV radiation stabilizers and a flame retardant (in accordance with PN-EN 13956). Roof insulation membrane is used to cover flat surfaces of roofs - roof coverings mechanically attached to the roof substructure. Suitable for direct exposure in all zones. climatic.

Features

• resistance to permanent UV radiation
• resistance to the constant exposure to wind
• recyclable
• resistance to common environmental pollutants
• high vapor permeability
• hot air welding without open fire

Technical data

• structured surface
• dark gray bottom layer
• effective thickness 1.2 mm -5% / + 10% (according to PN-EN 1849-2)
• straightness ≤ 30 mm (according to PN-EN 1848-2)
• flatness ≤ 10 mm (according to PN-EN 1848-2)
• mass per unit area 1.5 kg / m -5 / + 10% (according to PN-EN 1849-2)
• impact resistance: hard substrate ≥ 300 mm; soft substrate ≥ 600 mm - according to PN-EN 12691
• hail resistance: rigid substrate ≥ 17 m / s; flexible substrate ≥ 25 m / s - according to PN-EN 13583
• tensile strength: longitudinally (md) ≥ 1000 N / 50 mm; transversely (cmd) ≥ 900 N / 50 mm - according to PN-EN 12311-2
• elongation: longitudinal (md) ≥ 15%; transverse (cmd) ≥ 15% - according to PN-EN 12311-2
• dimensional stability: longitudinally (md) ≤ | 0.5 |%; transverse (cmd) ≤ | 0.5 |% - according to PN-EN 1107-2
• tear strength: longitudinally (md) ≥ 150 N; transverse (cmd) ≥ 150 N - according to PN-EN 12310-2
• shear resistance of the joint ≥ 600 N / 50 mm (according to PN-EN 12317-2)
• bendability at low temperatures ≤ -25 C (according to PN-EN 495-5)
• behavior due to external fire B _ROOF (t1) <20; B _ROOF (t3) <10 - according to PN-EN 13501-5
• reaction to fire class E (according to PN-EN ISO 11925-2, classification according to PN-EN 13501-1)
• influence of liquid chemicals, including water on demand (according to PN-EN 1847)
• resistance to UV radiation meets (> 5000 h / grade 0) (PN-EN 1297)
• water vapor permeability = 20,000 (according to PN-EN 1931)
• watertightness according to PN-EN 1928
• application conditions: ambient temperature minimum -15 C / maximum +60 C; substrate temperature minimum -25 C / maximum +60 C
• roll storage conditions must be stored at a temperature between +5 C and +30 C, horizontally on pallets, protected against direct sunlight, rain, snow, ice, etc. do not put pallets or other materials on rolls during transport and storage; The product should be best used within 5 years from the production date
• length 20 m
