Index: 25570-13390

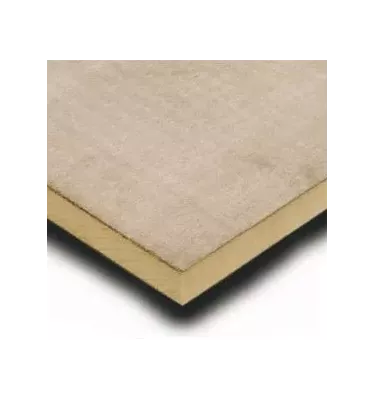

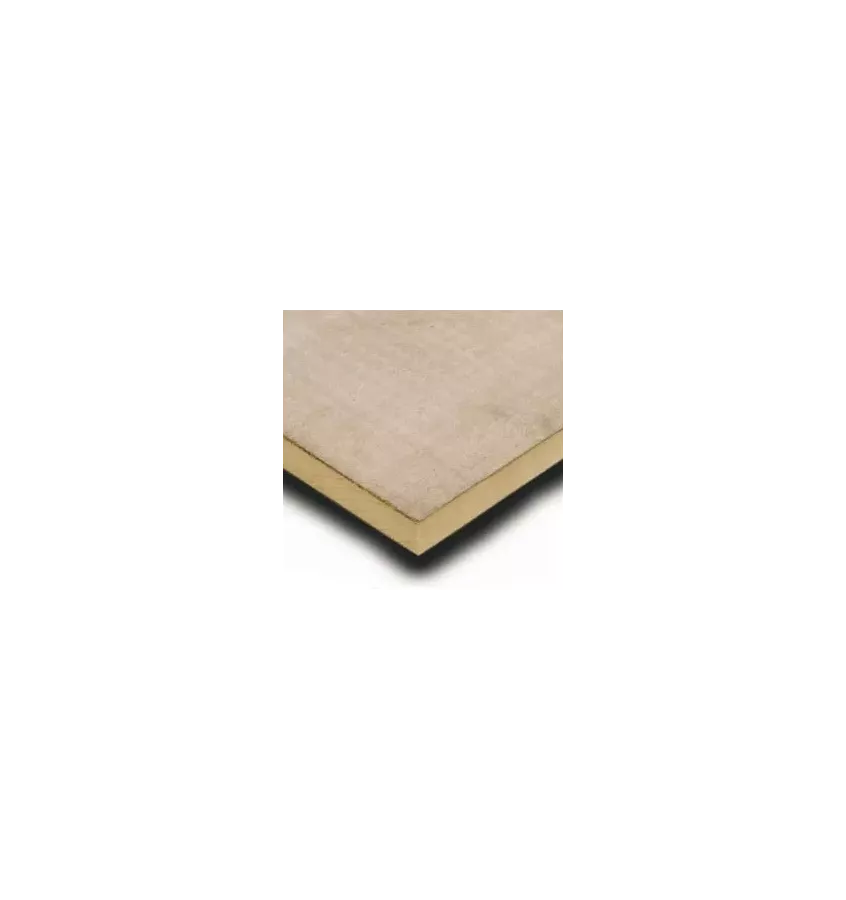

Recticel - Eurothane Bi - 4 talíř

Average grade: 0 / 0 reviews
Intended mainly as thermal insulation of flat roofs and terraces for waterproofing bituminous membranes. Eurothane Bi-4 is a hard polyurethane thermal insulation board 100% freon-free. Both sides coated with bitumenized glass fiber.

grubość

Save amount -
48,97 zł 48,97 zł
S DPH

Najniższa cena z ostatnich 30 dni: 48,97 zł brutto. (39,82 zł)

Minimální množství pro objednání tohoto produktu je 16.
On product inquiry
cennikowa cena jednostkowa netto
63,14 zł
za m2
cennikowa cena jednostkowa brutto
77,66 zł
za m2
promocyjna cena jednostkowa netto
55,30 zł
za m2
promocyjna cena jednostkowa brutto
68,02 zł
za m2
całkowita cena cennikowa netto
45,46 zł
za 0.72 m2
całkowita cena cennikowa brutto
55,92 zł
za 0.72 m2
całkowita cena cennikowa netto
39,82 zł
za 0.72 m2
całkowita cena cennikowa brutto
48,97 zł
za 0.72 m2

Products description

Mainly intended as thermal insulation for flat roofs and terrace for bitumen waterproofing membranes.
Eurothane Bi-4 is a hard polyurethane thermal insulation board 100% freon-free. Both sides coated with bitumenized glass fiber.

Technical data

  • thermal conductivity coefficient: according to EN 12667 λD value
    • for thickness ≤ 60 mm - 0.028 W / mK,
    • for thickness ≥ 60 mm - 0.027 W / mK,
  • compressive strength CS (10 / Y) 120 according to EN826: at min. 120 kPa - 10% deformation,
  • resistance to r uniform load: class C,
  • resistance to r uniform load: DLT (2) 5 according to EN 1605 at 40 kPa at 70 C within 168 h ≤ 5%,
  • cladding: bituminized glass fiber 400 g / m2,
  • dimensional stability: DS (TH) 8 according to EN 1604
  • water absorption after 48h 70 C, 90% HR
  • length deviation ≤ 2%
  • width deviation ≤ 2%
  • deviation in thickness ≤ 6%


Other dimensions possible upon agreement.

Specification

požární klasifikace - reakce na oheň
F
objemová hmotnost [kg / m3]
30 kg/m³
rozměry [mm]
1200 x 600 mm
okrajová úprava
proste
MPN
25570

Ke stažení

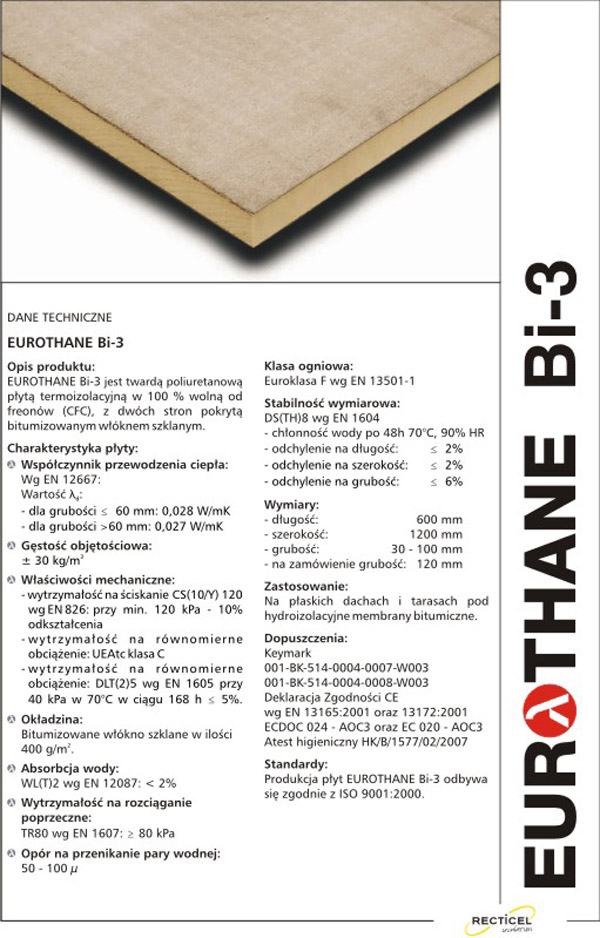

Recticel płyta Eurothane Bi - 3 - Karta Techniczna

Download file

Recticel Eurothane Bi-4 - Karta techniczna

Download file

Recticel płyta Eurothane Bi - 3 - Deklaracja Zgodności 1

Download file

Recticel płyta Eurothane Bi - 3 - Deklaracja Zgodności 2

Download file
