Tatarek - regulátor pro topné systémy RT -08G. Buffer Solar

Average grade: 0 / 0 reviews

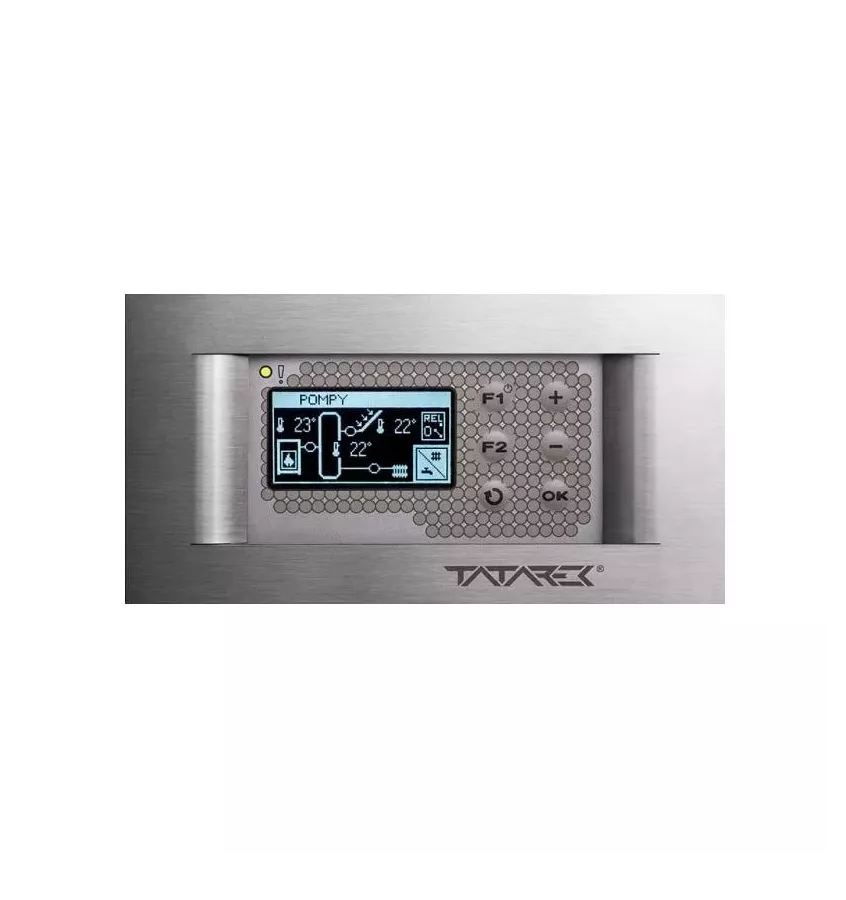

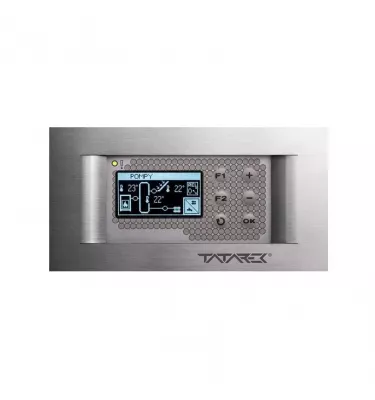

Control set with graphic display. It is used to operate heating systems fed from a fireplace with a water jacket, with regulation of the air supply to the combustion chamber by means of a cold air damper. Provides automatic operation of the buffer loading pump. It also enables heat distribution via a circulation pump to the central heating system. The controller also allows operation of the solar collector pump supplying the buffer. A voltage free contact allows you to switch on or off another device (e.g. gas oven).

wymiary

Save amount -
1 170,84 zł 1 170,84 zł
S DPH

Najniższa cena z ostatnich 30 dni: 1 170,84 zł brutto. (951,90 zł)

On product inquiry
cennikowa cena jednostkowa netto
1 436,00 zł
za szt
cennikowa cena jednostkowa brutto
1 766,28 zł
za szt
promocyjna cena jednostkowa netto
951,90 zł
za szt
promocyjna cena jednostkowa brutto
1 170,84 zł
za szt
całkowita cena cennikowa netto
1 436,00 zł
za 1 szt
całkowita cena cennikowa brutto
1 766,28 zł
za 1 szt
całkowita cena cennikowa netto
951,90 zł
za 1 szt
całkowita cena cennikowa brutto
1 170,84 zł
za 1 szt

Products description

Control set with graphic display. It is used to operate the heating system supplied from a fireplace with a water jacket, with regulation of the air supply to the combustion chamber by means of a cold air damper. Provides automatic operation of the buffer loading pump. It also allows heat distribution via a circulation pump to the central heating system. The controller also allows operation of the solar collector pump supplying buffer. A voltage free contact allows you to switch on or off another device (e.g. gas oven).

Equipment

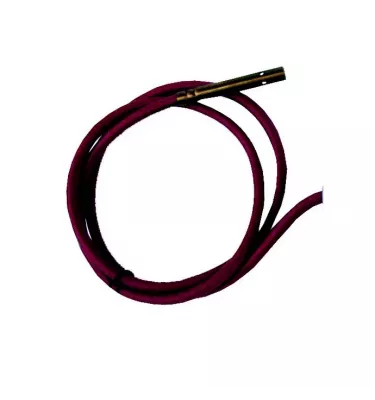

  • three water temperature sensors

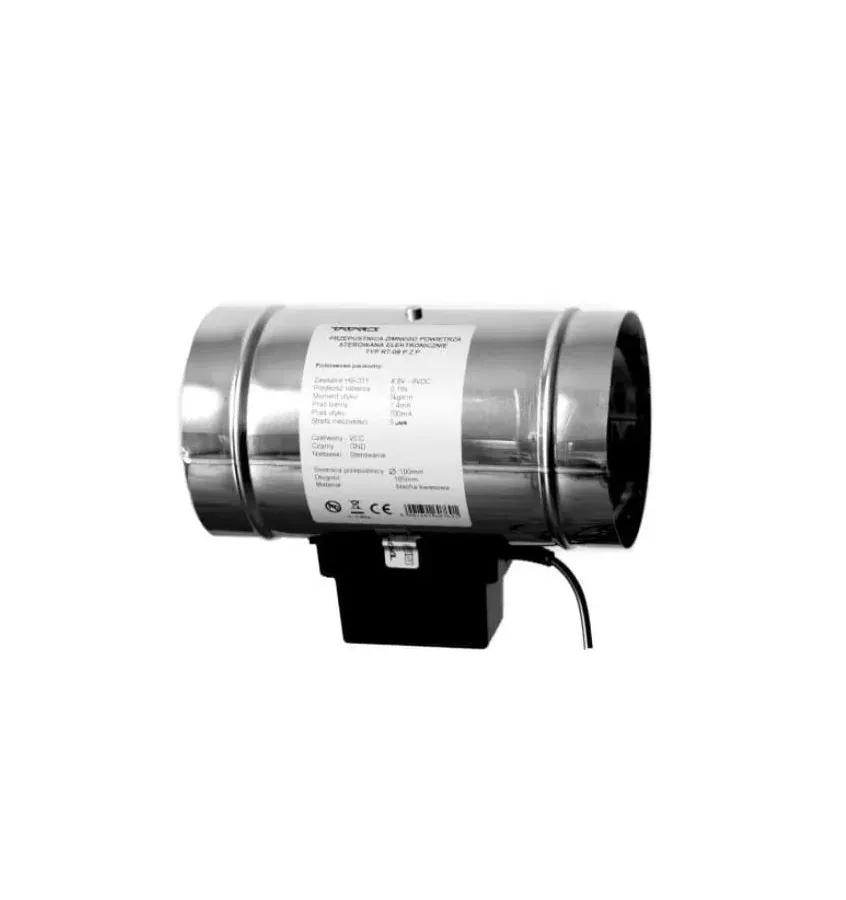

  • air supply damper
  • mounting box for concealed installation
  • Titanium Design version
  • graphic display

Basic controller functions

  • smooth control of the throttle regulating combustion air supply
  • optimization of the combustion process in the fireplace
  • control of the charging pump operation Buffer
  • circulation pump control
  • controlling solar pump operation
  • various modes of operation for the central heating pump
  • the function of blocking another source of heat when the fireplace provides heat to the installation
  • integrated zone thermostat function
  • memory in case of power failure - restoration of previously made settings

Technical data

  • 230 V / 50 Hz power supply
  • no load power consumption 5 W
  • maximum connected power 750 W
  • number of outputs controlling 3 * 250 W / 230 V / 50 Hz pumps
  • one voltage-free control output
  • number of outputs controlling the throttle drive 1 * 5 V / 500 mA / DC
  • quantity sensor in water temperature 3 * PT1000 (-50 ... + 200 C)
  • accuracy of temperature measurement 2 C
  • temperature measurement resolution 0.5 C
