Tatarek - regulátor pro topné systémy RT -08P Kominek Lux

Average grade: 0 / 0 reviews

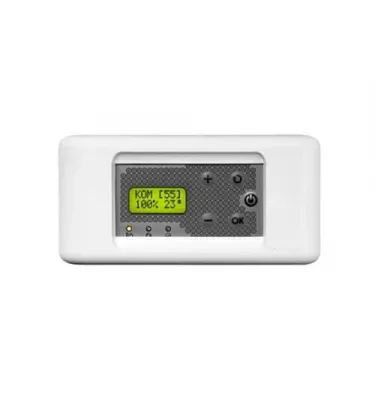

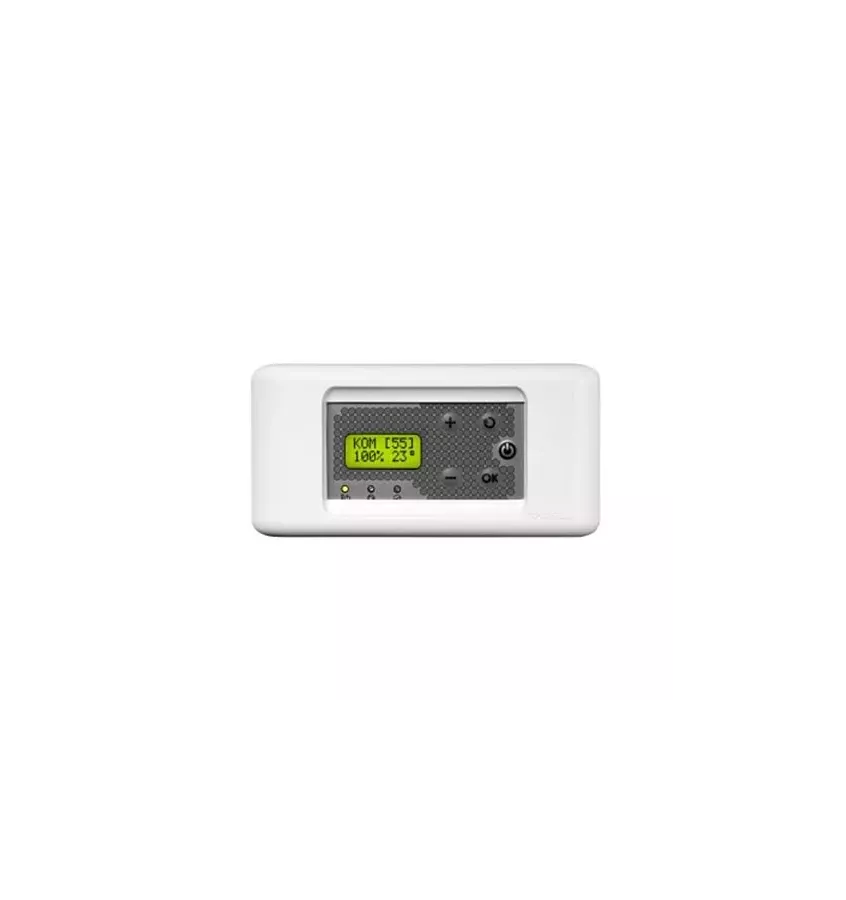

The control set is intended for operating heating systems fed from a fireplace with a water jacket, with regulation of the air supply to the combustion chamber via a cold air damper. Has an LCD display. It provides automatic operation of two central heating circulating pumps and a pump charging the DHW system. A voltage free contact allows you to switch on or off another device (e.g. gas oven).

wymiary

wariant

Save amount -
995,56 zł 995,56 zł
S DPH

Najniższa cena z ostatnich 30 dni: 995,56 zł brutto. (809,40 zł)

On product inquiry
cennikowa cena jednostkowa netto
1 227,00 zł
za szt
cennikowa cena jednostkowa brutto
1 509,21 zł
za szt
promocyjna cena jednostkowa netto
809,40 zł
za szt
promocyjna cena jednostkowa brutto
995,56 zł
za szt
całkowita cena cennikowa netto
1 227,00 zł
za 1 szt
całkowita cena cennikowa brutto
1 509,21 zł
za 1 szt
całkowita cena cennikowa netto
809,40 zł
za 1 szt
całkowita cena cennikowa brutto
995,56 zł
za 1 szt

Products description

The control set is designed to operate a heating system powered by a fireplace with a water jacket, with regulation of the air supply to the combustion chamber via a cold air damper. Has an LCD display. It provides automatic operation of two central heating circulation pumps and a pump for charging the hot utility water system. A voltage free contact allows you to switch on or off another device (e.g. gas oven).

Equipment

  • three water temperature sensors

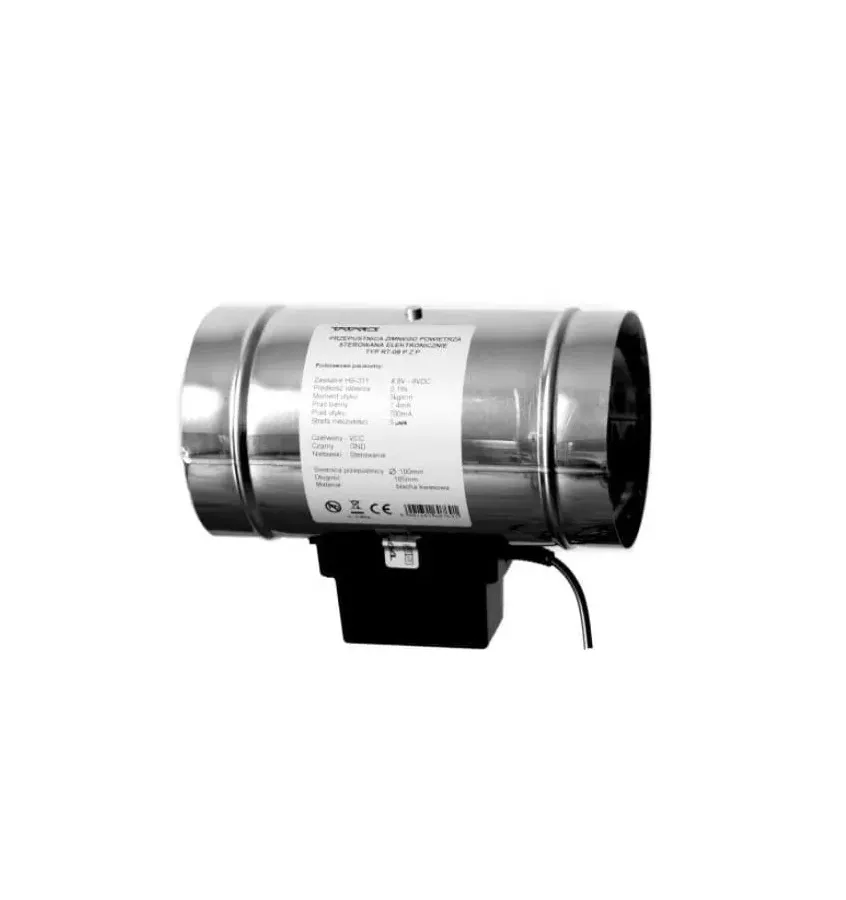

  • air supply damper
  • mounting box for concealed installation
  • LCD display

Basic controller functions

  • DHW pump control
  • different operating modes for the DHW pump
  • integrated zone thermostat function
  • smooth control of the throttle regulating combustion air supply
  • optimization of the combustion process in the fireplace
  • controlling the operation of two circulation pumps
  • the function of blocking another source of heat when the fireplace provides heat to the installation
  • memory in case of power failure - restoration of previously made settings

Technical data

  • damper type unsealed
  • 230 V 50 Hz power supply
  • one voltage-free control output
  • maximum connection power 3 x 250 W / 230 V / 50 Hz
  • number of sensor in 3
  • working temperature 0-40 C
  • accuracy of temperature measurement 2 C
  • temperature measurement resolution 0.5 C
  • dimensions: 148 x 80 x 55
  • power consumption 5 W
  • maximum connected power 750 W
  • KTY81 temperature sensor (0 ... + 100 C)
  • LVD in accordance with PN-EN 60730-2-1: 2002
