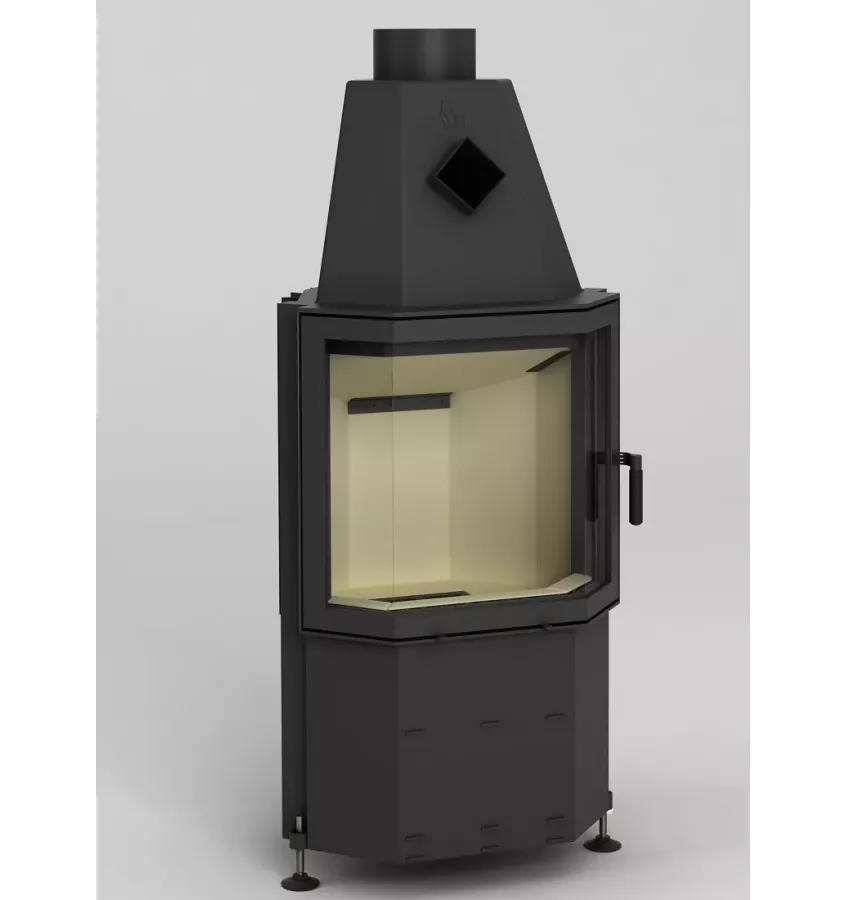

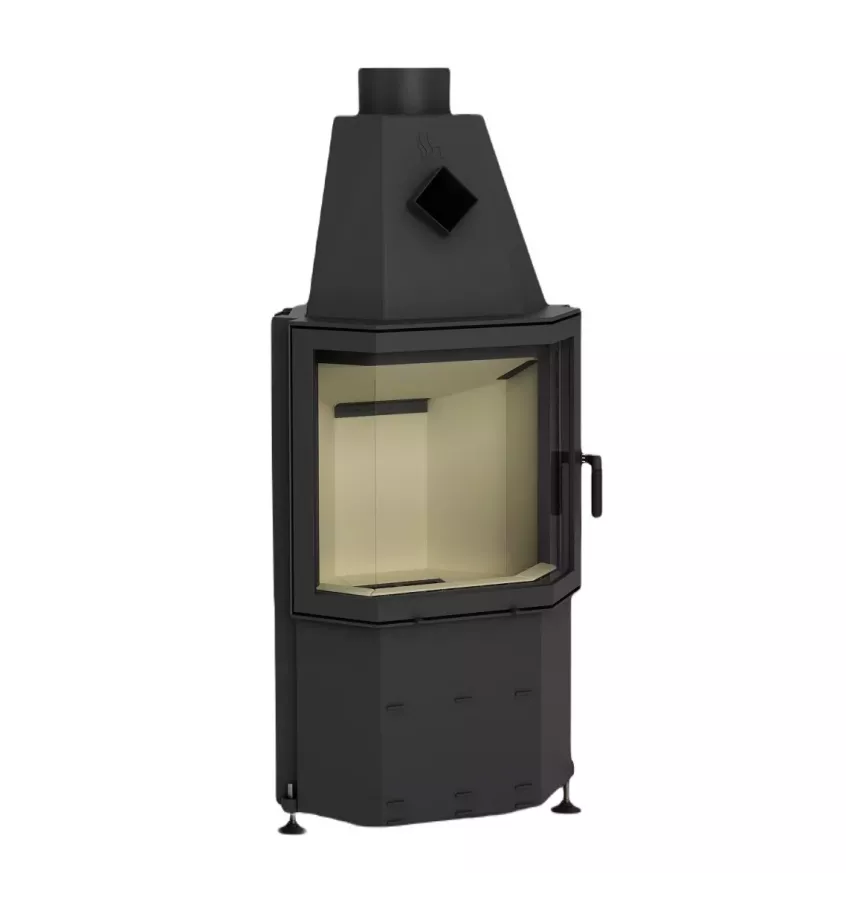

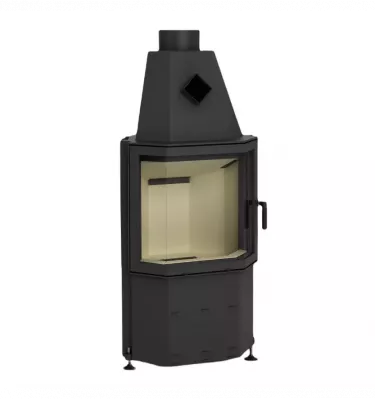

Konvekční krbová vložka Hajduk - Prisma M

Convection fireplace insert Hajduk Prisma M.

• Modern double-wall steel and chamotte construction - a solution proven for years - a fireplace for many years
• The flue of the insert is permanently and solidly welded to the body, without the use of sealing materials and screws, welding robots are used, welding is carried out in a noble gas shield - the welds are of good quality and tight - safety in everyday use
• Structural elements are cut using 2 D and 3D laser cutters and then processed by bending machines and numerically controlled benders, including bent in a bending cell by a robot, mechanical elements made on a modern CNC machining center - precision made at Hajduk - Polish European manufacturer Premium class
• Hajduk fireplace inserts are painted on a technological painting line: shot blasting, robot painting and drying - the latest technologies for the highest quality product in
• Heat-resistant ceramic glass with temperature resistance up to 800 C, depending on the insert model, it is possible to use a double glass or pyrolytic glass
• Flue pipe passing through an extremely high furnace flue for the recovery of additional hot air from flue gases - increased heat recovery and savings on a daily basis
• The system for supplying and distributing air from the outside Jet Stream Superior with two combustion speed controllers, supplying primary air via the ash pan and secondary air according to the rear part of the furnace. Primary air facilitates firing up the first and subsequent loads in wood, the secondary air ensures economical and ecological combustion - very precise control of the combustion process
• Clear View self-cleaning glass system - helps to keep the glass clean
• Mechanism for lifting doors that open to CLING - light and precise operation of the mechanism ensures high comfort of use
• The inserts with the CLING mechanism are equipped with an inspection hole accessible from the inside of the furnace, which facilitates service operations without having to destroy the often very expensive fireplace casing - no additional cost in case of failure
• Double deflector system, first vermiculite for increasing the temperature in the furnace, second steel for extending the exhaust path, high instantaneous efficiency and average up to 90% depending on the model - saving of firewood and environmental protection
• The hearth lined with chamotte shapes 50 mm thick on the walls and 65 mm on the bottom (they are not lined with concrete) - room temperature stabilization - high thermal comfort
• High total mass of the fireplace insert - high heat accumulation - durability for many years
• The furnace is lowered sufficiently in relation to the door - it provides space for loading wood and ash - comfort for the user
• Capacious removable ash tray in the form of a bucket - ease of use
• The door frame structure is optimized in terms of stiffness, it also has a door over-limit limiter, a seal placed in the door leaf - long-term trouble-free operation, proper adhesion and tightness of the door when operating at very high temperatures
• Brushed steel railing in inlays with doors opening to the top - elegance and modern style
• Ergonomic door handle with adjustable clamping force - the possibility of independent adjustment of the clamping force - simplified service operations
• Heatsinks on the sides and back of the insert - stiffening the structure and increasing the heat exchange surface - durability and efficiency at an increased level
• Feet and screws to set the insert and level the surface unevenness, box with a spigot for connecting combustion air from outside the building - assembly convenience
• Possibility to choose the most suitable decorative accessories - individual choice of interior
• Hajduk fireplace inserts are suitable for a home with recuperation - the efficiency of modern construction
• Certificates of compliance with the European Standard EN 13229, tightening BImSchV pr second required from 2015 for Germany, art. 15A for Austria pr 2015 and LRV for Switzerland, authorizing the sale of a product in Hajduk throughout Europe
