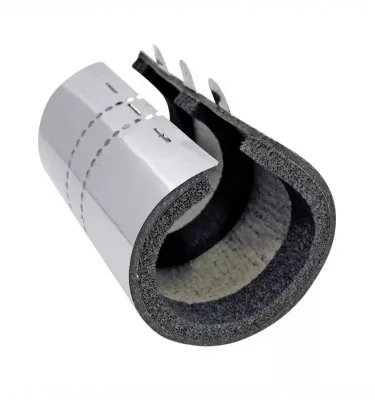

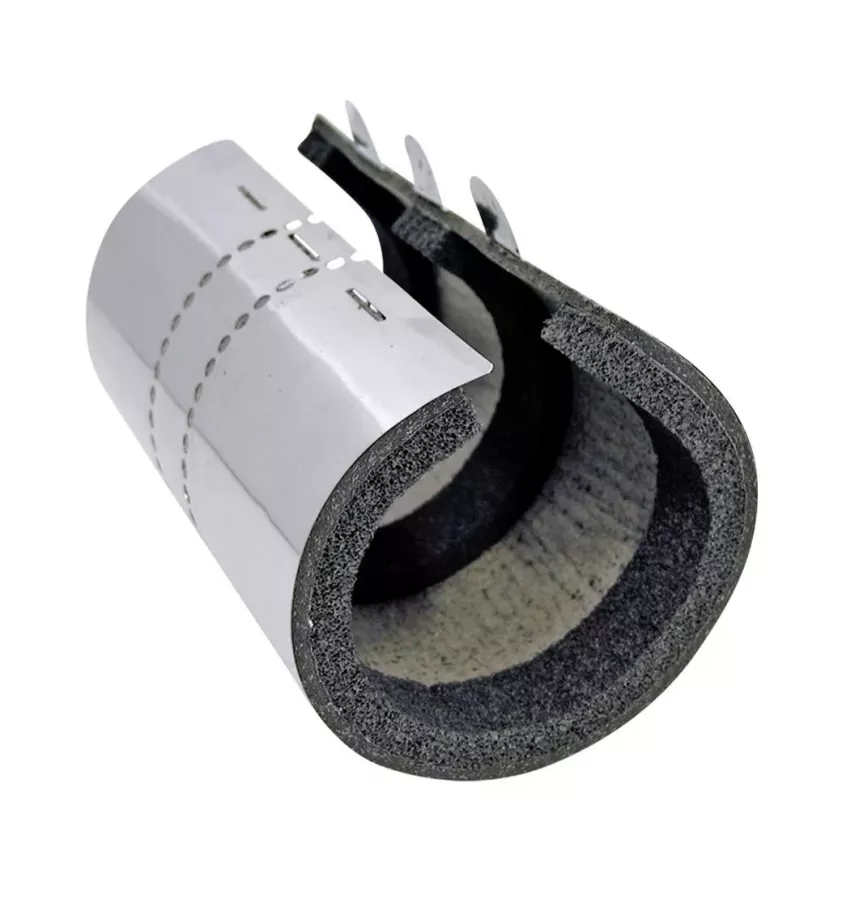

Požární obojky Walraven - BIS Pacifyre MK II

BIS Pacifyre MK II Fire collars allow the passage of pipes through fire partitions to be secured quickly, easily and in accordance with the art of construction. For making fire penetrations on plastic pipes.

properties

• pipe penetrations through the wall are in accordance with EN 1366-3 (masonry walls or light buildings and ceilings with fire resistance requirements)
• flanges are an effective barrier to fire and cold smoke and provide sound insulation
• ensure free expansion and contraction of the pipe due to thermal expansion of the material
• space saving, can be installed in hard to reach places
• high flexibility during assembly (maximum reduction of the element in the flange protruding beyond the partition)
• no tools or drilling required
• 120 minutes fire resistance, detailed data in technical approval for BIS Pacifyre AT-15-6753 / 2013
• IRB sound insulation test results (Fraunhofer Institut) available on request
• tested in accordance with EN 1366-3
• in accordance with building standards in force in most countries in the European Union
• for mounting directly on a pipe without insulation (in accordance with Polish technical approval AT-15-6753 / 2013)

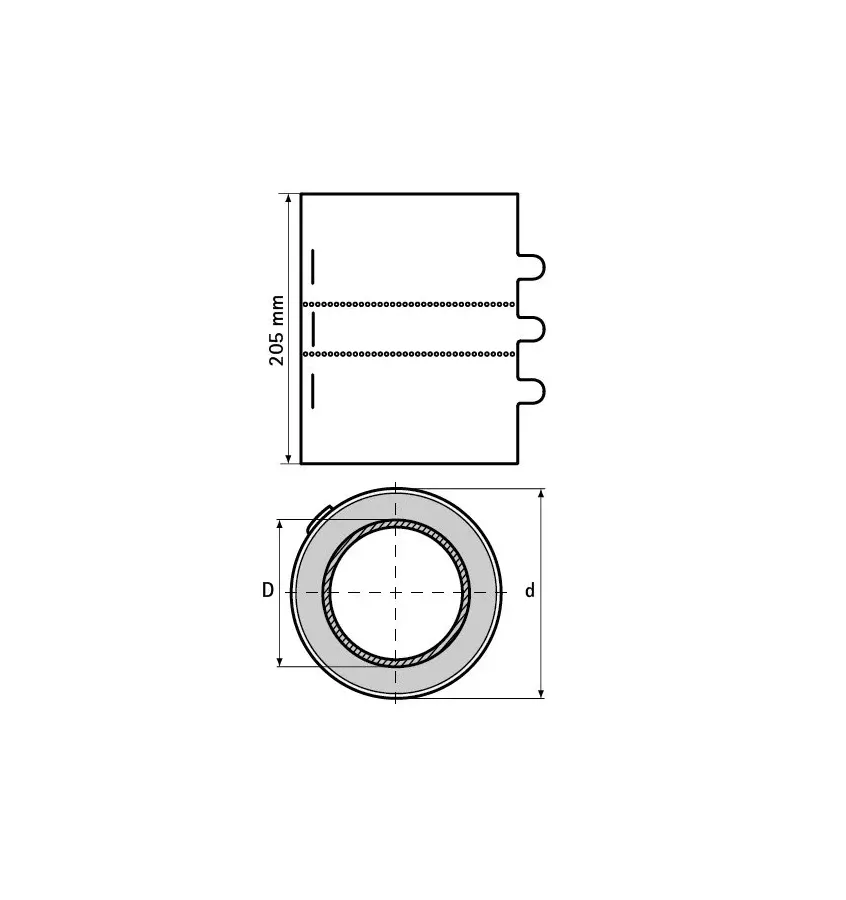

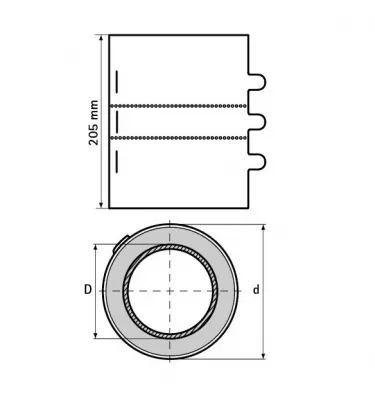

Dimensions and packaging
