Icopal - polyamidový filtr typu Omega

Name: Icopal - polyamidový filtr typu Omega
Brand: Icopal
Price: 92.05 PLN
Availability: InStock

Average grade: 0 / 0 reviews

The filter is made of a plastic called Itamid 35. The structure of the filter allows for the assembly of its components and for embedding and stabilizing the entire filter in the concrete platform slab, as well as self-clamping connection of the filter tube with the outlet tube and gluing these elements with epoxy resin. A drain suitable for drainage of waterproofing concrete decks of all types of bridge structures. It can be used both in the case of renovation or modernization of the platform drainage system on the old bridge structure, as well as for the construction of new deck plates.

Save amount -

92,05 zł 92,05 zł

S DPH

Najniższa cena z ostatnich 30 dni: 92,05 zł brutto. (74,84 zł)

On product inquiry

cennikowa cena jednostkowa netto

83,43 zł

za szt

cennikowa cena jednostkowa brutto

102,62 zł

za szt

promocyjna cena jednostkowa netto

za szt

promocyjna cena jednostkowa brutto

za szt

całkowita cena cennikowa netto

83,43 zł

za 1 szt

całkowita cena cennikowa brutto

102,62 zł

za 1 szt

całkowita cena cennikowa netto

za 1 szt

całkowita cena cennikowa brutto

za 1 szt

Products description

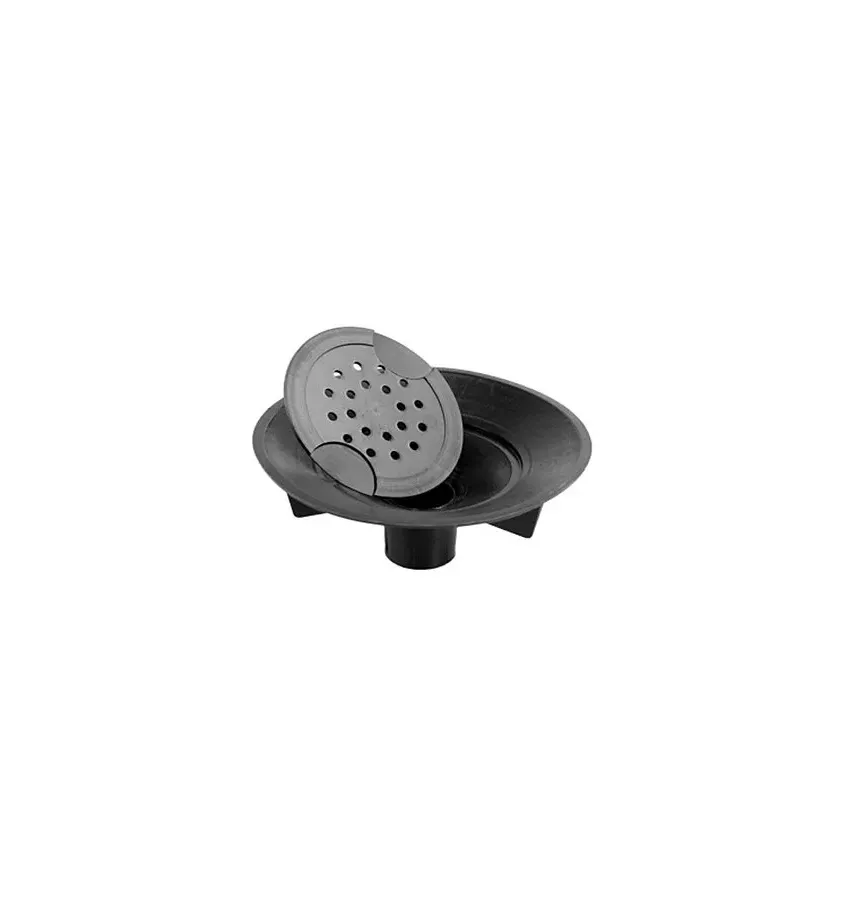

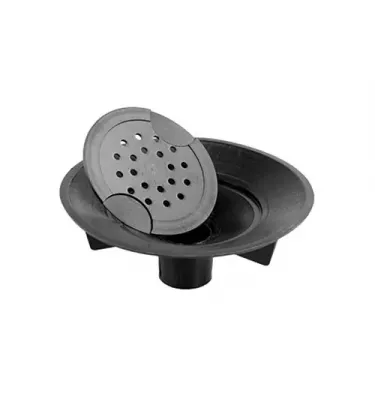

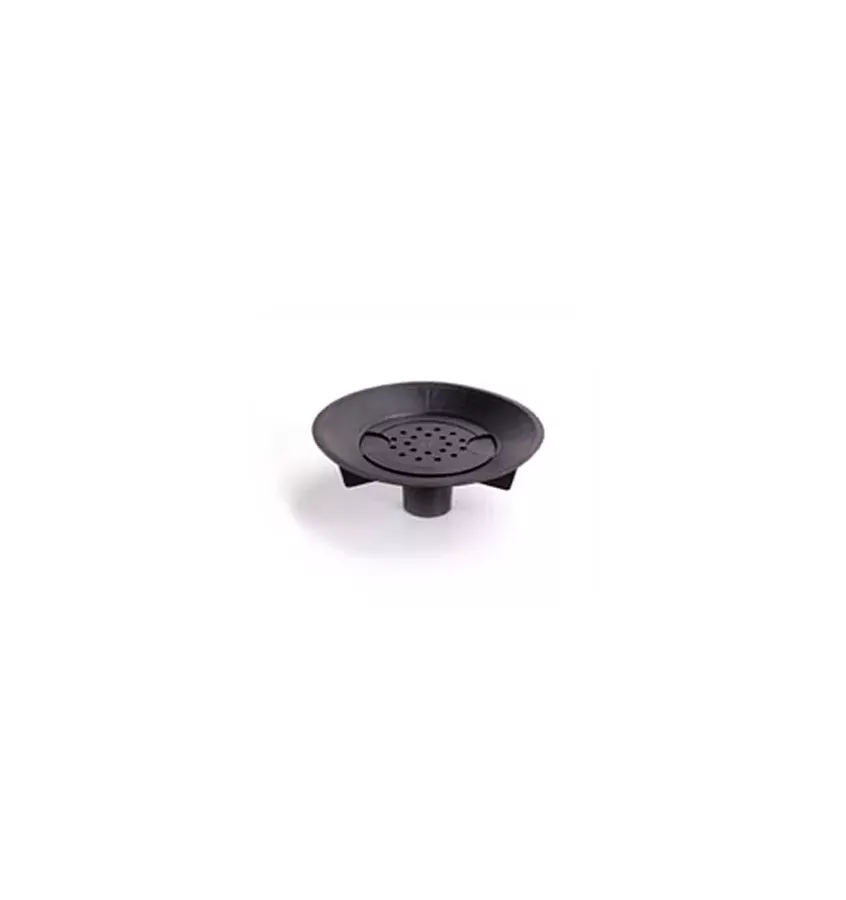

A polyamide filter used to drain the waterproofing of a bridge deck into a bridge structure. It can be used for making new deck plates, but also for renovation or modernization of the deck drainage system on an old bridge structure. The polyamide material used in the production of the filter is resistant to long-term contact with bitumen and to temperatures up to 230 C (503 K), thanks to which it is possible to place and compact hot mineral-bituminous mixtures directly on it. The structure of the filter enables its elements to be installed in its components and the whole filter can be embedded and stabilized in the concrete platform slab.

Building

thin-walled outflow funnel in the shape of a truncated cone, with three stabilizing wings
a flat sieve made of the same material, clamped in the outflow funnel
an outflow pipe with an internal diameter of 48 mm made of PVC or other plastic / stainless steel, the length of which depends on the design of the platform plate (not included in the offered set)
